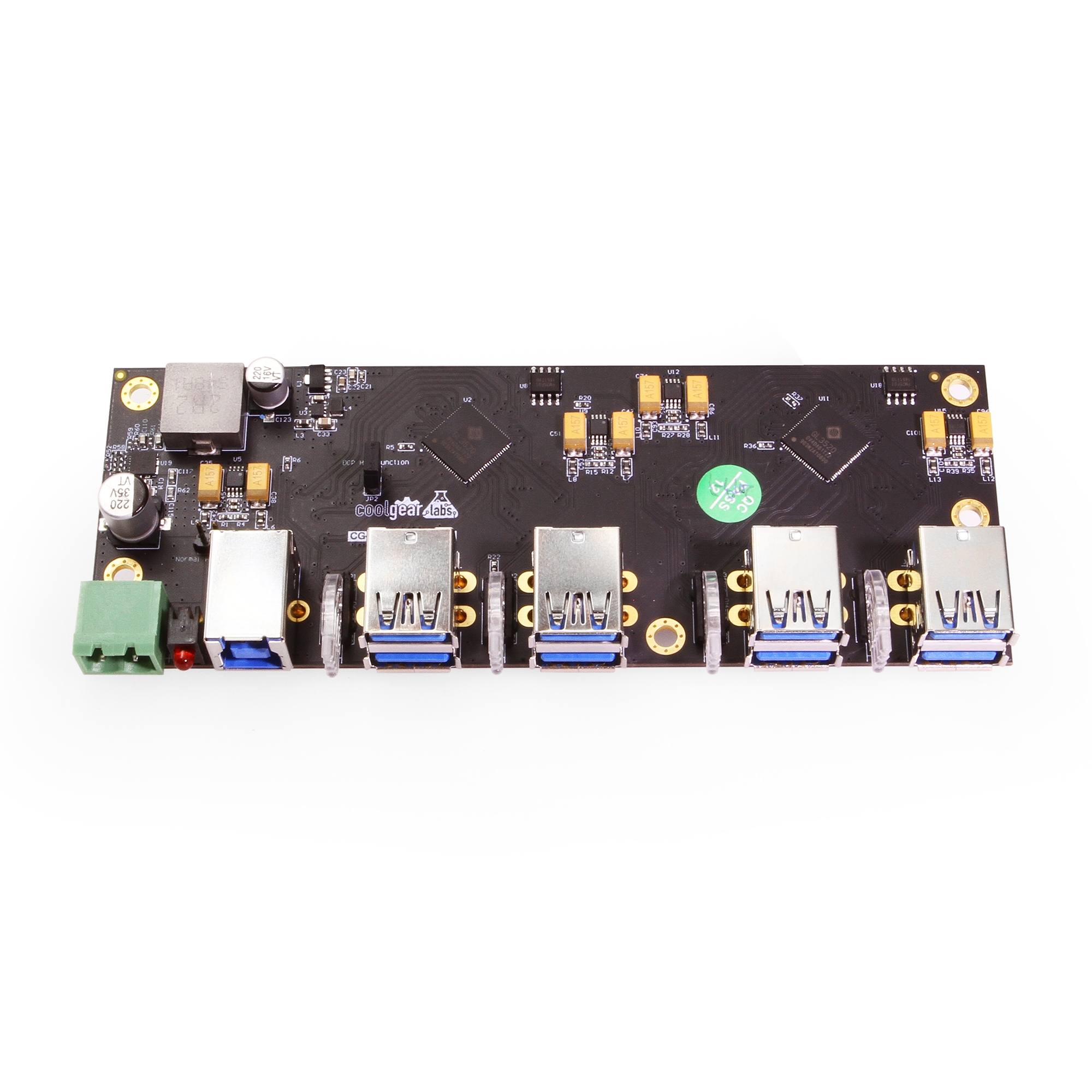

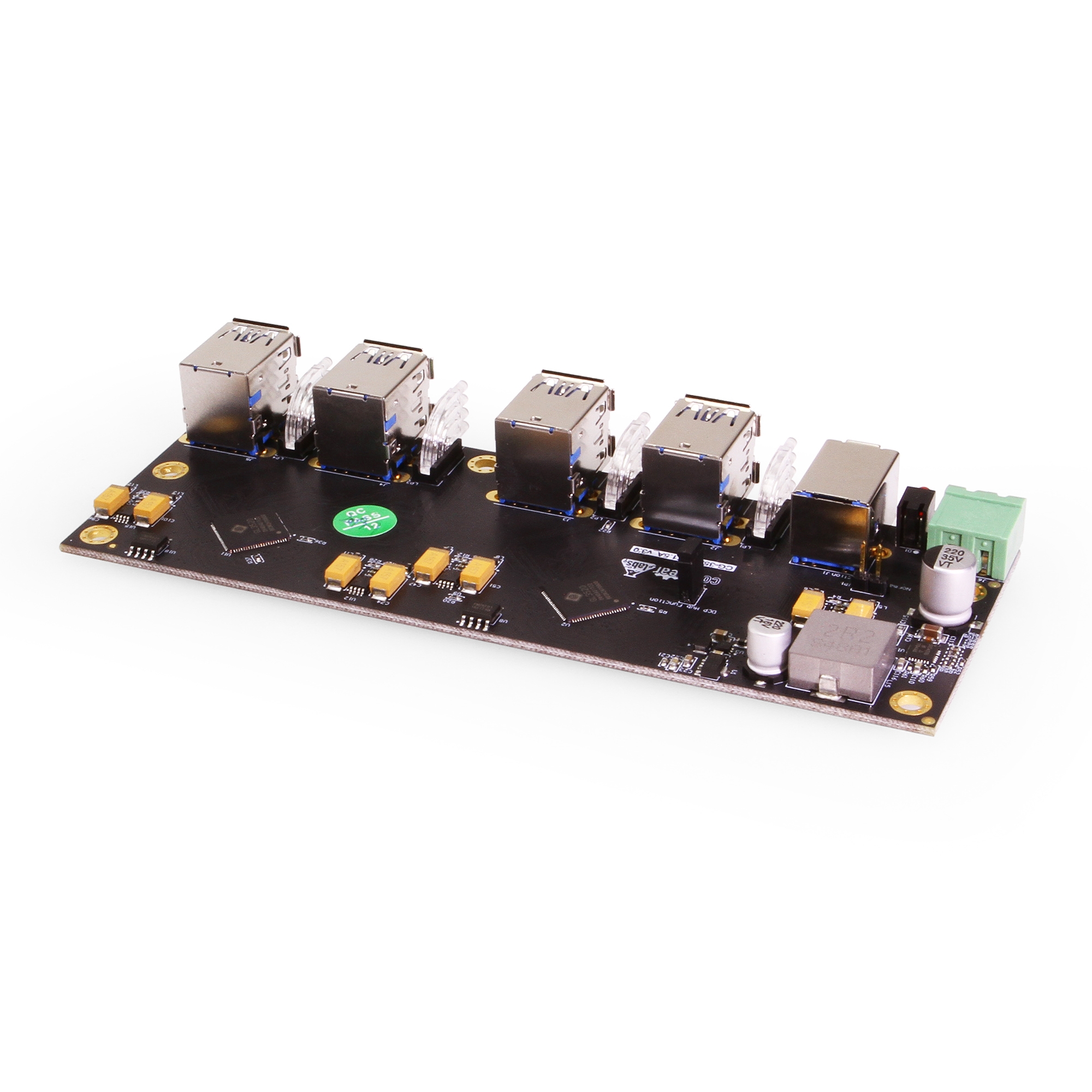

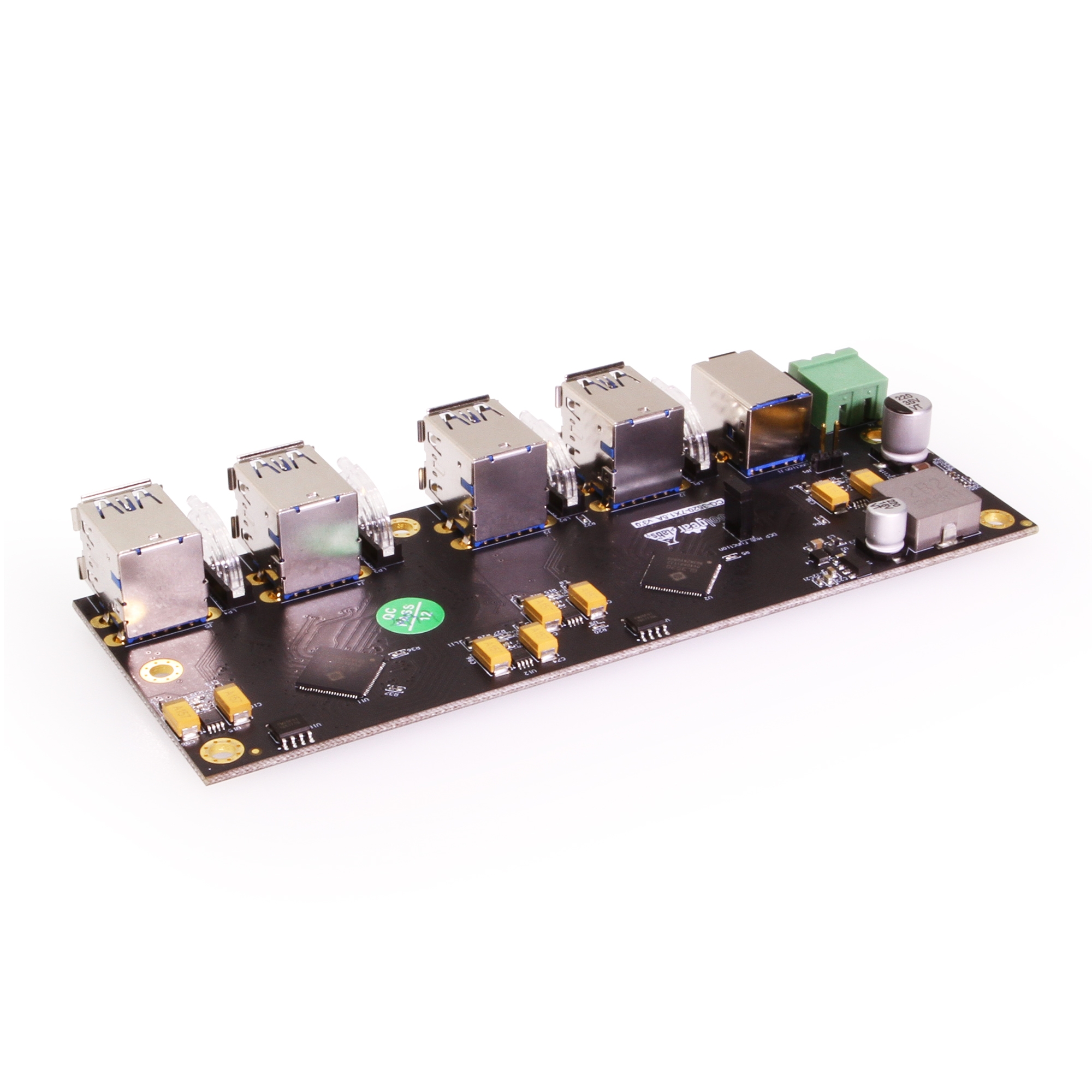

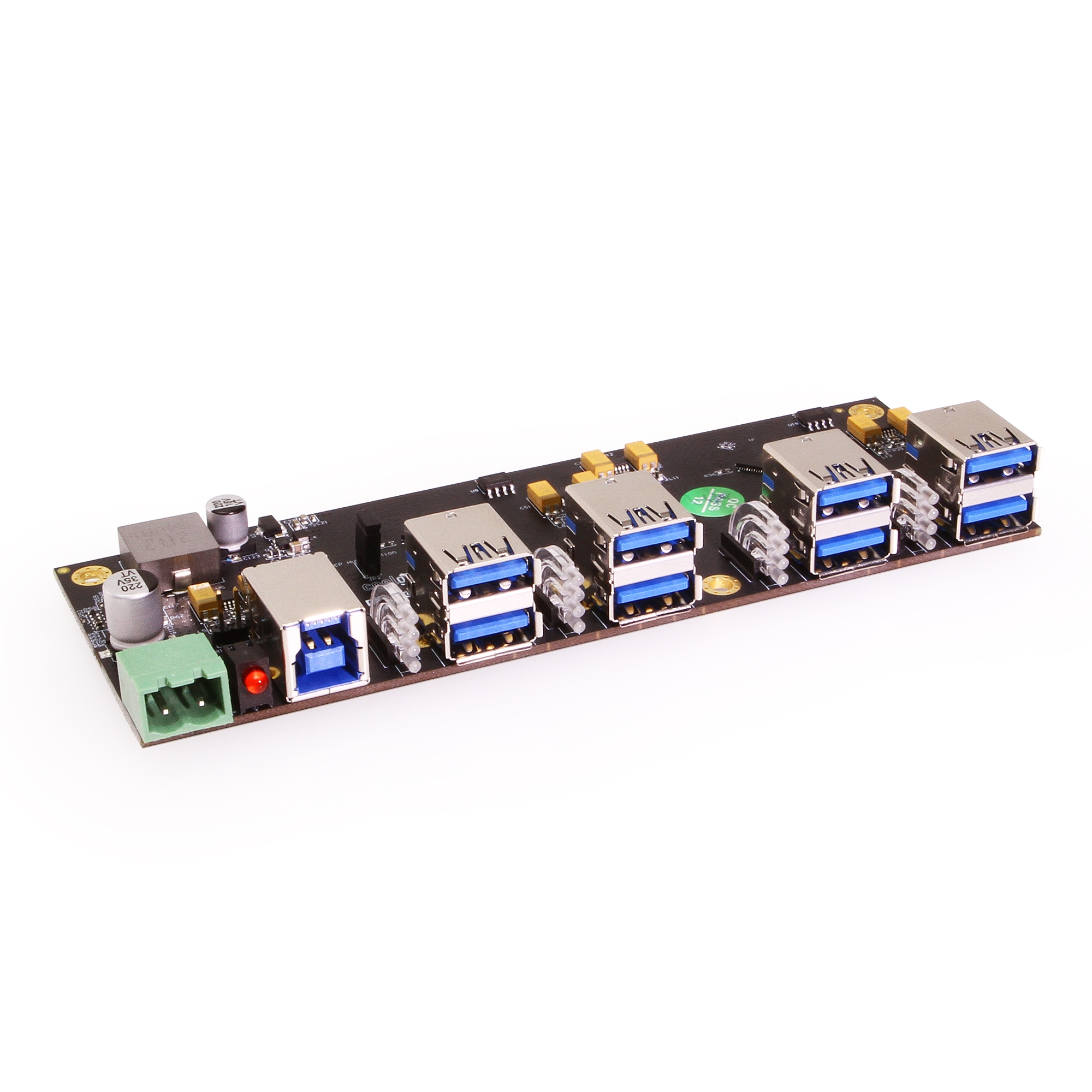

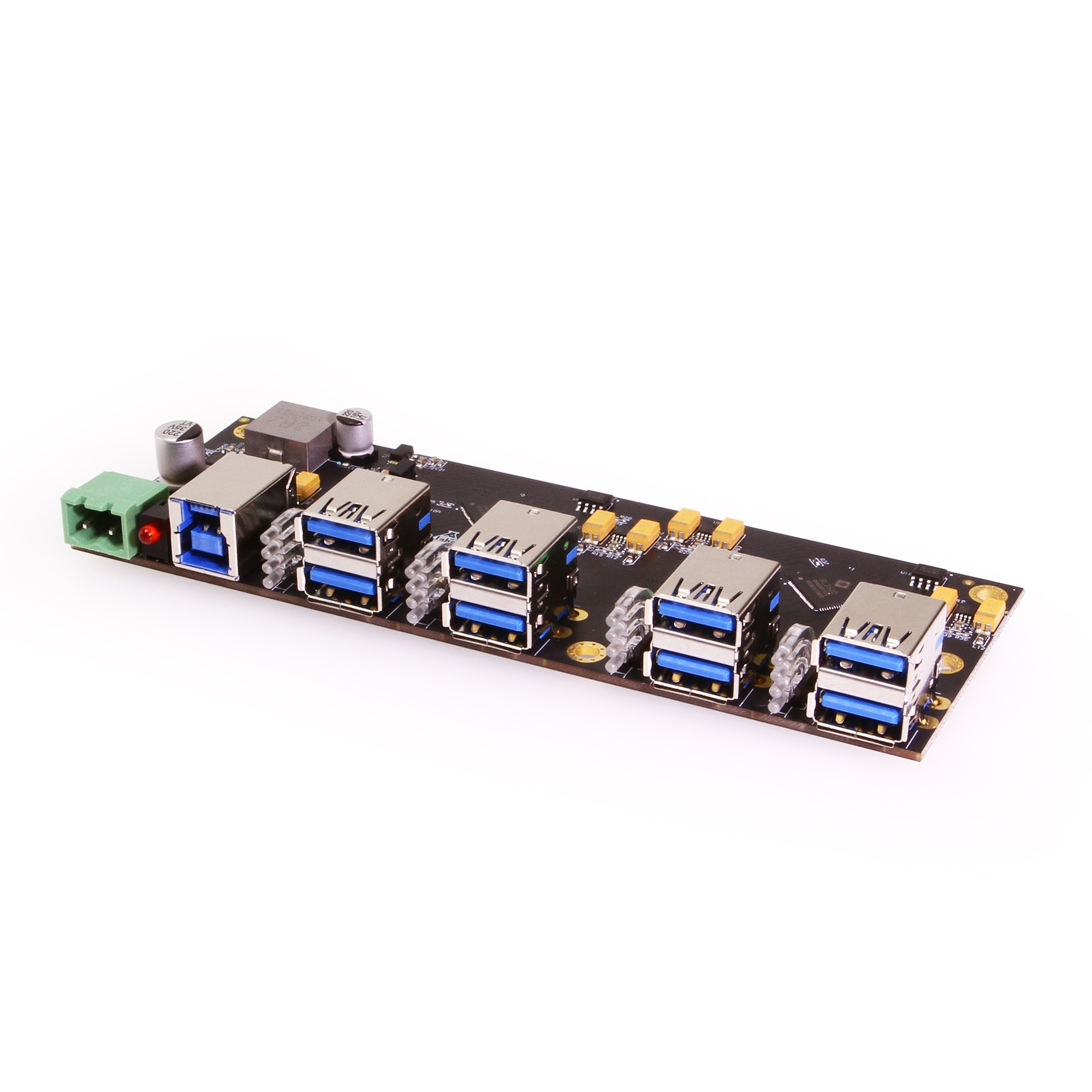

CG Labs 7 Port USB hub + 1 Charging Port Board
Part # CG-3520-7x1.5A
$75.89
Status: Not in stock - Backorder Allowed
Volume Pricing
Qty: 1+
$75.89
Qty: 6+
$74.75
Qty: 12+
$74.18
Qty: 24+
$73.23
Qty: 48+
$72.66
Qty: 99+
$71.34
Coolgear Labs 7 Port USB 3.0 Hub + 1 Dedicated Charging Port
Product Documentation & Drivers
CG Labs 7 Port USB hub + 1 Charging Port Board
Part # CG-3520-7x1.5A
Volume Pricing
Qty: 1+
$75.89
Qty: 6+
$74.75
Qty: 12+
$74.18
Qty: 24+
$73.23
Qty: 48+
$72.66
Qty: 99+
$71.34
Documentation
Specifications:
- Supports Systems with USB 3.0, USB 2.0 or USB 1.1 Ports
- Provides 7 USB 3.0 downstream ports which manage up to 5Gbps: + 1 dedicated Charging Port (8 Ports Total)
- 7 Downstream Type-A ports support Super-speed, High-speed, Full-speed and Low-speed traffic
- 1 Dedicated charging Type-A port for high power charging (no data transfer supported on this port)
- 1 Upstream Type-B port for Super-speed, High-speed, Full-speed traffic and Low-speed
- Transfer rates supported 5Gbps, 480Mbps and 12Mbps speed
- Supports Self-powered Mode ( DC power source required )
- Supports up to 900mA USB Bus Power for Each Down-stream Port in standard charging mode
- Supports Downstream Port Status with LED
- High power charging mode supported
- Supports keyboard, mouse, monitor, cell phone, tablet, scanner, printer, camera, optical drive, memory sticks, external hard drive, joystick, vr headset, modem, PBX and many more.
- Windows 2000, 2003, CE, Vista, Windows 7, and Windows 8, 10
- Linux and Mac OS 10.x
- Supports 7 external USB 3.0 Type-A connectors and 1 Type-B Upstream connector
- Supports 1 external USB 3.0 Type-A dedicated USB charging port for high power devices
- Supports 1 2-pin Phoenix connector Terminal Block for external power input.
- Operating Temp: 0 to 55°C (32 to 131°F)
- Operating Humidity: 5 to 95% RH
- GL3520
- 7~28V DC input
- 5V *2amp per port
- 142.1 x 52.71 x 16.1mm (LxWxH)
- CG-3520-7x1.5A 7 port USB Hub board
- 2 pin Phoenix connector
Sometimes you need a product in a flash and just want to verify an item is in stock. Other times you have a specific question regarding a product, shipping method, or your order. Use the form below and we will help. Please refrain from spam, we only log this information to our database for 24-hours and then it's gone.
Specifications
| Manufacturer: | Coolgear | Warranty: | 1 Year | Availability: | |
| Barcode: | 045079161429 | Ship Weight: | 0.38 | Condition: | New |
| Part Number: | CG-3520-7x1.5A | Color: | Black | Length/Size: | -- |
| USB Spec: | USB 3.2 Gen 1 | Max Data Rate: | 5 Gbps | Input Voltage: | 7 ~ 28V DC |
| Upstream Port: | USB 3.2G1 / 3.0 Type-B Female | Downstream Port(s): | 7x Type A USB 3.2 G1 / 3.0 | Screw Lock Compatible: |
No |
Specifications
| Manufacturer: | Coolgear |
| Barcode: | 045079161429 |
| Part Number: | CG-3520-7x1.5A |
| Warranty: | 1 Year |
| Ship Weight: | 0.38 |
| Color: | Black |
| Availability: | |
| Condition: | New |
| USB Spec: | USB 3.2 Gen 1 |
| Max Data Rate: | 5 Gbps |
| Input Voltage: | 7 ~ 28V DC |
| Upstream Port: | USB 3.2G1 / 3.0 Type-B Female |
| Downstream Port(s): | 7x Type A USB 3.2 G1 / 3.0 |
| Screw Lock Compatible: |
No |
