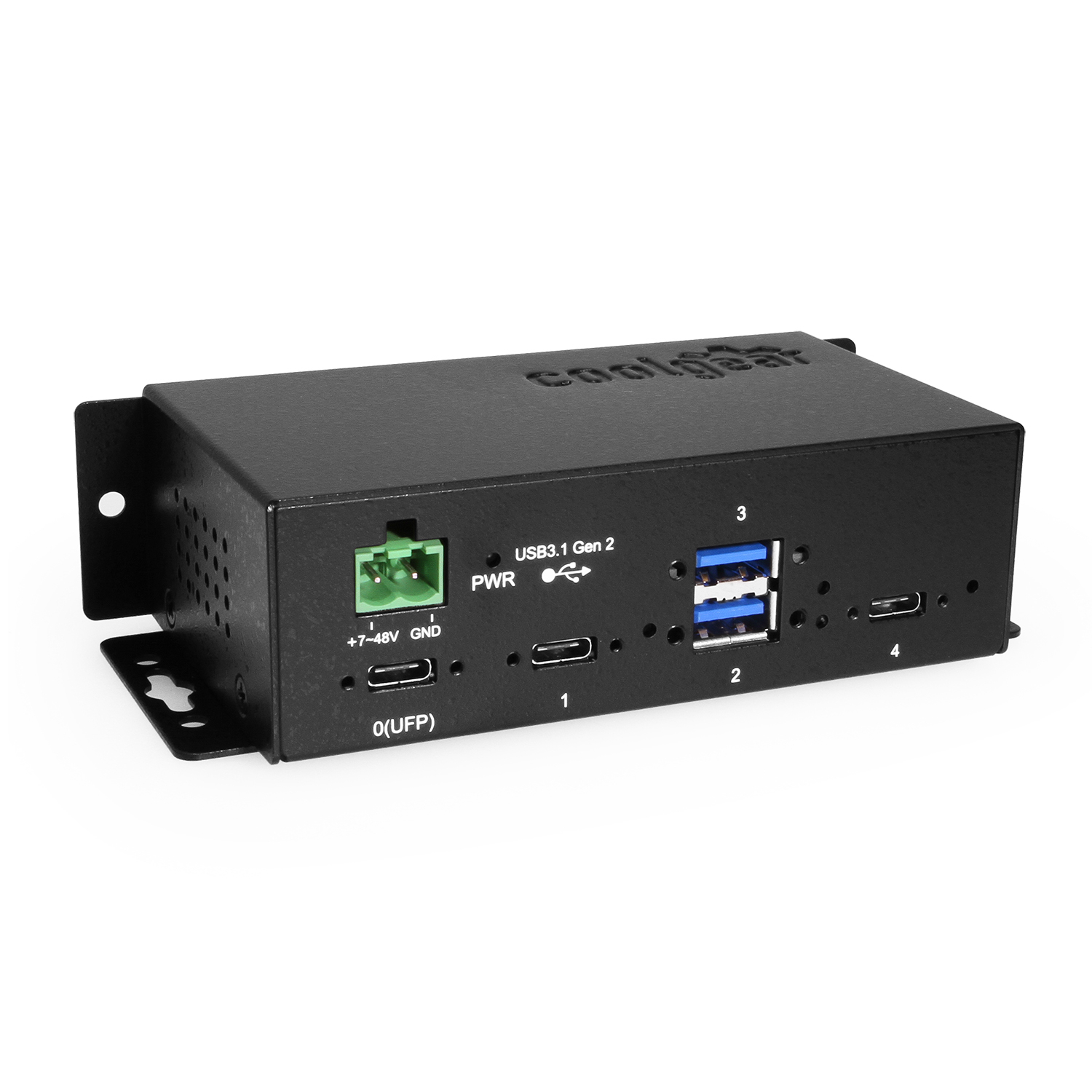

4 Port Industrial USB 3.2 Gen 2 Type-C Hub w/ Screw-Locking Ports & Status LEDs

Part # CG-4PG2MHUB

$142.95

Status: Available

Industrial Grade | +7~48V DC Input | Surface Mountable | 10 Gbps | Screw Lock

Super Fast Speeds: This USB hub is 3.2 Gen 2 compliant, ensuring super-fast 10Gbps data transfer speeds. It supports super speed +, high speed and full speed which enables it to be compatible with USB 3.2 Gen 1 / 2.0 / 1.1.
Superior Build Quality: Housed in a rugged steel chassis with built in mountable flanges, the 4-port hub is perfect for workstations installations in offices, labs, warehouses, and other industrial applications.
Check Your Ports’ Status: Quickly check the status of each port individually with built in LED indicators.

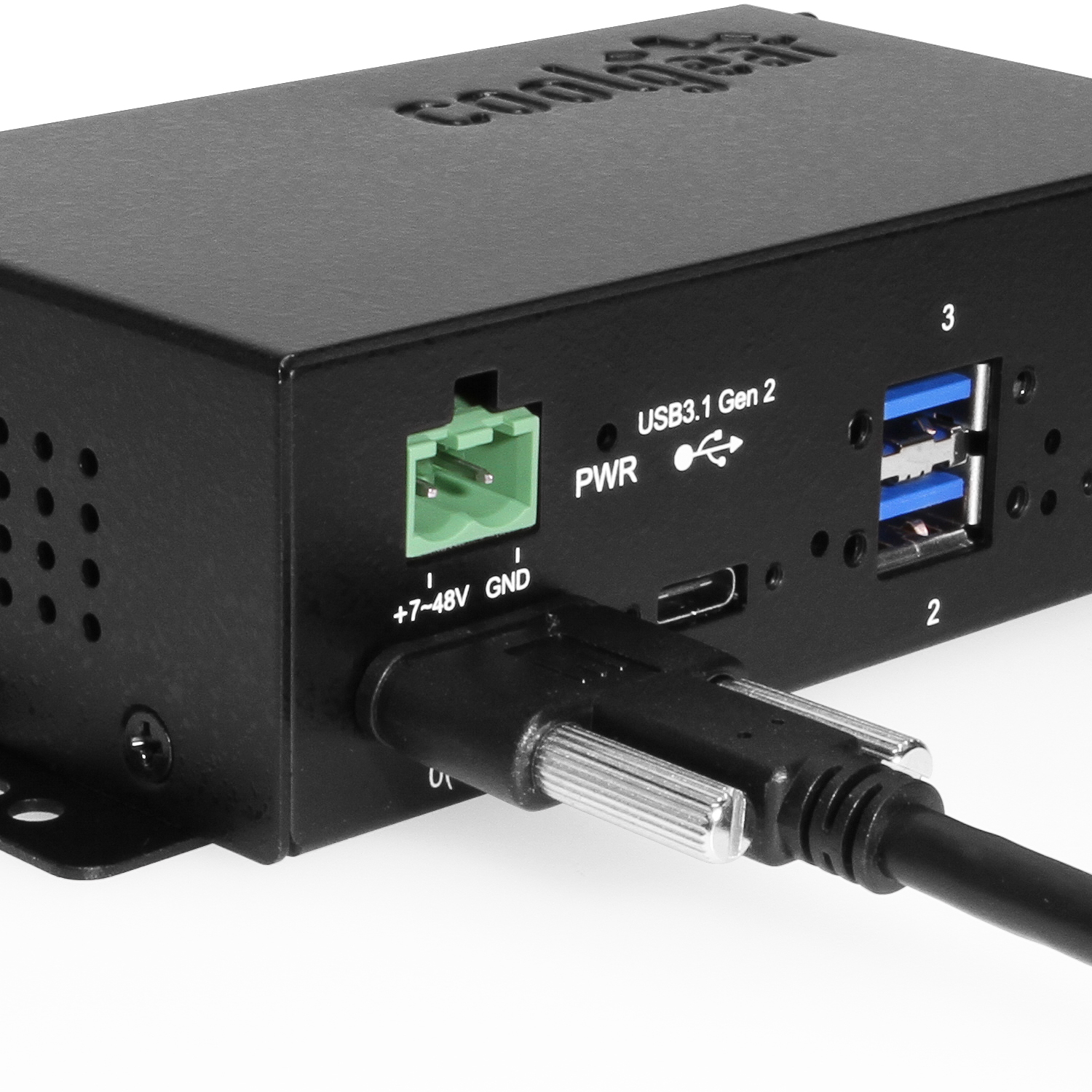

Upstream: 1 USB port, Type C connector, Screw-lock type
Downstream: 2 USB ports, Type C connectors, Screw-lock type & 2 USB ports, Type A connectors, Screw-lock type

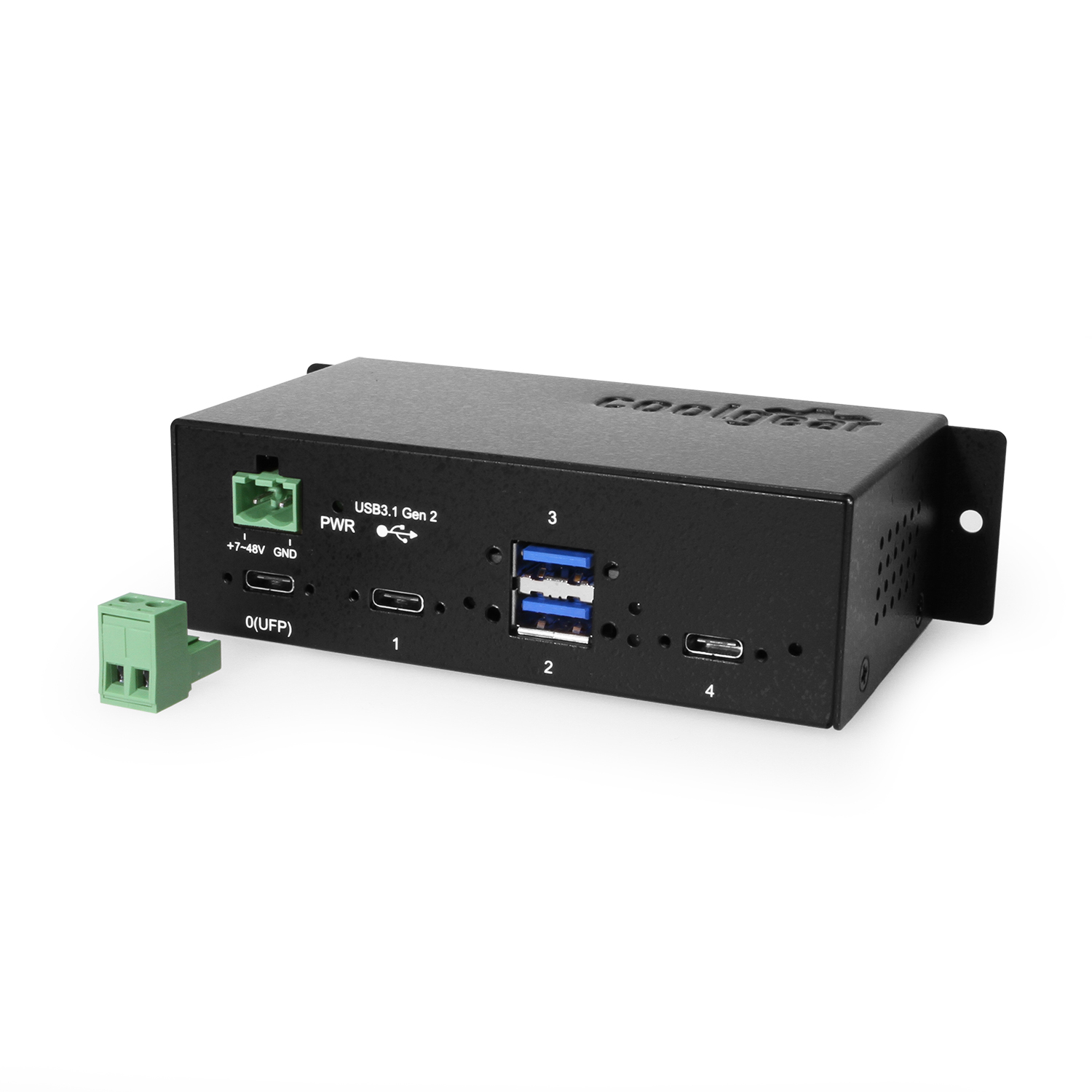

Power Connector: 2-Pin Terminal Block
LED Indicators: 4 LEDs for each downstream port to indicate the current bus

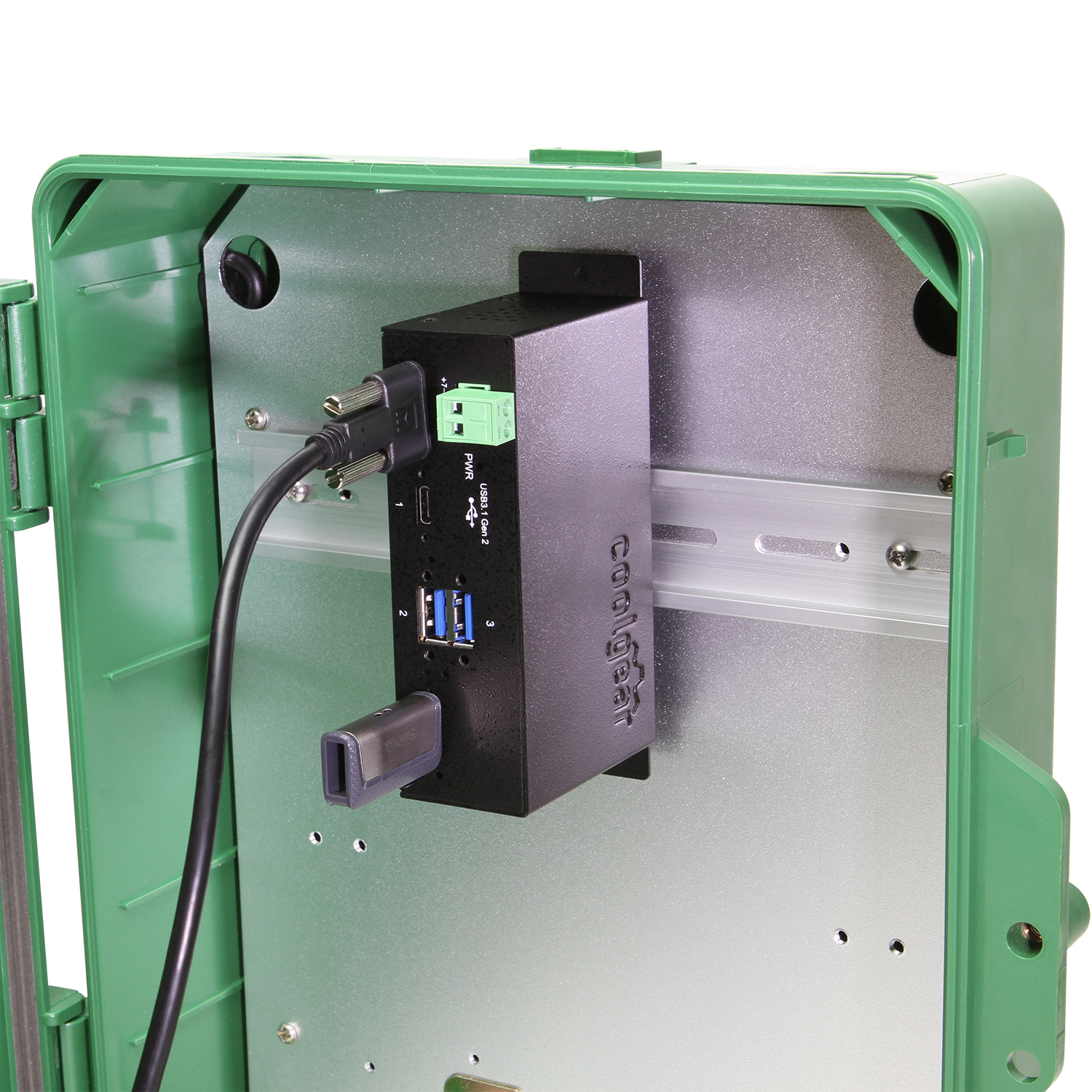

Mounting Options: Wall, Surface, & DIN Rail

Product Documentation & Drivers

4 Port Industrial USB 3.2 Gen 2 Type-C Hub w/ Screw-Locking Ports & Status LEDs

Part # CG-4PG2MHUB

Documentation

Overview Help Support

Introduction:

The Coolgear CG-4PG2MHUB 4 port USB 3.2 Type-C 10Gbps industrial metal hub includes DIN Rail and surface mounting Kit. This hub supports USB 3.2 Super-Speed Plus (10Gbps data transfer) with (2) USB Type-A female and (2) USB female Type-C downstream ports. It uses USB C for upstream data transmission to the computer.

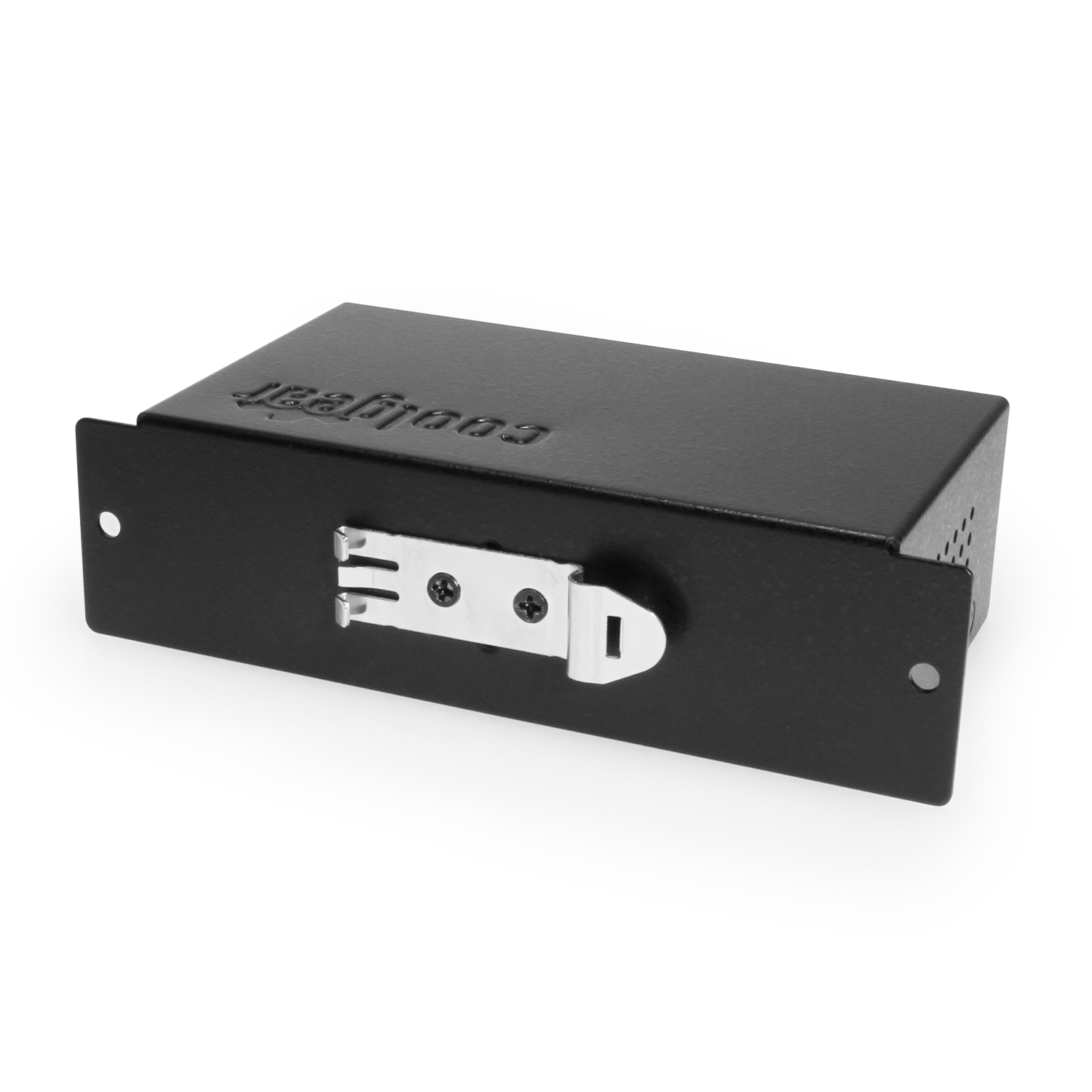

The CG-4PG2MHUB USB 3.2 Type-C hub uses a 2-pin Phoenix connector for input power of +7 - 48V DC for the downstream ports (power supply is sold separately). It is backward compatible with 5Gbps (Super-Speed), 480Mbps(High-Speed), 12Mbps(Full-Speed), and 1.5Mbps(Low-Speed) data rates. The DIN Rail Clip is secured to the back of the hub for Din Rail mounting.

Note: This hub, although it supports battery charging spec1.2, does not have PD (power delivery) functionality.

Features:

Compliant with USB 3.2 Gen2 Specifications.
Rigid wall and DIN Rail mountable metal case.
Provides 4 (2 USB-C female and 2 female USB-A) Downstream facing USB 3.2 Ports.
Supports 10Gbps(Super-Speed Plus), 5Gbps (Super-Speed), 480Mbps(High-Speed), 12Mbps(Full-Speed), and 1.5Mbps(Low-Speed) data rates.
Multi Transaction Translators (TT) per Hub
Support USB Battery Charging: SDP, CDP and DCP modes.
Item Dimensions: 5.23in(L) x 2.42in(W) x 1.43in(H) (133.0 x 61.5 x 36.3mm).

Environmental Specifications

Operating Temp: o to 70°C (32 to 158°F)
Operating Humidity: 5 to 95% RH

LED Status Descriptions

Off = No USB device detected.
Slow Blinking = USB 2.0 mode.
Quick Blinking = USB 3.1 Gen1 mode.
Steady On = USB 3.1 Gen2 mode.

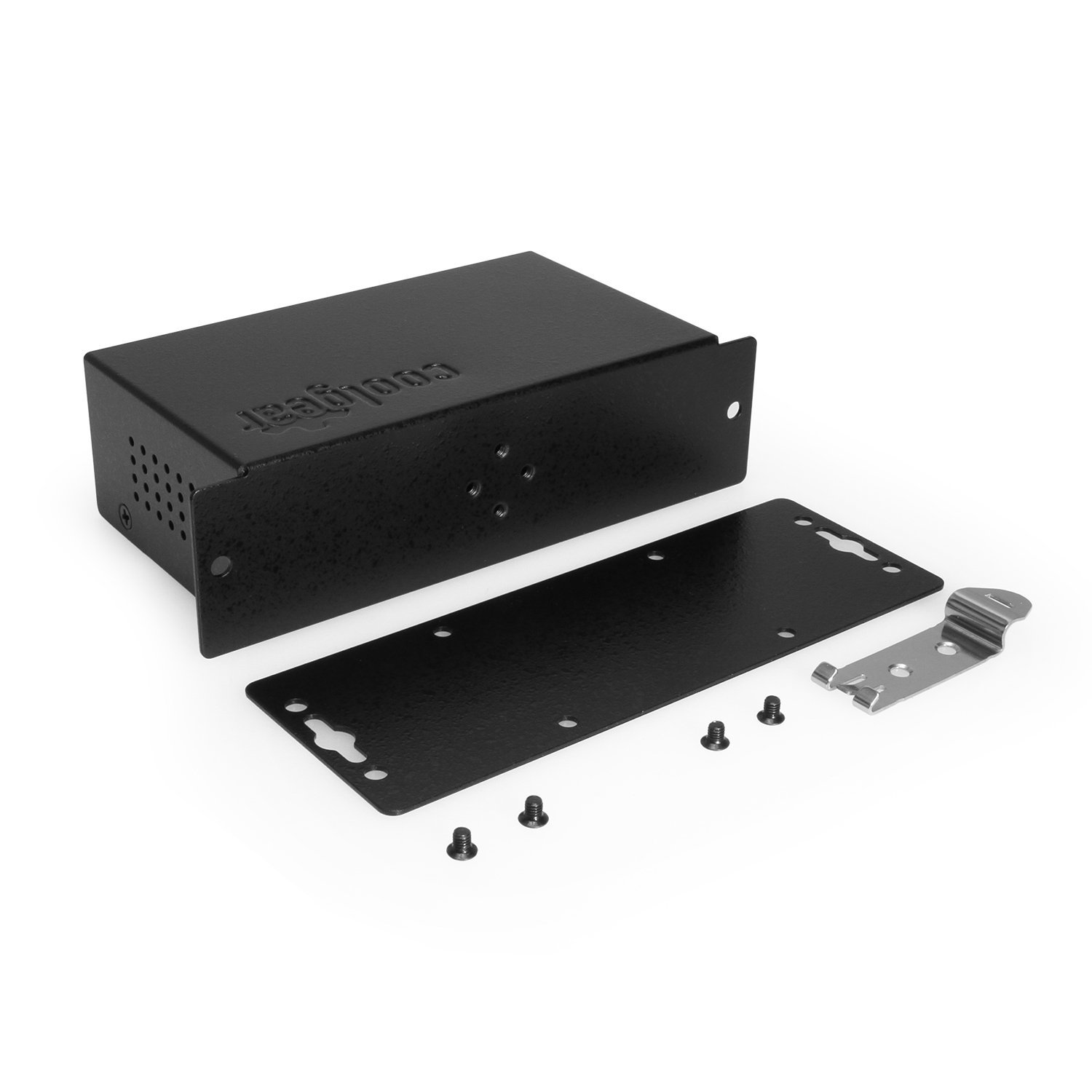

Package Contents:

USB 3.1 Gen2 4 Port Hub
3ft. USB-C Male to Male Gen2 Cable
Wall Mounting Plate w/screws
Din Rail Clip w/screws
Paper installation manual

*Surface Mounting screws not included

Sometimes you need a product in a flash and just want to verify an item is in stock. Other times you have a specific question regarding a product, shipping method, or your order. Use the form below and we will help. Please refrain from spam, we only log this information to our database for 24-hours and then it's gone.

Specifications

Manufacturer:	Coolgear	Warranty:	1 Year	Availability:	Available
Barcode:	045079161016	Ship Weight:	1.16	Condition:	New
Part Number:	CG-4PG2MHUB	Color:	Black	Length/Size:	--
USB Spec:	USB 3.2 Gen 2	Max Data Rate:	10 Gbps	Input Voltage:	7 ~ 48V DC
Upstream Port:	USB 3.2G1 / 3.0 Type-C Female	Downstream Port(s):	2x Type A USB 3.2 G2 2x Type C USB 3.2 G2	Screw Lock Compatible:	Yes

Specifications

Manufacturer:	Coolgear
Barcode:	045079161016
Part Number:	CG-4PG2MHUB
Warranty:	1 Year
Ship Weight:	1.16
Color:	Black
Availability:	Available
Condition:	New
USB Spec:	USB 3.2 Gen 2
Max Data Rate:	10 Gbps
Input Voltage:	7 ~ 48V DC
Upstream Port:	USB 3.2G1 / 3.0 Type-C Female
Downstream Port(s):	2x Type A USB 3.2 G2 2x Type C USB 3.2 G2
Screw Lock Compatible:	Yes
