USB C Hub 4 Port USB 3.1 Gen1 SuperSpeed Type-B Upstream
Status: Low stock, please call or email for status
Volume Pricing
Qty: 1+
$98.99
Qty: 6+
$97.51
Qty: 12+
$96.76
Qty: 24+
$95.53
Qty: 48+
$94.78
Qty: 99+
$93.05
USB C Hub provides USB 3.1 4 ports with 5Gbps data transfer speed and options for wall mounting or DIN Rail mounting. The USB 3.1 hub is compact for industrial environments using USB C connections. Supports normal charging.
Product Documentation & Drivers
USB C Hub 4 Port USB 3.1 Gen1 SuperSpeed Type-B Upstream
Volume Pricing
Qty: 1+
$98.99
Qty: 6+
$97.51
Qty: 12+
$96.76
Qty: 24+
$95.53
Qty: 48+
$94.78
Qty: 99+
$93.05
Documentation

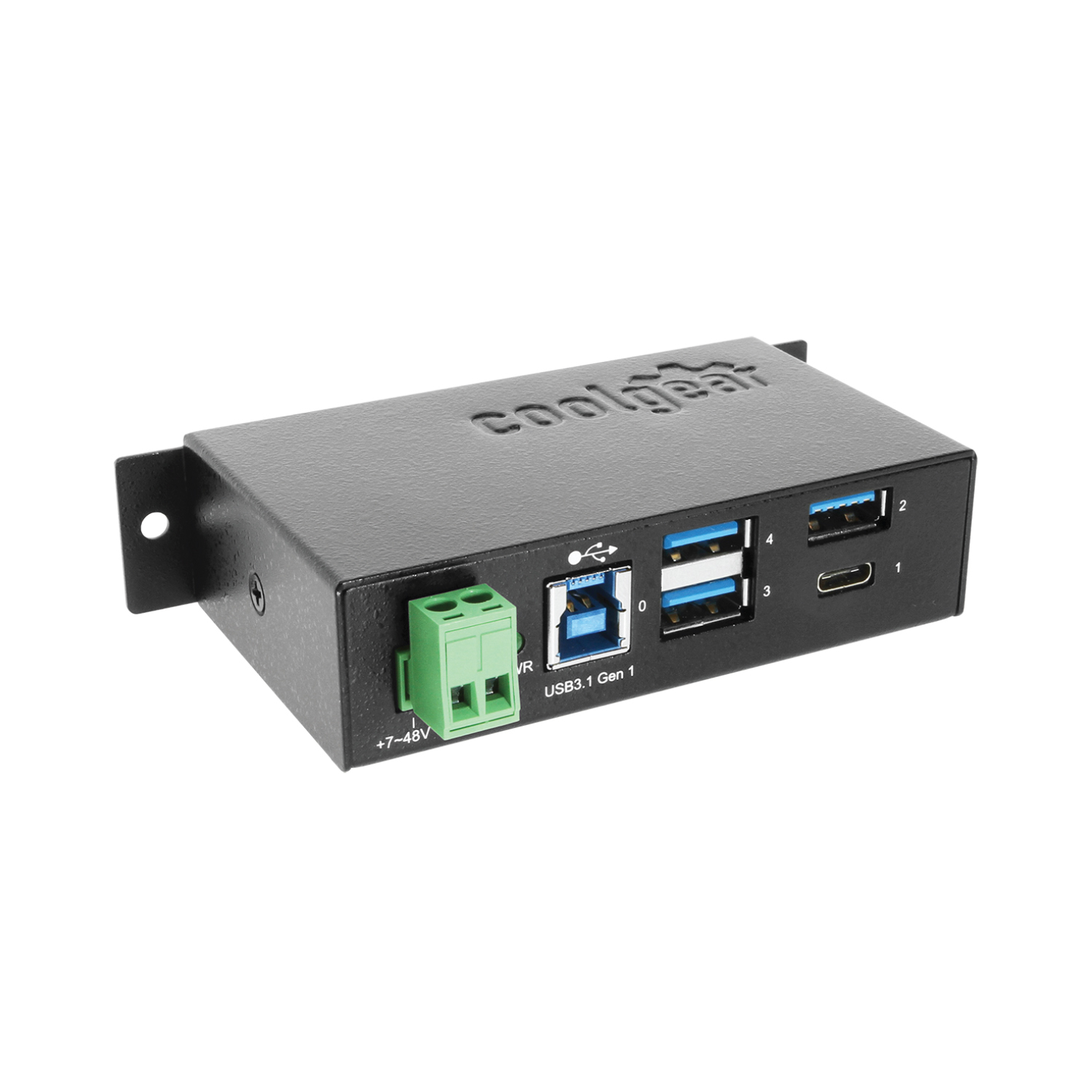

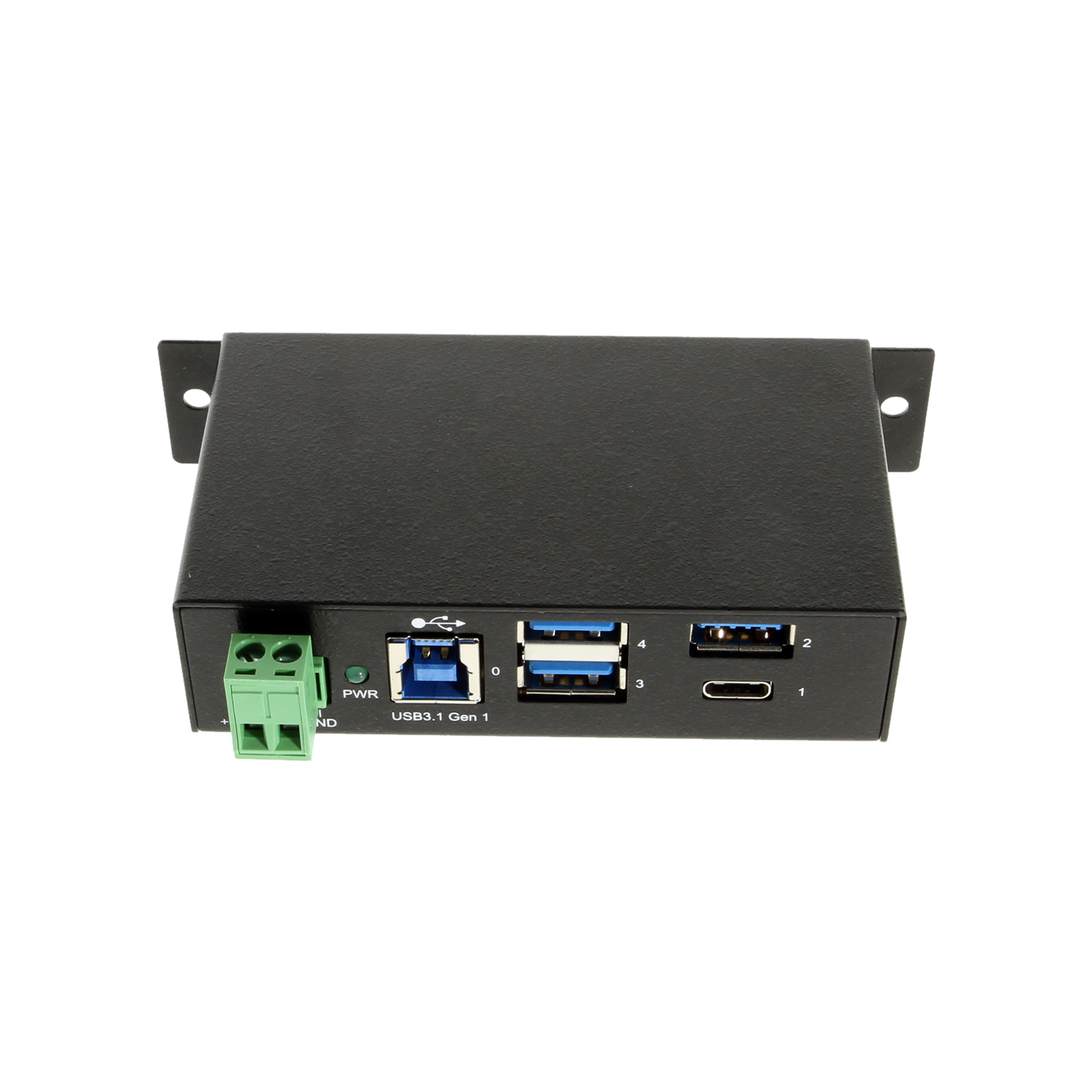

Mini USB C 4 Port Hub with 1 USB C port and Type-B upstream Port
CoolGear's new USB C hub for industrial applications is compact and mountable with 4 downstream ports comprising of (3) USB-A and (1) USB C port.
The USB C hub is a generation 1 hub of USB 3.1 supporting Super-Speed 5Gbps data transmission speeds and the reversible type-C port. This hub is self powered with a 2-pin terminal block connector to supply power input of +7 ~ 48V DC sold separately.
USB C Hub Features
- Compliant with USB 3.1 Gen 1 Specifications

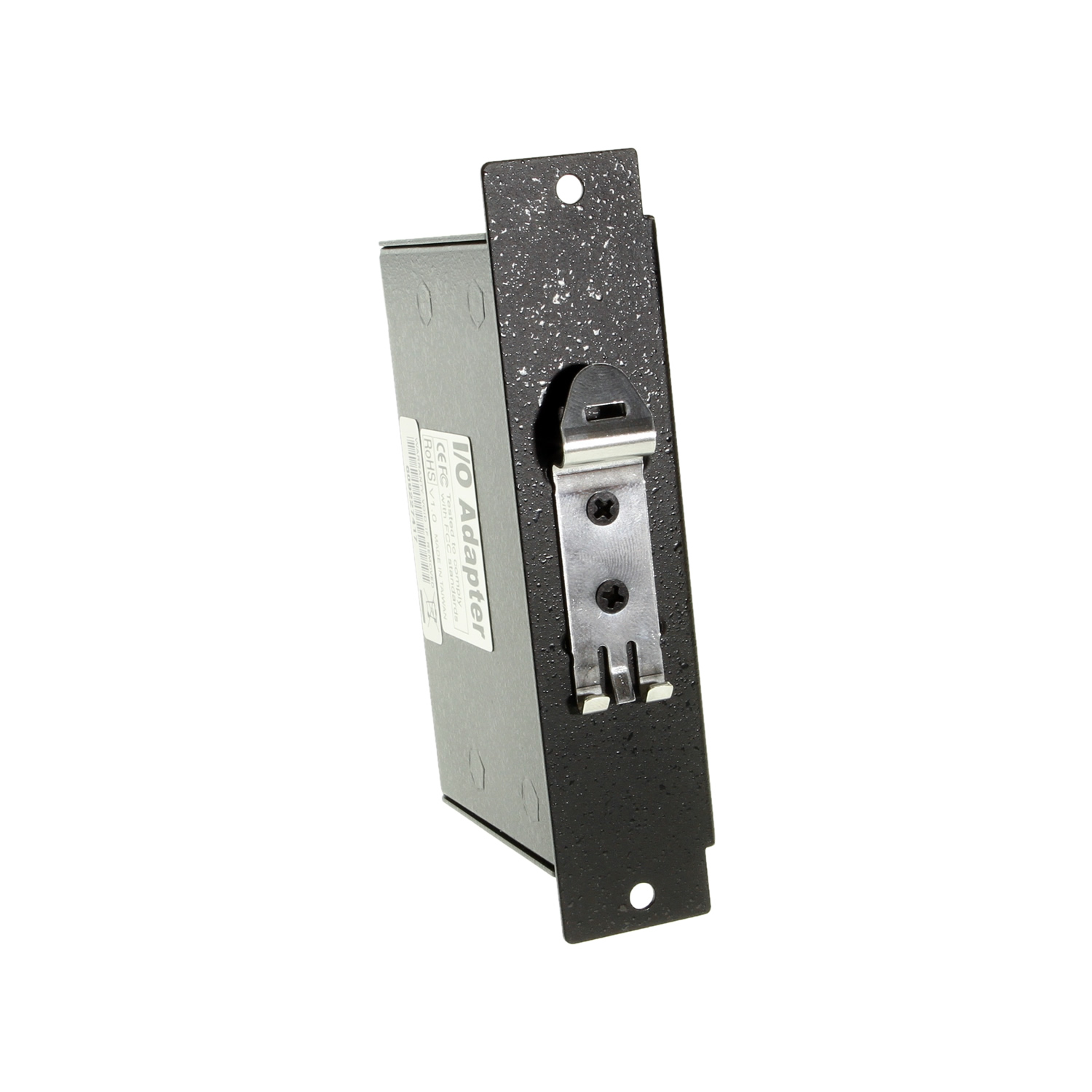

- Ruggedly constructed DIN Rail mountable metal chassis
- Can be wall mounted via attached flange

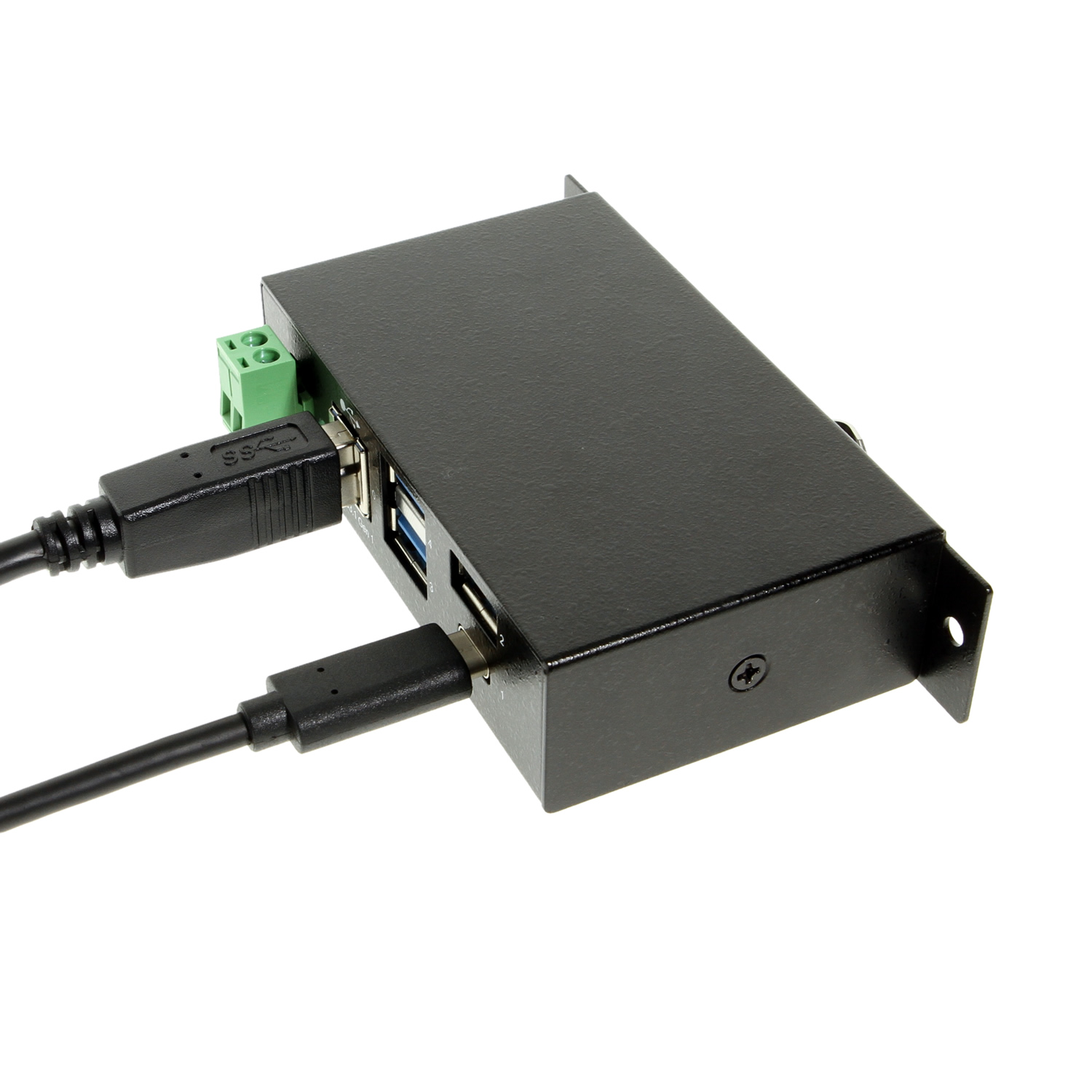

- Provides 4 (1 USB-C and 3 USB-A) downstream facing USB 3.1 ports

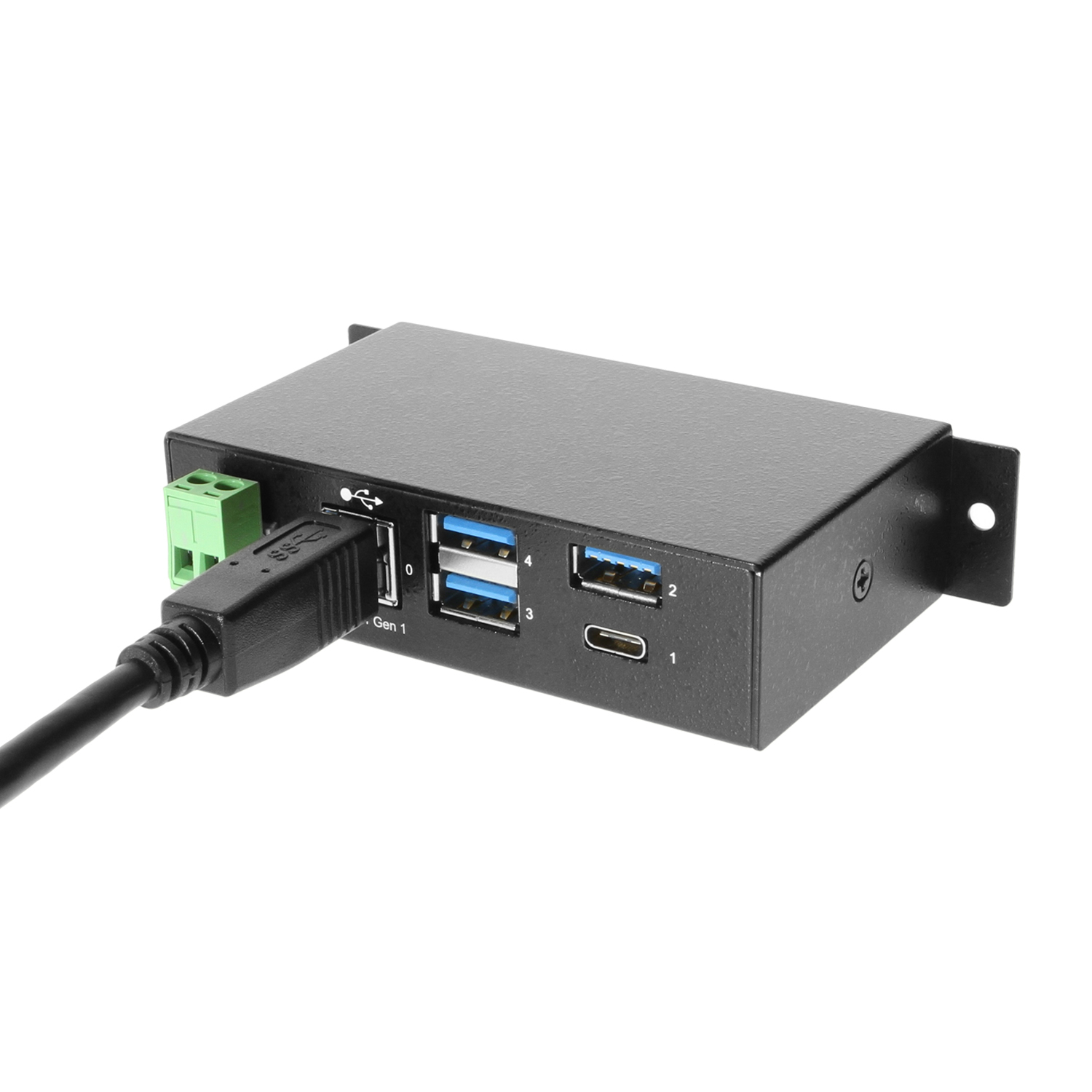

- Uses included USB 3.1 A to B cable for upstream data.
- Supports 5Gbps (super-speed), 480Mbps (High-Speed), 12Mbps (Full-Speed), and 1.5Mbps (low-speed) speeds
- Supports 15KV ESD Surge Protection
- Multi Transaction translators (TT) per hub
- Supports USB battery charging: CDP and DCP modes

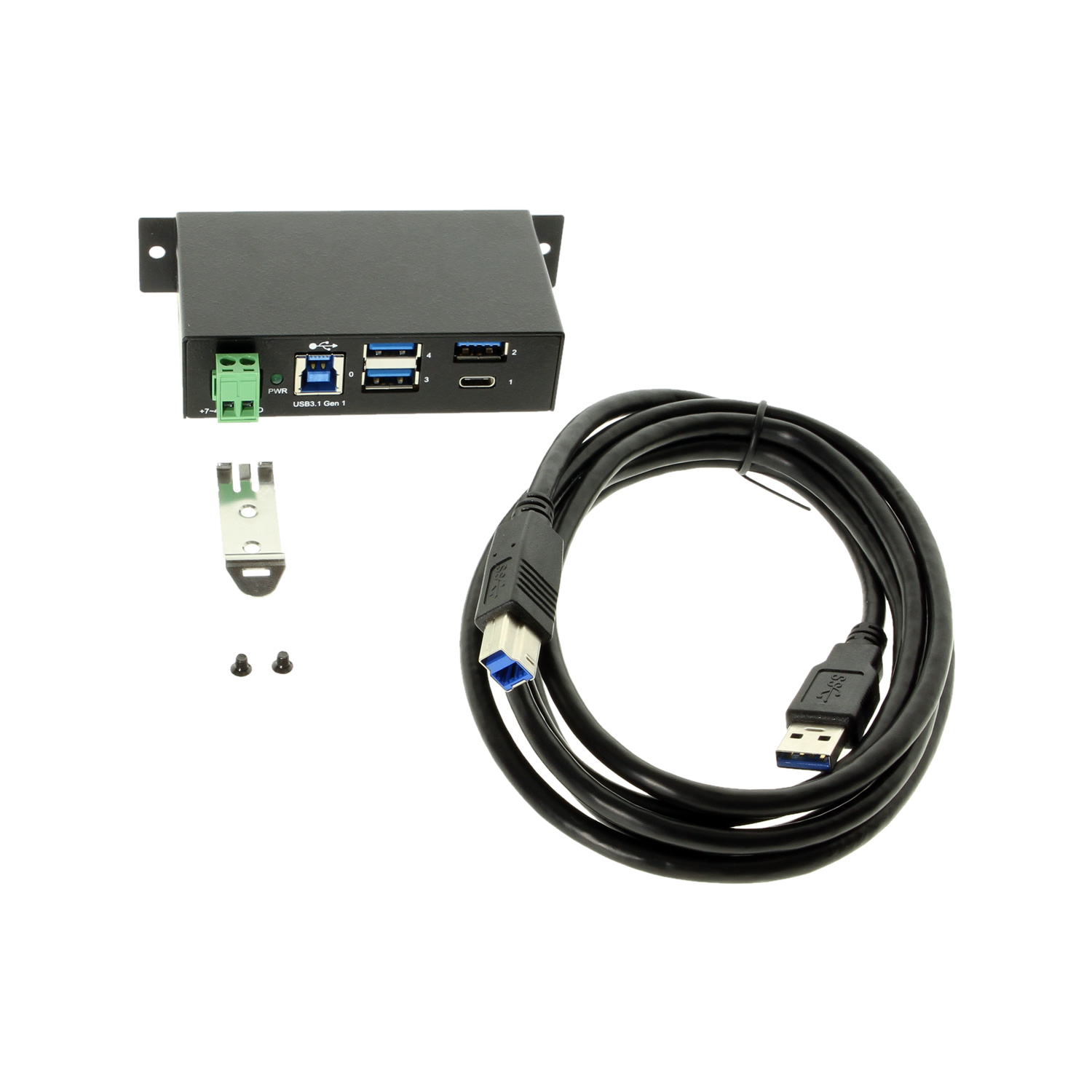

Package Contents
- 1x USB C Gen1 4 port Hub
- 1x 6ft. USB 3.1 A to B cable
- 1x DIN Rail clip and screws
- User manual
*Surface Mounting screws not included.
Sometimes you need a product in a flash and just want to verify an item is in stock. Other times you have a specific question regarding a product, shipping method, or your order. Use the form below and we will help. Please refrain from spam, we only log this information to our database for 24-hours and then it's gone.
Specifications
| Manufacturer: | Coolgear | Warranty: | 1 Year | Availability: | Limited Stock |
| Barcode: | 045079158429 | Ship Weight: | 0.94 | Condition: | New |
| Part Number: | CG-4PU31C1B1 | Color: | Black | Length/Size: | -- |
| USB Spec: | USB 3.2 Gen 1 | Max Data Rate: | 5 Gbps | Input Voltage: | 7 ~ 48V DC |
| Upstream Port: | USB 3.2G1 / 3.0 Type-B Female | Downstream Port(s): | 1x Type C USB 3.2 G1 / 3.0 3x Type A USB 3.2 G1 / 3.0 | Screw Lock Compatible: |
No |
Specifications
| Manufacturer: | Coolgear |
| Barcode: | 045079158429 |
| Part Number: | CG-4PU31C1B1 |
| Warranty: | 1 Year |
| Ship Weight: | 0.94 |
| Color: | Black |
| Availability: | Limited Stock |
| Condition: | New |
| USB Spec: | USB 3.2 Gen 1 |
| Max Data Rate: | 5 Gbps |
| Input Voltage: | 7 ~ 48V DC |
| Upstream Port: | USB 3.2G1 / 3.0 Type-B Female |
| Downstream Port(s): | 1x Type C USB 3.2 G1 / 3.0 3x Type A USB 3.2 G1 / 3.0 |
| Screw Lock Compatible: |
No |
