7 Port USB 3.2 Gen 1 Type-C Hub w/ ESD Surge Protection & USB-C Upstream
Status: Not in stock - Backorder Allowed
Industrial Grade | +7~48V DC Input | Surge Protection | Surface Mountable | DIN Rail | 5 Gbps
- Protect Your Equipment: The 7-port Type-C hub supports 15KV ESD surge protection for each port to keep your connected peripherals safe from harm.
- Super Fast Speeds: This USB hub is 3.2 Gen 1 compliant, ensuring super-fast 5Gbps data transfer speeds. It supports super speed, high speed and full speed which enables it to be compatible with USB 2.0 / 1.1.
- Superior Build Quality: Housed in a rugged steel chassis with built in mountable flanges, the 7-port hub is perfect for workstations installations in offices, labs, warehouses, and other industrial applications.
- Upstream: 1 USB-C port
- Downstream: 5 USB-A connectors, 2 USB-C port
- Power Connector: 2-Pin Terminal Block

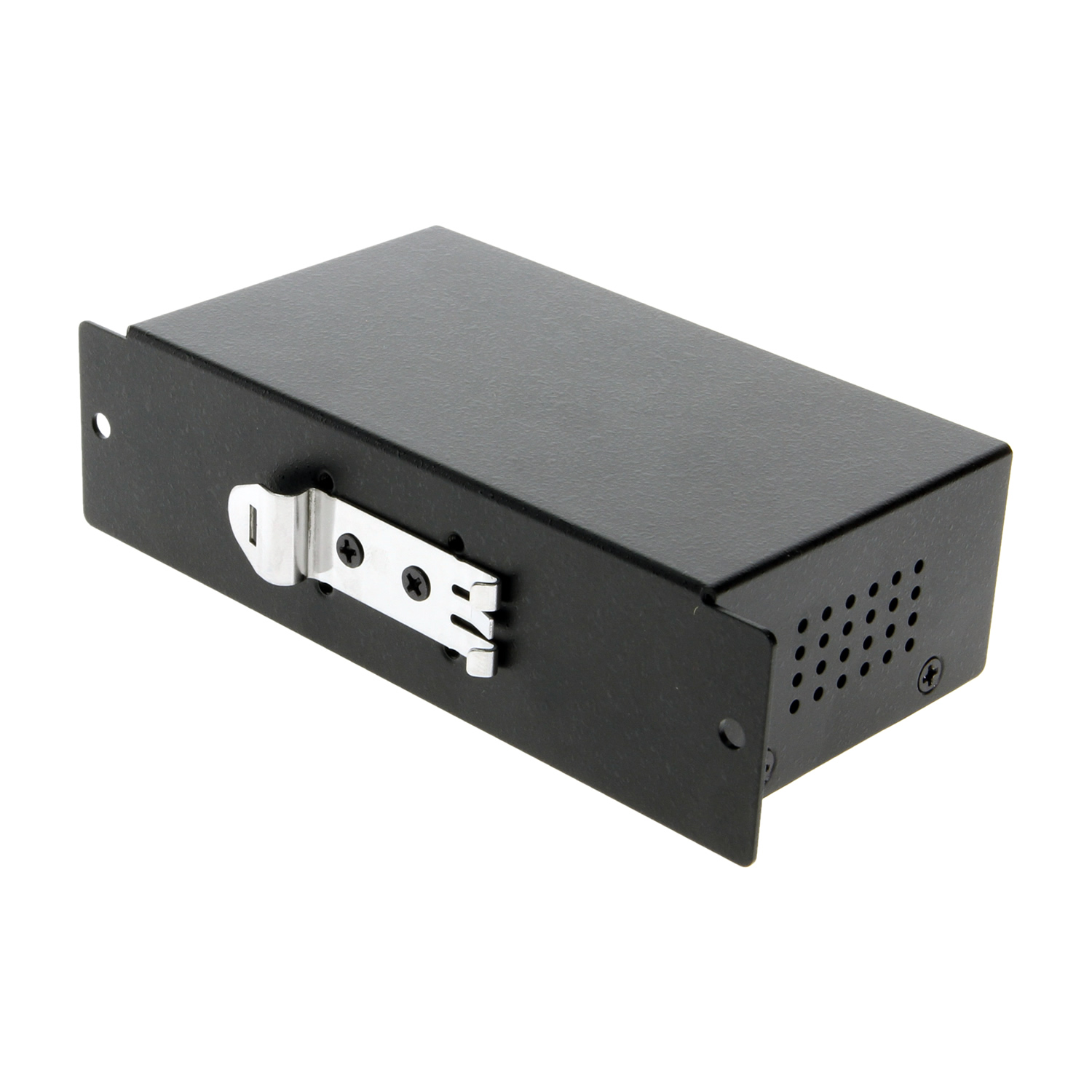

- Mounting Options: Wall, Surface, & DIN Rail
Product Documentation & Drivers
7 Port USB 3.2 Gen 1 Type-C Hub w/ ESD Surge Protection & USB-C Upstream
Documentation
Introduction:
CoolGear's new USB-C 7 Port Hub that is USB 3.2 Gen 1 specifications compliant, includes a metal constructed chassis and multiple mounting options. This USB-C Hub is an excellent choice for your USB 3.2 Gen 1 applications, it delivers up to 5Gbps and provides 1 USB-C Upstream port, 2 USB-C, and 5 USB-A downstream ports.
The USB-C hub is backward compatible with USB 2.0/1.1 compliant host using its RISC-like USB controller. It provides a unique self-power mode to work with wide range (+7 ~ 48V DC) input DC power from its terminal block (power adapter sold separately). It supports fast USB charging specifications by turning its downstream ports from a Standard Downstream Port (SDP) into Charging Downstream Port (CDP) or Dedicated Charging Ports (DCP).
Features & Specifications:
- Compliant with USB 3.2 Gen 1 Specifications
- Provides 1 USB 3.2 Gen 1 Upstream Port with USB-C connector
- Provides 7 USB 3.2 Gen 1 Downstream Facing Ports (with 2 USB-C and 5 USB-A Connectors) which manage up to 5Gbps
- Full-Featured USB-C Port Enables Reversible Plug Orientation and Cable Direction
- Supports 5Gbps, 480Mbps, 12Mbps and 1.5Mbps Speed

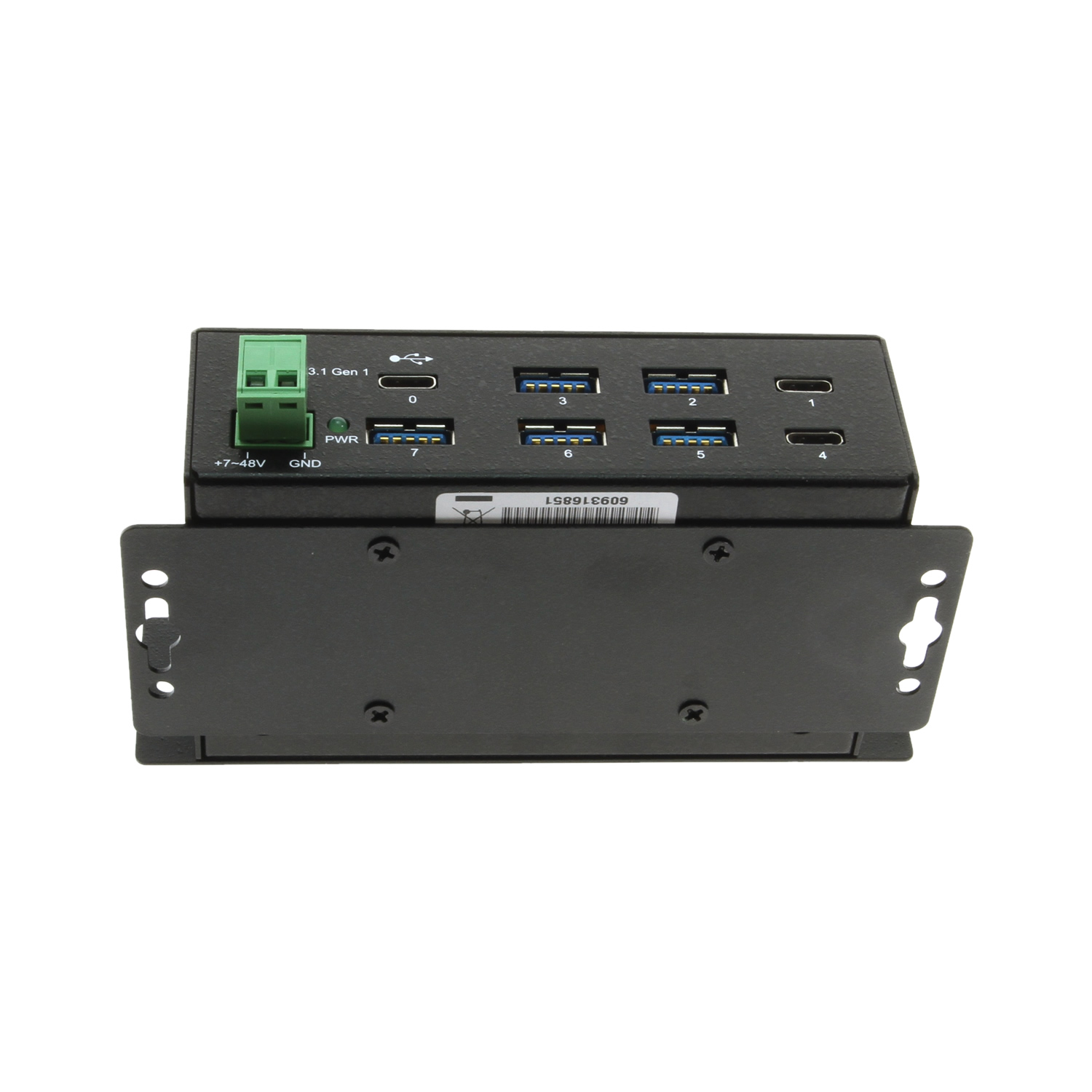

- Includes a Mounting bracket for flat surface mounting i.e. under desk, on walls or tech bench
- Supports Multi Transaction Translators per Hub
- Supports Wide Range Input (+7~48V DC) Self-power Mode from the Terminal Blocks (power adapter sold separately)
- Supports 15KV ESD Surge Protection for Each Port.
- Supports a 2-pin Terminal Block Connector for external power input from AC adapter
- Form Factor: 5.23inch(L) x 2.42inch(W) x 1.43inch(H) (13.30x6.15x3.63 cm)
Environmental Info:
- Operating Temp.: 0 to 55°C (32 to 131°F)
- Storage Temp: -20 to 85°C (-4 to 185°F)
- Operating Humidity: 5 to 95% RH
Supported Devices:
Supports keyboard, mouse, monitor, scanner, printer, PC Camera, telephone, DVD drive, joystick, virtual reality helmet, modem, PBX and many more USB devices

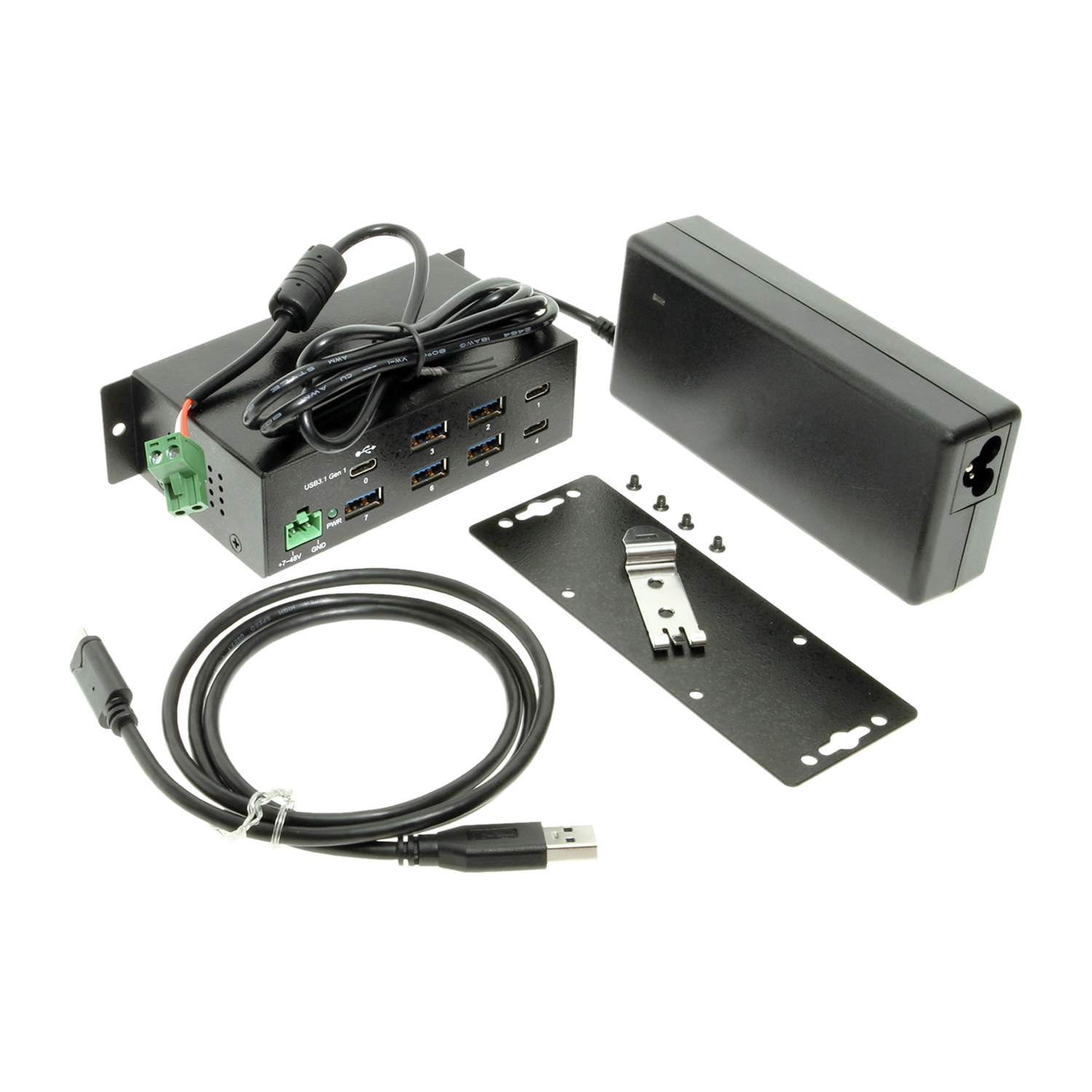

Package Contents:
- 7 port USB-C hub with DIN-Rail mounting kit
- DIN-Rail Clip with screws
- Mounting Bracket with screws

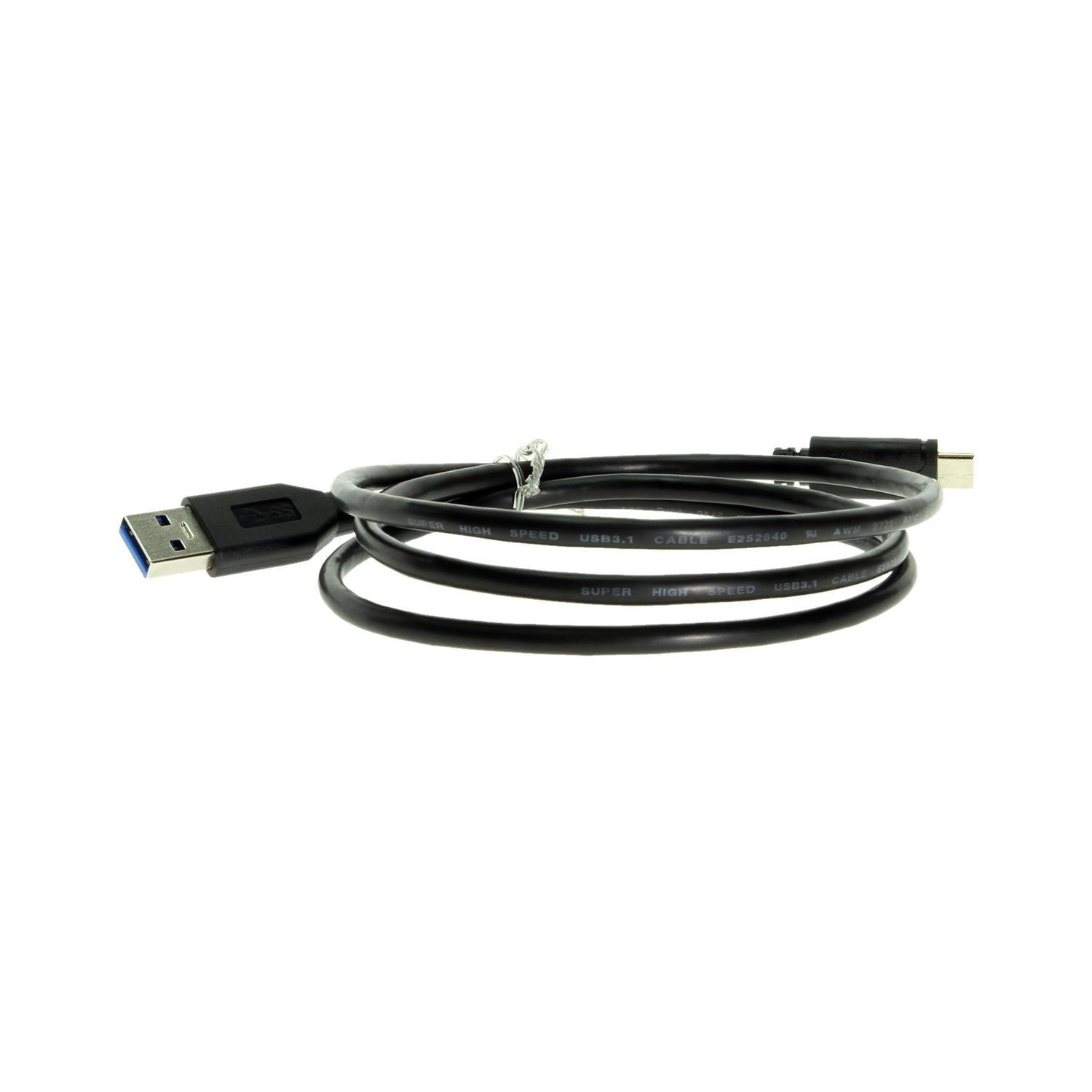

- 3ft. USB-A to C USB 3.1 Gen1 cable
*Surface Mounting screws not included.
- *Power Supply not included; available as an optional accessory: Model# 12V7A2P-B
Sometimes you need a product in a flash and just want to verify an item is in stock. Other times you have a specific question regarding a product, shipping method, or your order. Use the form below and we will help. Please refrain from spam, we only log this information to our database for 24-hours and then it's gone.
Specifications
| Manufacturer: | Coolgear | Warranty: | 1 Year | Availability: | |
| Barcode: | 045079158771 | Ship Weight: | 1.16 | Condition: | New |
| Part Number: | CG-7PU313C | Color: | Black | Length/Size: | -- |
| USB Spec: | USB 3.2 Gen 1 | Max Data Rate: | 5 Gbps | Input Voltage: | 7 ~ 48V DC |
| Upstream Port: | USB 3.2G1 / 3.0 Type-C Female | Downstream Port(s): | 2x Type C USB 3.2 G1 / 3.0 5x Type A USB 3.2 G1 / 3.0 | Screw Lock Compatible: |
No |
Specifications
| Manufacturer: | Coolgear |
| Barcode: | 045079158771 |
| Part Number: | CG-7PU313C |
| Warranty: | 1 Year |
| Ship Weight: | 1.16 |
| Color: | Black |
| Availability: | |
| Condition: | New |
| USB Spec: | USB 3.2 Gen 1 |
| Max Data Rate: | 5 Gbps |
| Input Voltage: | 7 ~ 48V DC |
| Upstream Port: | USB 3.2G1 / 3.0 Type-C Female |
| Downstream Port(s): | 2x Type C USB 3.2 G1 / 3.0 5x Type A USB 3.2 G1 / 3.0 |
| Screw Lock Compatible: |
No |
