Specifications:

• Supports Systems with USB 3.0, USB 2.0 or USB 1.1 Ports
• Provides 7 USB 3.0 downstream ports which manage up to 5Gbps: + 1 dedicated Charging Port (8 Ports Total)
• 7 Downstream Type-A ports support Super-speed, High-speed, Full-speed and Low-speed traffic
• 1 Dedicated charging Type-A port for high power charging (no data transfer supported on this port)
• 1 Upstream Type-B port for Super-speed, High-speed, Full-speed traffic and Low-speed
• Transfer rates supported 5Gbps, 480Mbps and 12Mbps Speed
• Supports Self-powered Mode ( DC power source required )
• Supports up to 900mA USB Bus Power for Each Down-stream Port in standard charging mode
• Supports Downstream Port Status with LED
• High power charging mode supported

USB Devices:

• Supports keyboard, mouse, monitor, cell phone, tablet, scanner, printer, camera, optical drive, memory sticks, external hard drive, joystick, vr headset, modem, PBX and many more.

OS Support:

• Windows 2000, 2003, CE, Vista, Windows 7, and Windows 8, 10
• Linux and Mac OS 10.x

I/O Hardware:

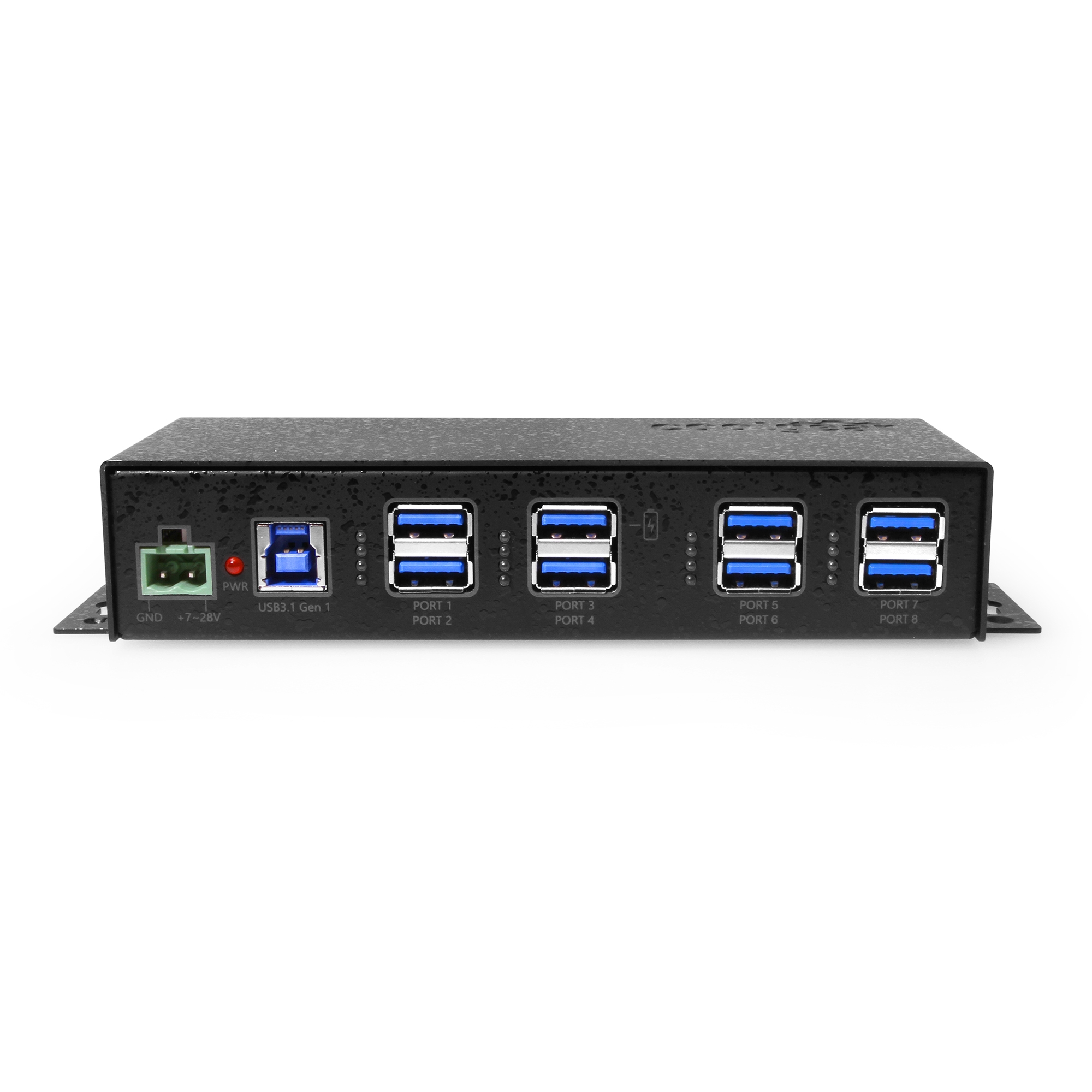

• Supports 7 external USB 3.0 Type-A connectors and 1 Type-B Upstream connector
• Supports 1 external USB 3.0 Type-A dedicated USB charging port for high power devices
• Supports 1 2-pin Phoenix connector Terminal Block for external power input.

Environmental Specifications:

• Operating Temp: 0 to 55°C (32 to 131°F)
• Operating Humidity: 5 to 95% RH

Chipset:

• GL3520

Power Specifications:

• 7~28V DC input
• 5V *2amp per port

Form Factor:

• 181.10 x 59.34 x 33.67mm (LxWxH)

Package Contents

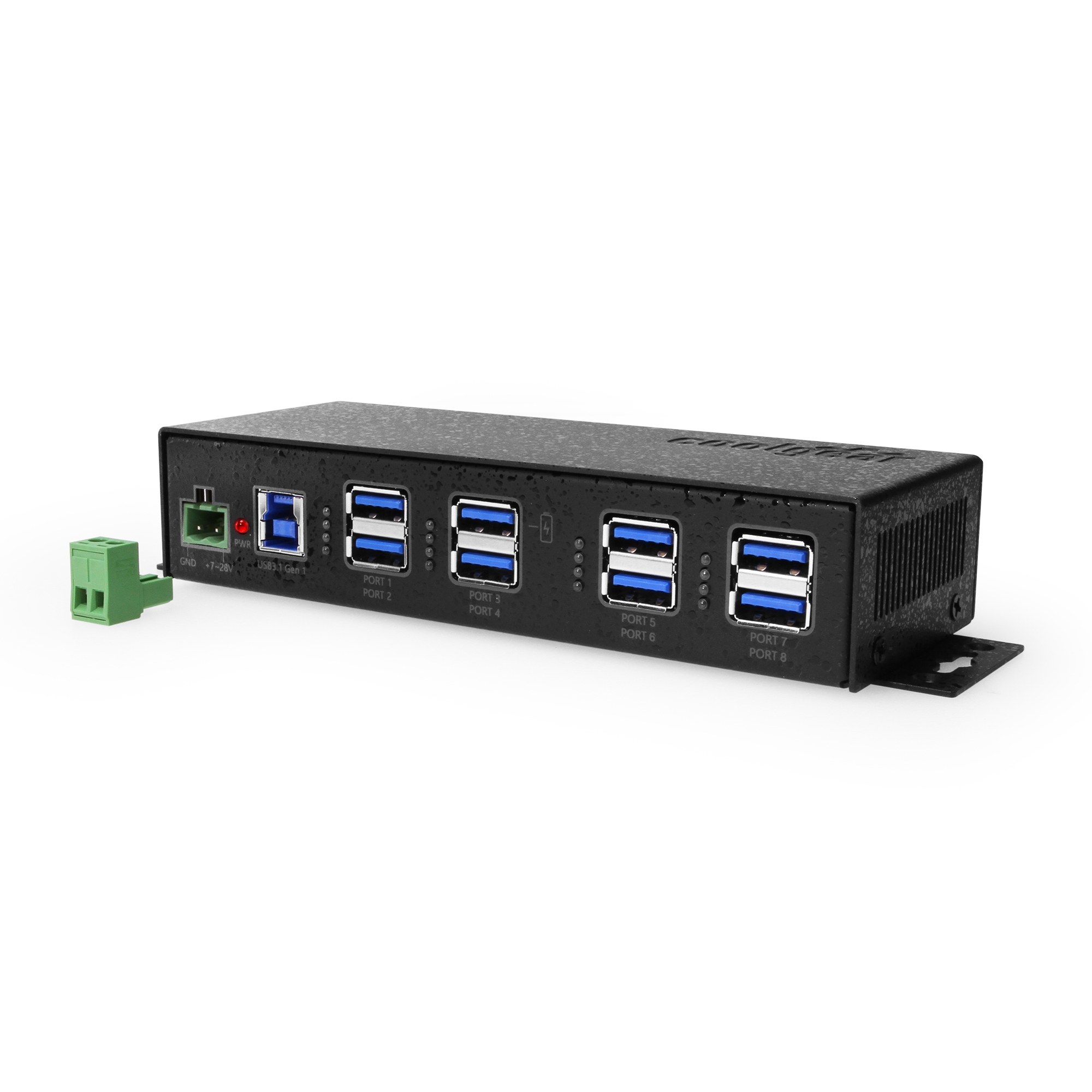

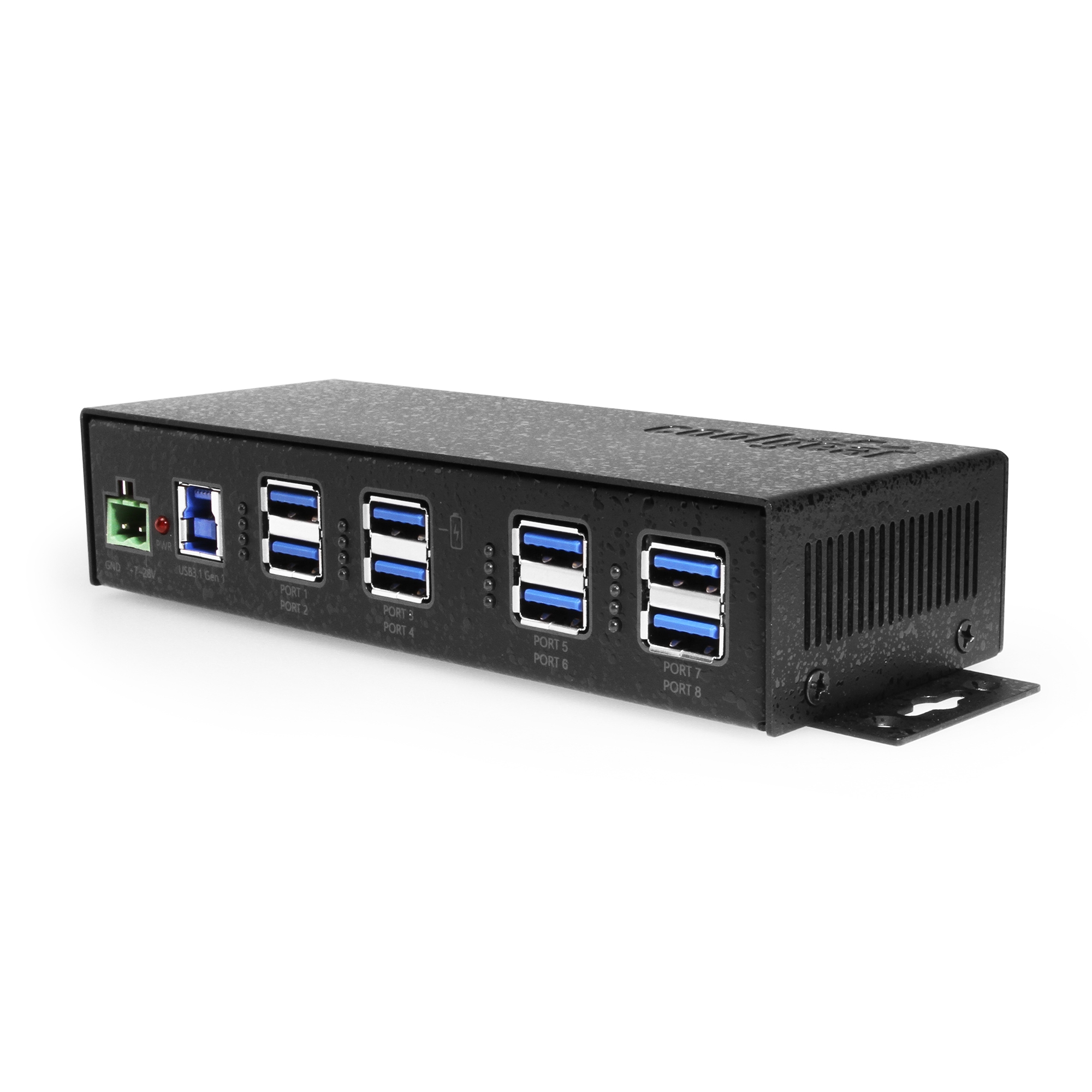

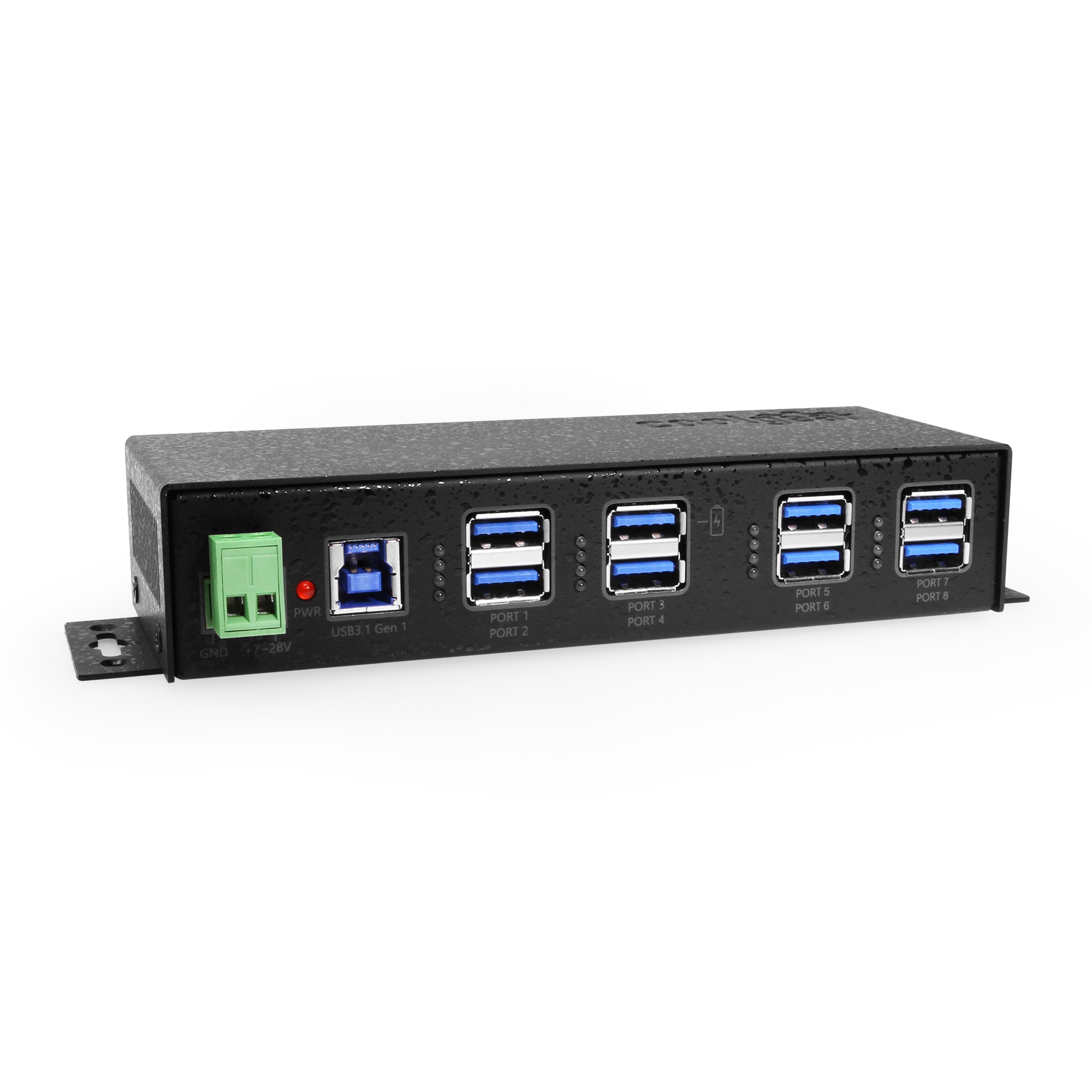

• CG-7XUH1P 7 port USB Hub + 1 dedicated charging port Hub
• 2 pin Phoenix connector
• 6ft USB 3.0 Cable

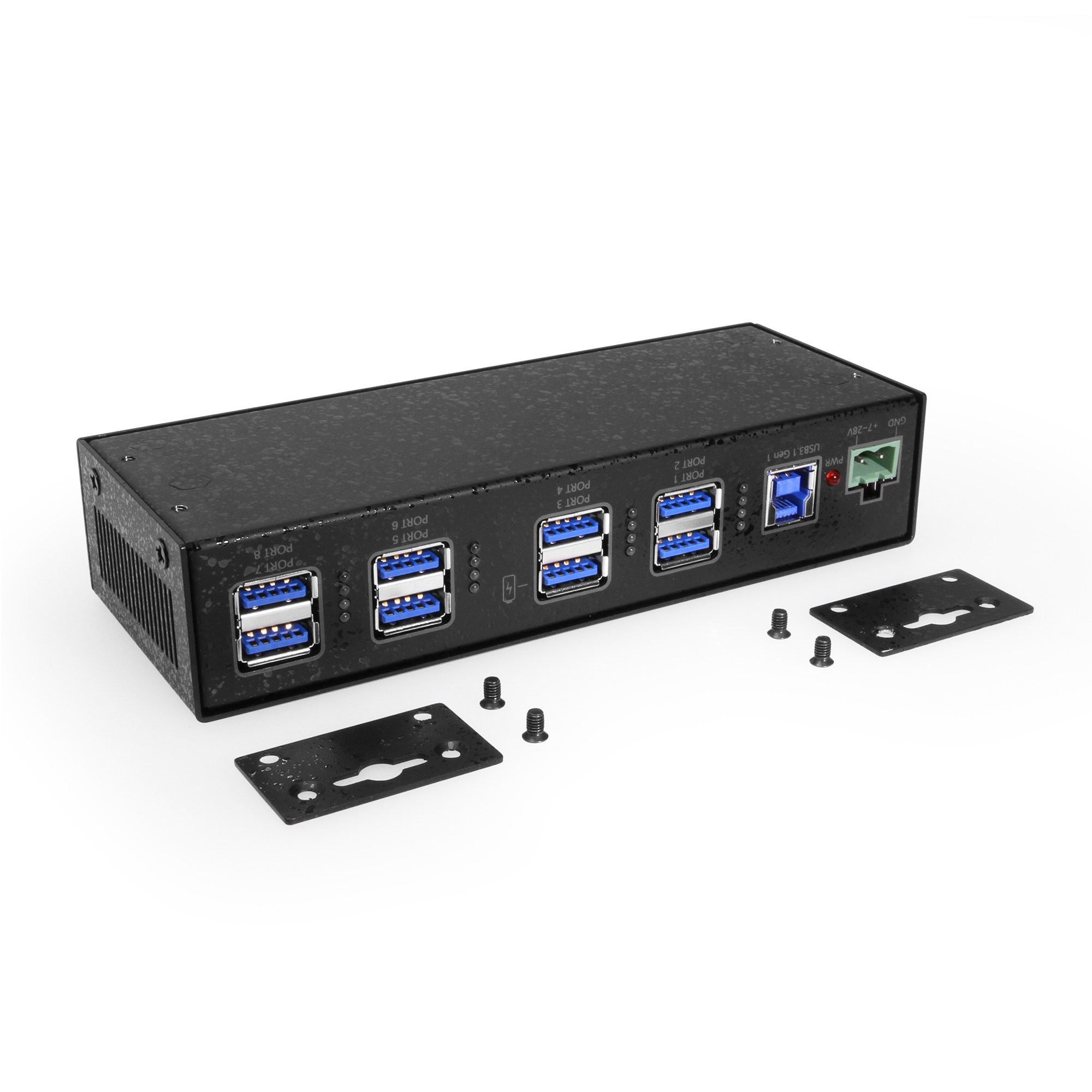

• Set of Mounting Flanges (Surface/Flush mounting brackets)

*Surface Mounting screws not included.

*Power Supply not included; available as an optional accessory: Model# 12V7A2P-A
