USB 3.2 Gen 1 Micro Hub with 4 Ports, Variable Voltage, and Surge Protection

The CG-MIC4P31HVV is a micro sized USB hub made to Gen1 USB 3.2 specifications. Constructed with 4 USB 3.2 Type-A downstream ports, the hub will transfer data up to 5GBps. It is powered by variable 7-48V DC input through its 2 pin Phoenix connector.

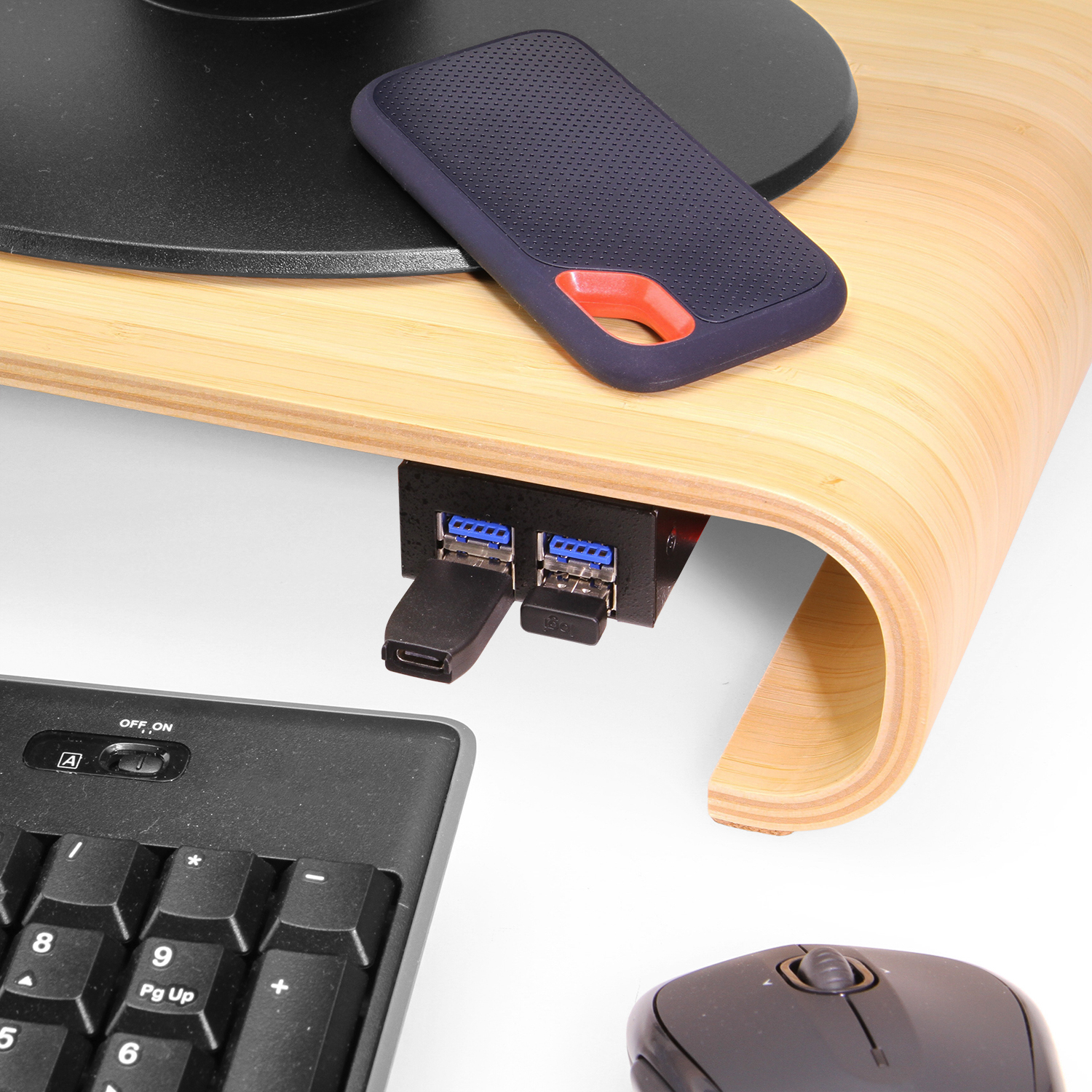

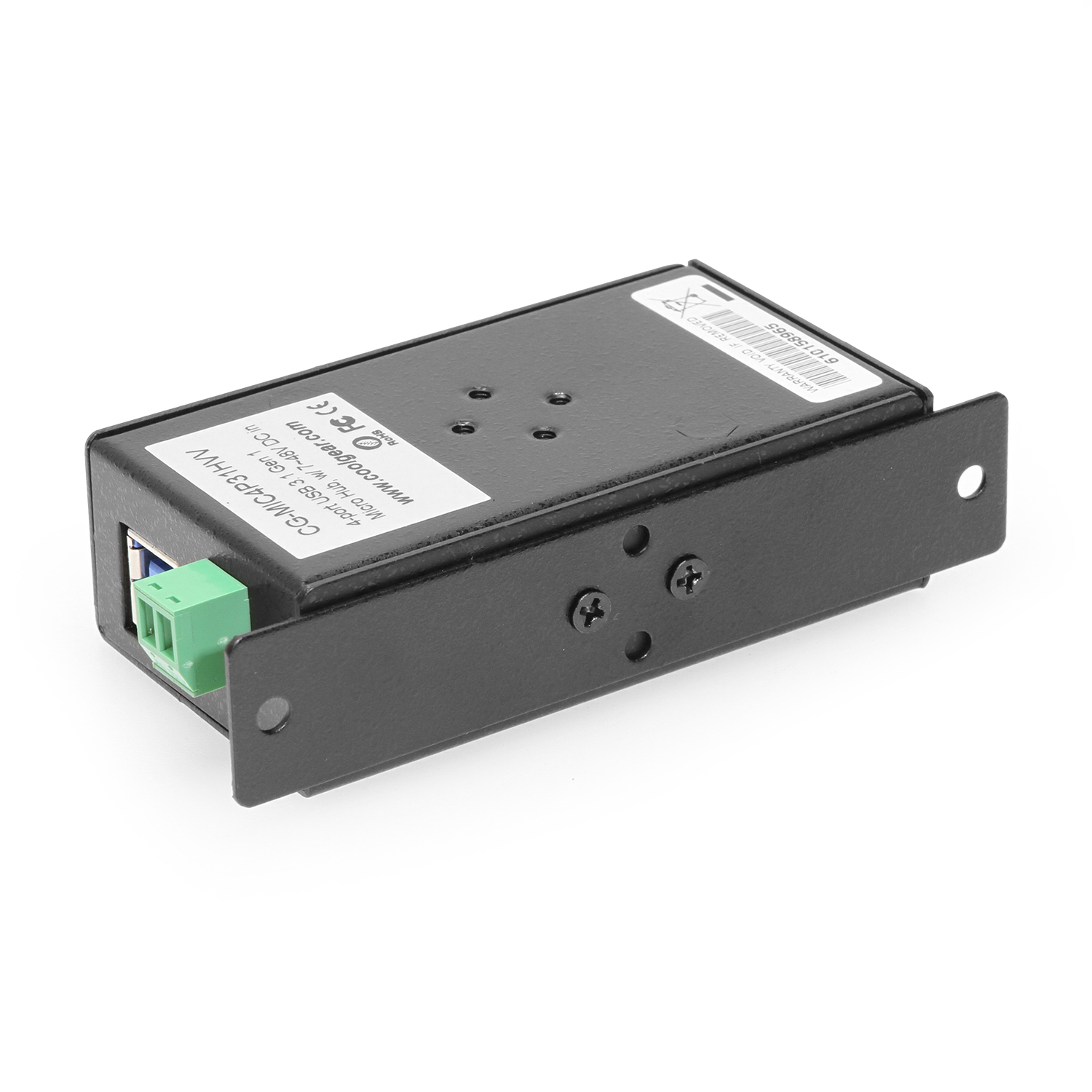

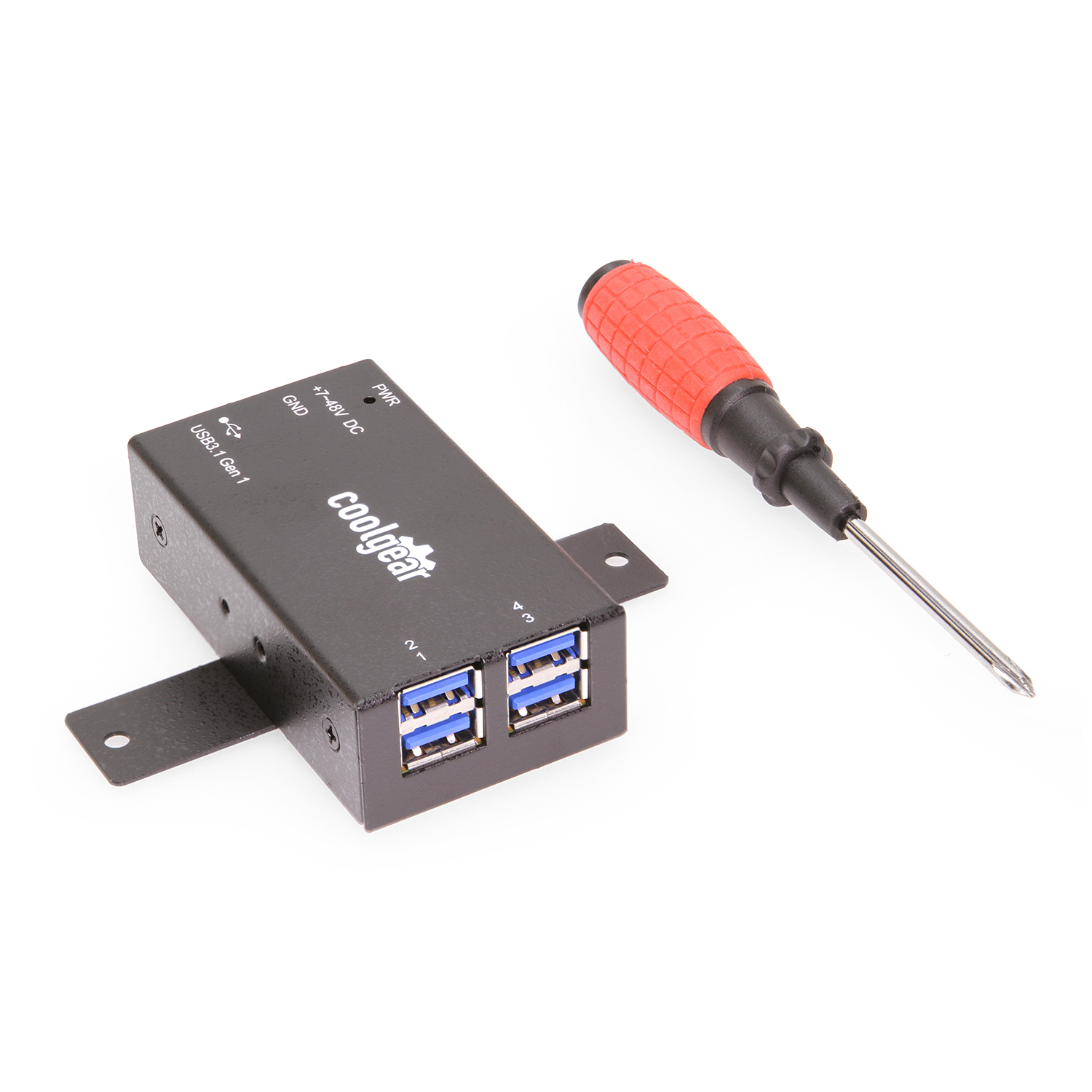

The hub can be mounted in different positions using in its included metal bracket. It can also be mounted using a Din Rail Clip not included. The hub is built to save space in industrial environments in its metal chassis.

4 Port USB 3.2 Micro Hub Features

• Supports systems with USB 3.x, 2.0, 1.1 ports
• Has power LED indicating power is on

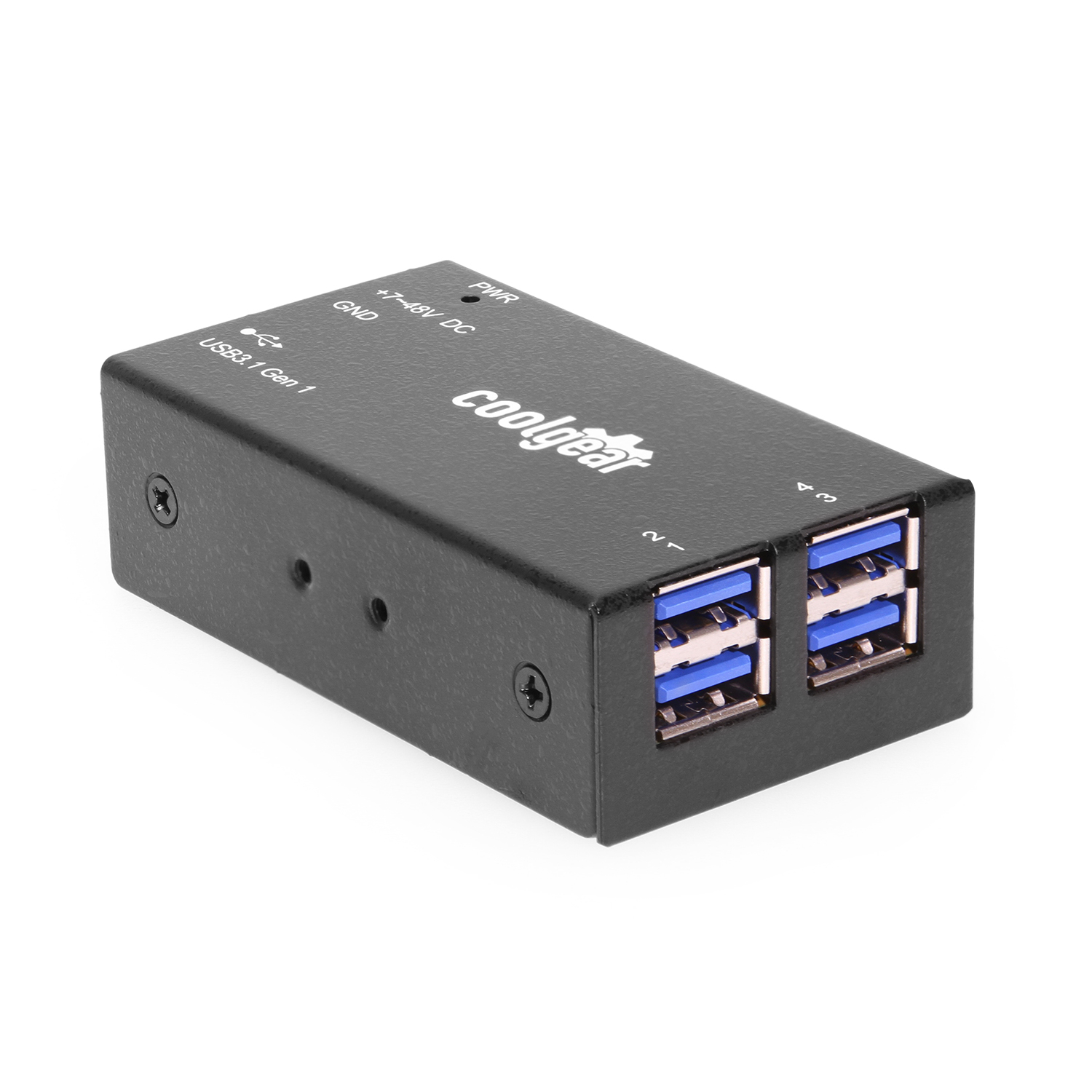

• Provides 4 downstream ports supporting 5Gbps data speeds
• Provides 1 upstream Type-B port to the host computer
• Compliant with USB 3.2 G1 specifications
• Data speeds of up to 5Gbps Super-Speed, 480Mbps High-Speed, and 12Mbps Full-Speed, and 1.5Mbps Low-Speed

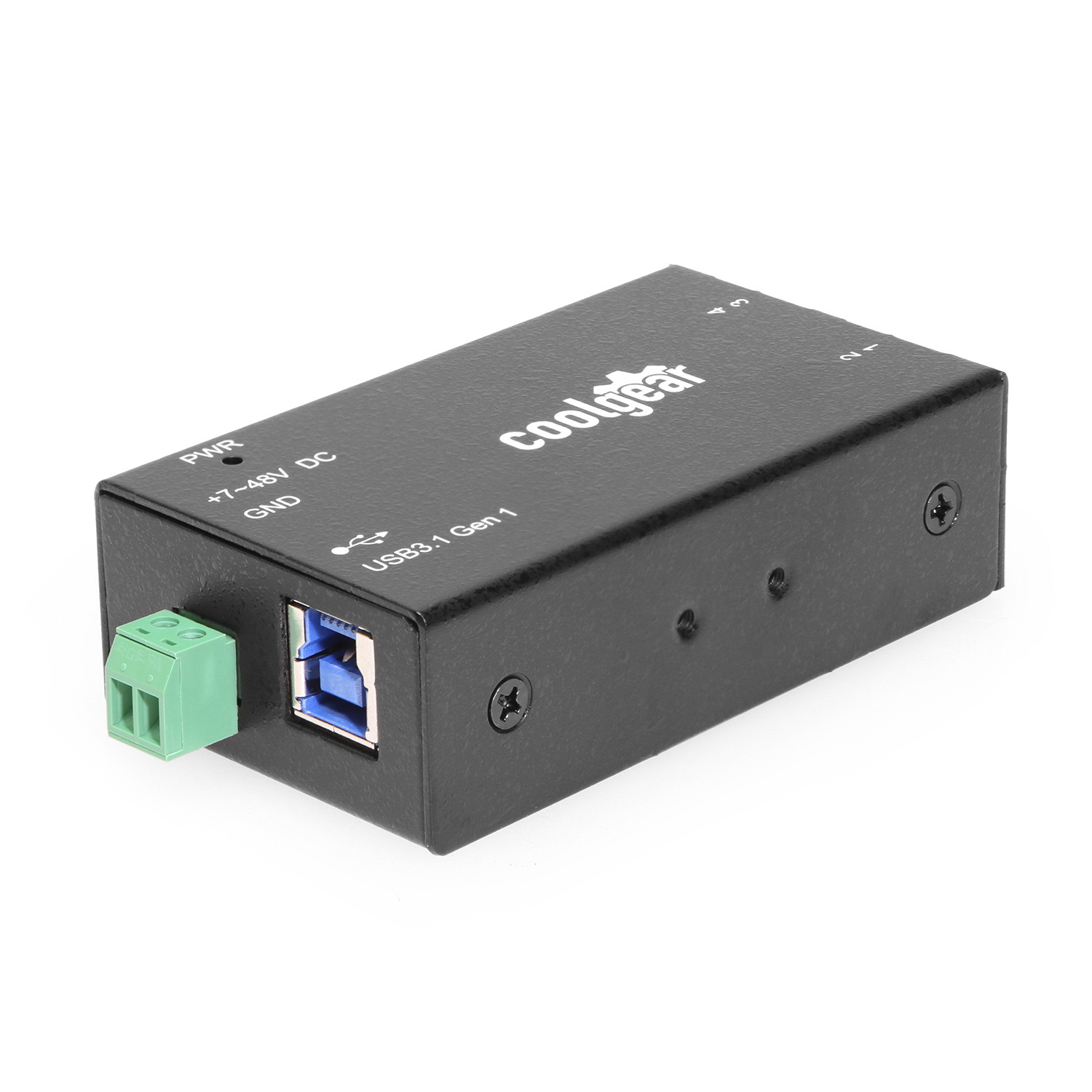

• Supports +7-48V DC self-power input (power adapter sold separately) through 2 pin Phoenix connector
• Supports 15KV ESD surge protection for each port

Environmental

• Operating Temp.: 0° – 70°C (32° to 150°F)
• Storage Temp.: -20° to 85°C (-4° to 185°F)
• Operating Humidity: 5 to 95% RH

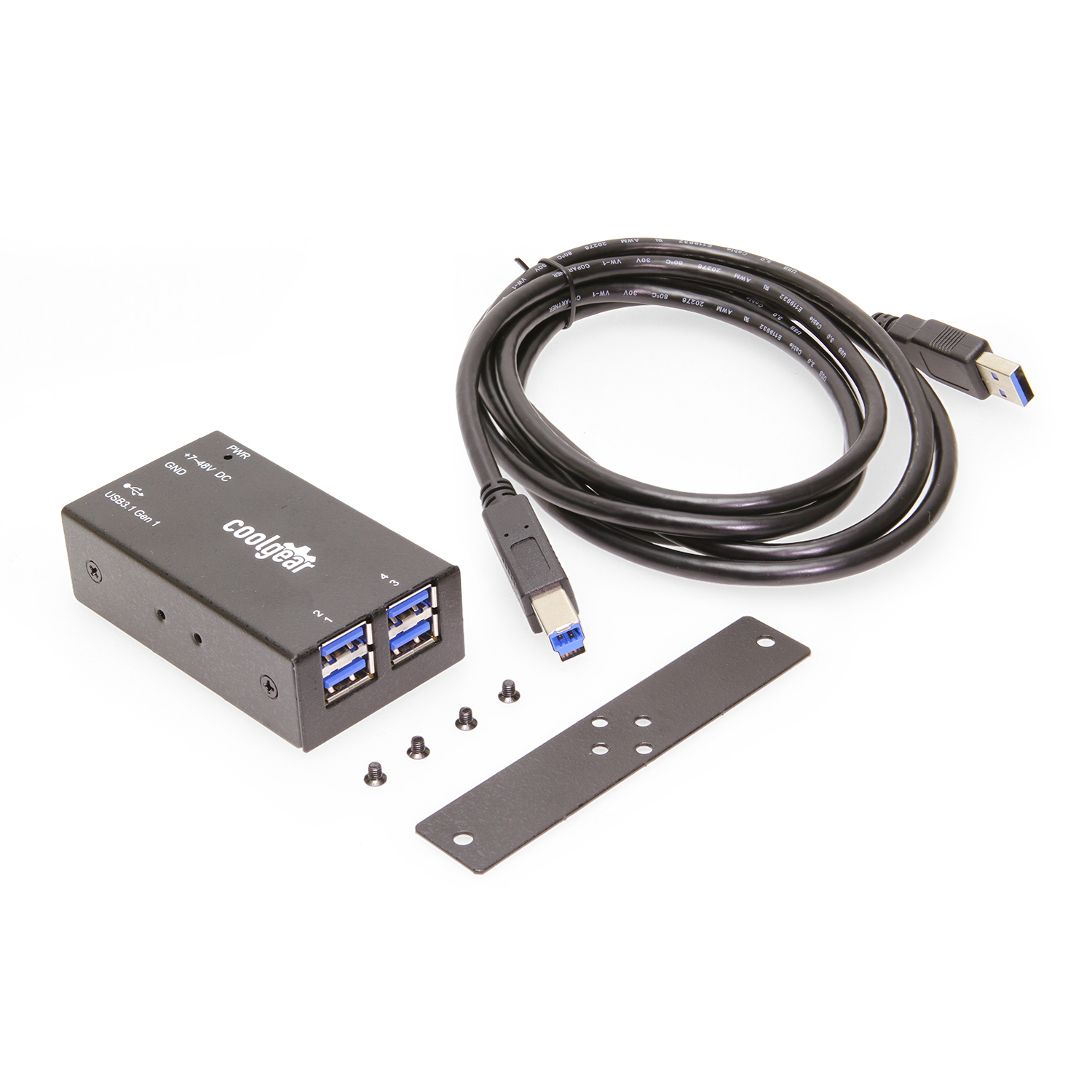

Package Contents

• 4 Port USB 3.2 7-48V DC variable voltage Micro Hub
• 5ft. A to B USB 3.0 device cable
• Mounting bracket and (2) screws

*Surface Mounting screws not included
