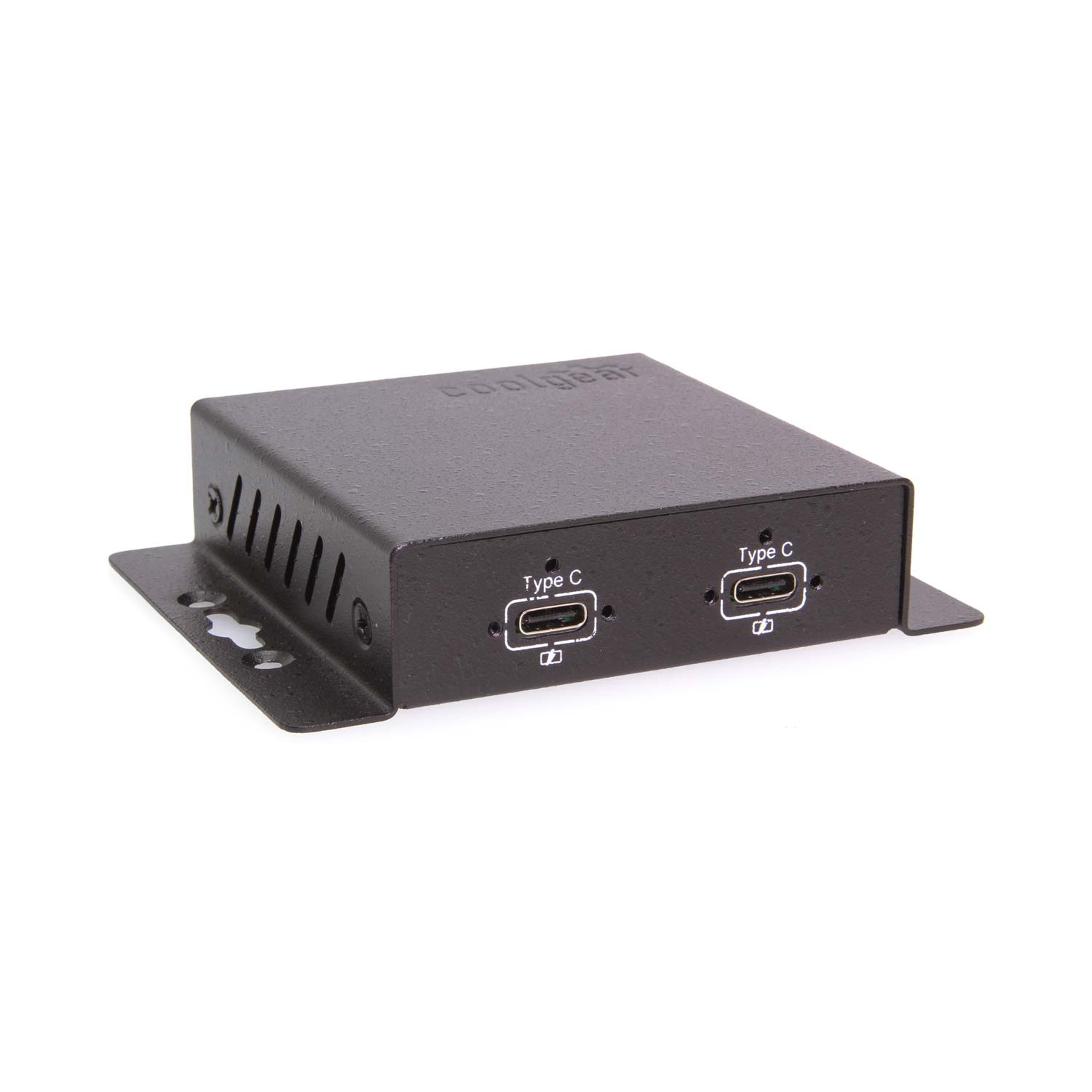

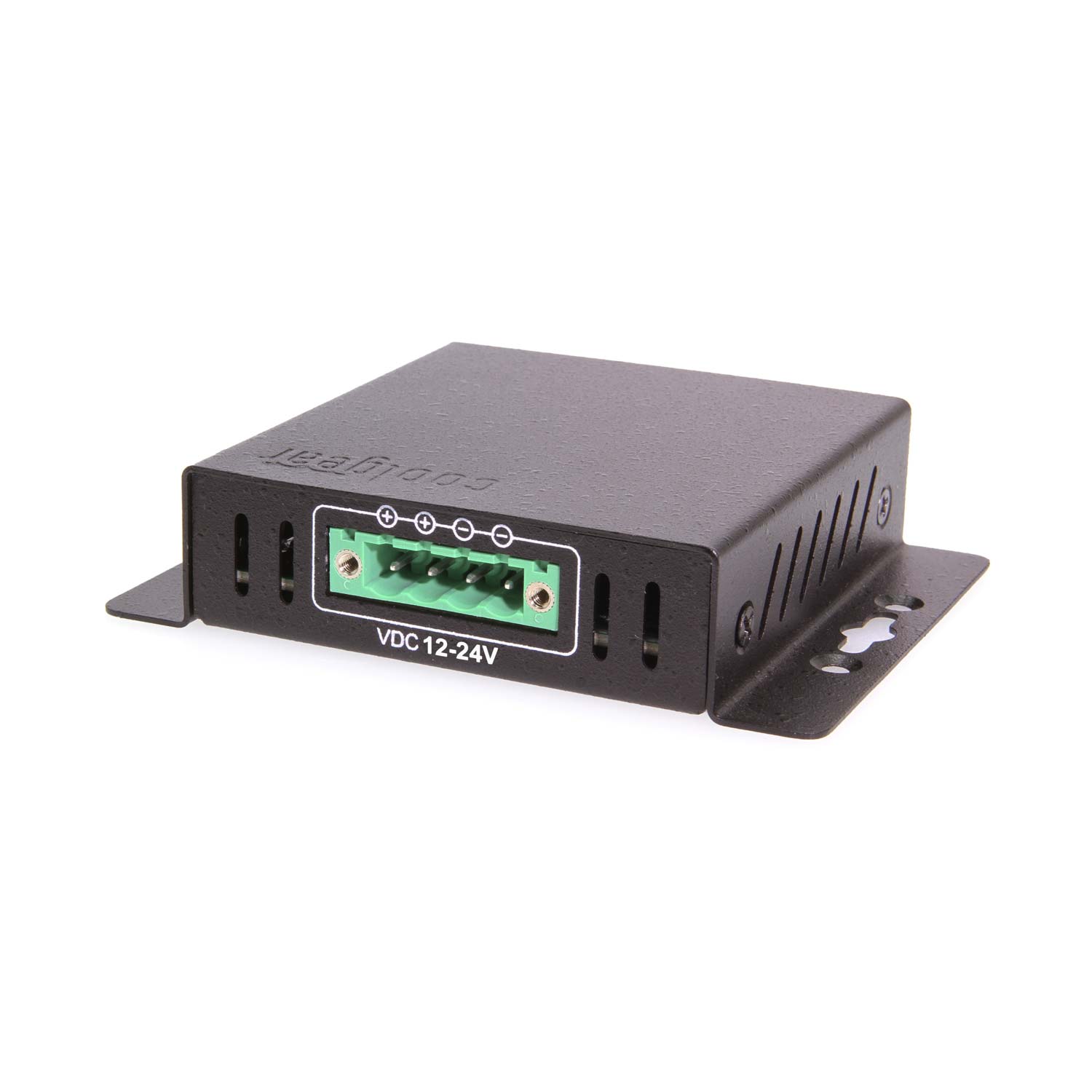

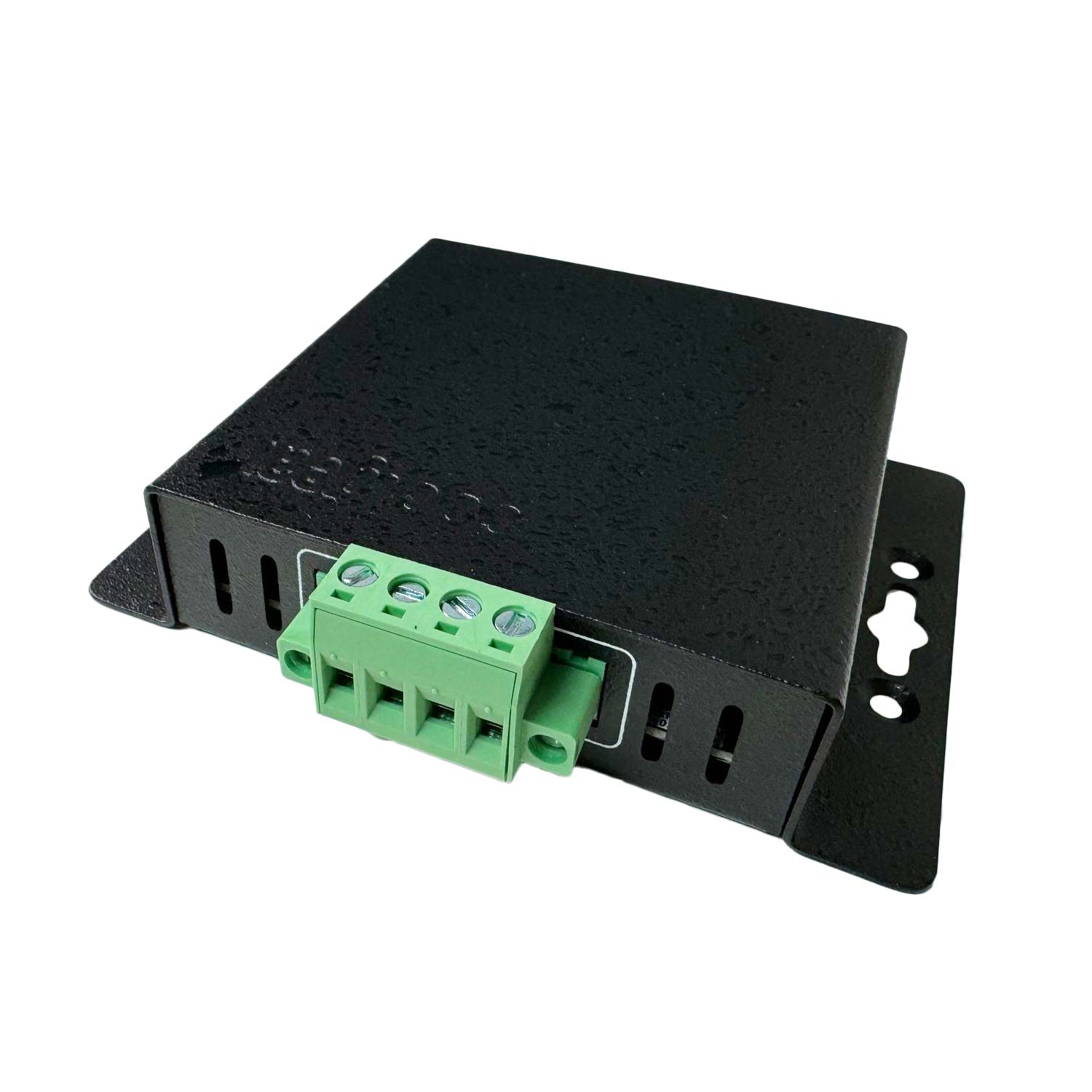

ChargeIT! 280W Dual USB Type-C PD Charger w/ EPR Support
Status: Low stock, please call or email for status
This High Power Dual Port USB Type-C Industrial hub that complies with the latest USB-C and PD standards. Intended for use in PC power adapters, mobile chargers, car chargers and power bank applications. This charging hub provides two 140W USB Type-C PD port with EPR support for a total output of 280W.
- 280W USB PD3.1 Dual Port Type C EPR 28V capable Buck-boost DC adapter
- Variable voltage input range of 12~24V DC
- Supports most PD protocols including PD3.1, PPS, QC4.0+, BC1.2, etc.
- Compatible with single and dual screw-lock USB-C cables to keep your connections secure.
- SPR Fixed PDO: 5V / 3A~5A, 9V / 3A~5A, 15 / 3A~5A, 20V / 5A
- EPR Fixed PDO: 28V / 5A
- AVS APDO: 15V~28V / 140W
(Note: USB-C EPR required for 140W PD output per port is NOT included)
Product Documentation & Drivers
ChargeIT! 280W Dual USB Type-C PD Charger w/ EPR Support
Documentation
Features:
- 280W USB PD3.1 Dual Port Type C EPR 28V capable Buck-boost DC adapter.
- 140W Power Delivery output per port.
- Supports most PD protocols including PD3.1, PPS, QC4.0+, BC1.2, etc.
- Comprehensive system protections such as OVP, OCP, SCP, and open loop.
- Compatible with single and dual screw-lock USB-C cables to keep your connections secure.
- With Introduction of Extended Power Range "EPR" USB Power Delivery this super compact 12~24V DC Input 280W USB C Power Adapter offers the fastest possible charging speed for your USB Type-C devices.
For the maximum output of 140W per port, the following conditions must be met:
SPR Fixed PDO: 5V / 3A~5A, 9V / 3A~5A, 15 / 3A~5A, 20V / 5A
EPR Fixed PDO: 28V / 5A
AVS APDO: 15V~28V / 140W
(Note: USB-C EPR required for 140W PD output per port is NOT included)
Sometimes you need a product in a flash and just want to verify an item is in stock. Other times you have a specific question regarding a product, shipping method, or your order. Use the form below and we will help. Please refrain from spam, we only log this information to our database for 24-hours and then it's gone.
Specifications
| Manufacturer: | Coolgear | Warranty: | 1 Year | Availability: | Limited Stock |
| Barcode: | 045079164376 | Ship Weight: | 0.61 | Condition: | New |
| Part Number: | CG-PD280EPR-UM | Color: | -- | Length/Size: | -- |
| USB Spec: | -- | Max Data Rate: | Input Voltage: | 9 ~ 30V DC | |
| Upstream Port: | Downstream Port(s): | 2x Type C (Charging) | Screw Lock Compatible: |
Yes |
Specifications
| Manufacturer: | Coolgear |
| Barcode: | 045079164376 |
| Part Number: | CG-PD280EPR-UM |
| Warranty: | 1 Year |
| Ship Weight: | 0.61 |
| Color: | -- |
| Availability: | Limited Stock |
| Condition: | New |
| USB Spec: | -- |
| Max Data Rate: | |
| Input Voltage: | 9 ~ 30V DC |
| Upstream Port: | |
| Downstream Port(s): | 2x Type C (Charging) |
| Screw Lock Compatible: |
Yes |
