USB-C Power Extender Kit for Nest Cam IQ / Outdoor Gen 1

The CG-PWRPNESTKIT is a Nest Cam USB Power Extender with power over Ethernet (PoE) kit enabling a longer data and power connection. The Nest Cam Gen 1 includes a stock 25ft. USB Type-C cable that connects to a USB C power source. Coolgear's Nest Cam USB C extender kit provides a solid solution to extend power and data Nest Cam distance.

How the Nest Cam IQ Power Extender Works

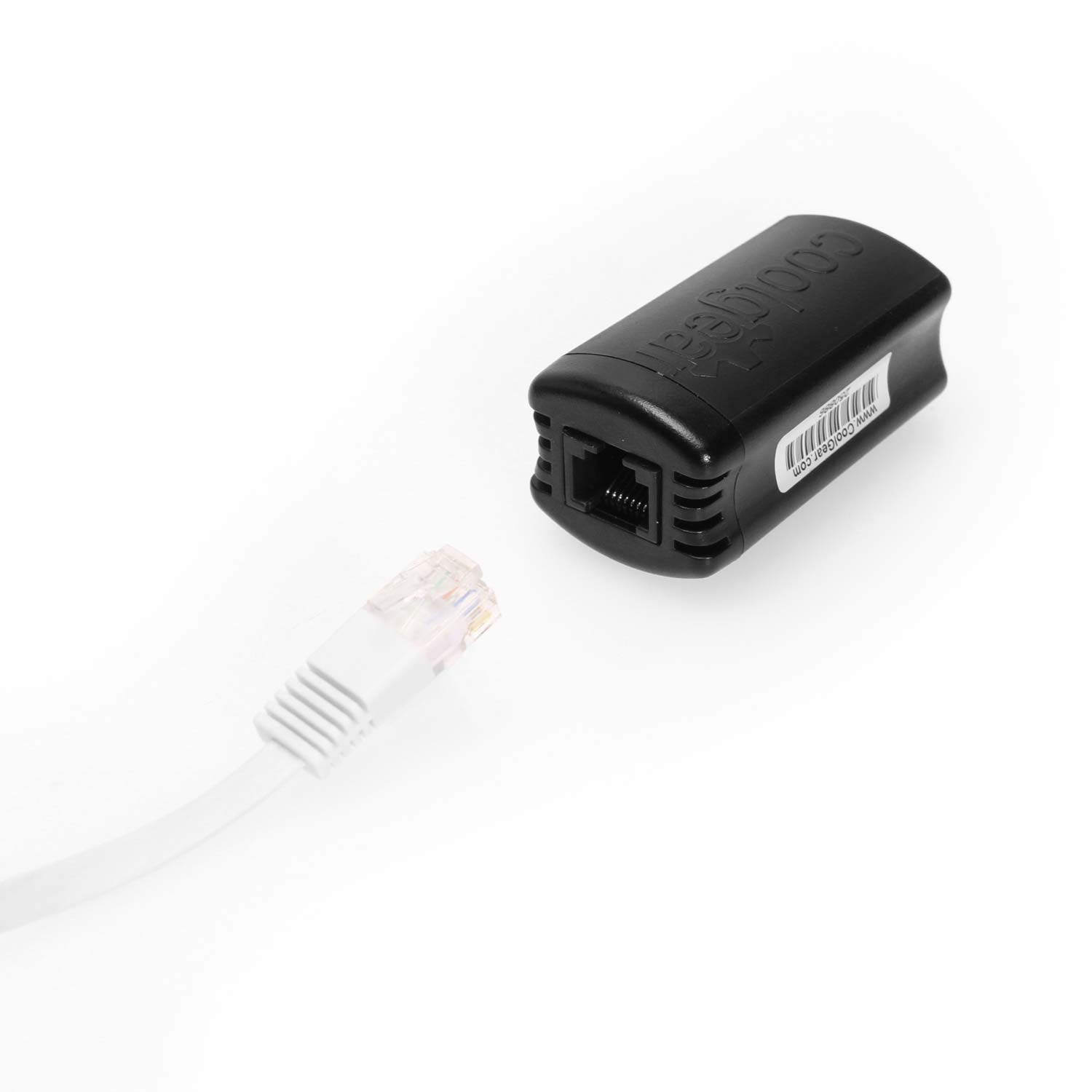

The USB-C Power Pod in combination with a power source can add an additional 100 meters. to your connection. A Cat6 cable with RJ45 male ends plugs into the RJ45 female power source and the Power Pod. The Nest Cam's included USB-C cable plugs into to the Power Pod.

This PoE Nest Cam Extender Kit works with both Nest Cam IQ Outdoor and Indoor.

Features:

• Extends the length of the Nest Cam IQ power and data connection up to an additional 100 meters.
• Compact effective Passive PoE solution for Nest Cam IQ Gen 1 USB Type C connection.
• Kit includes Power Pod and power adapter.
• Supports the 5-15V PD DC range of various Nest Cam's
• Cost effective solution to extend the working length of the Nest Cam.
• No addition items needed with this 2pc. kit.

Specifications:

22W USB-C Power Pod

• Supports PD Profiles: 5V/2.39A, 9V/2.07A, 12V/1.51A, 15V/1.27A, 20.0V/1.11A
• Input: RJ45
• Output: USB-C Female
• Very High Efficiency up to 97%
• Variable voltage input :20 – 28V
• Over Voltage Protection
• Under Voltage Protection
• Over Temperature Protection
• Operating Temperature: 10 to 60°C
• Humidity: 5-90%
• Dimensions: 2.1in(L) x 1.2in(W) x 1.0in(H)

Passive PoE Power Supply

• Input: 100-240V 50/60Hz
• Output 24.0V / 1A
• RJ45 female Data & Power Out jack

Supports

• Nest Cam IQ Gen 1
• Nest Cam IQ Outdoor Gen 1

Package Contents:

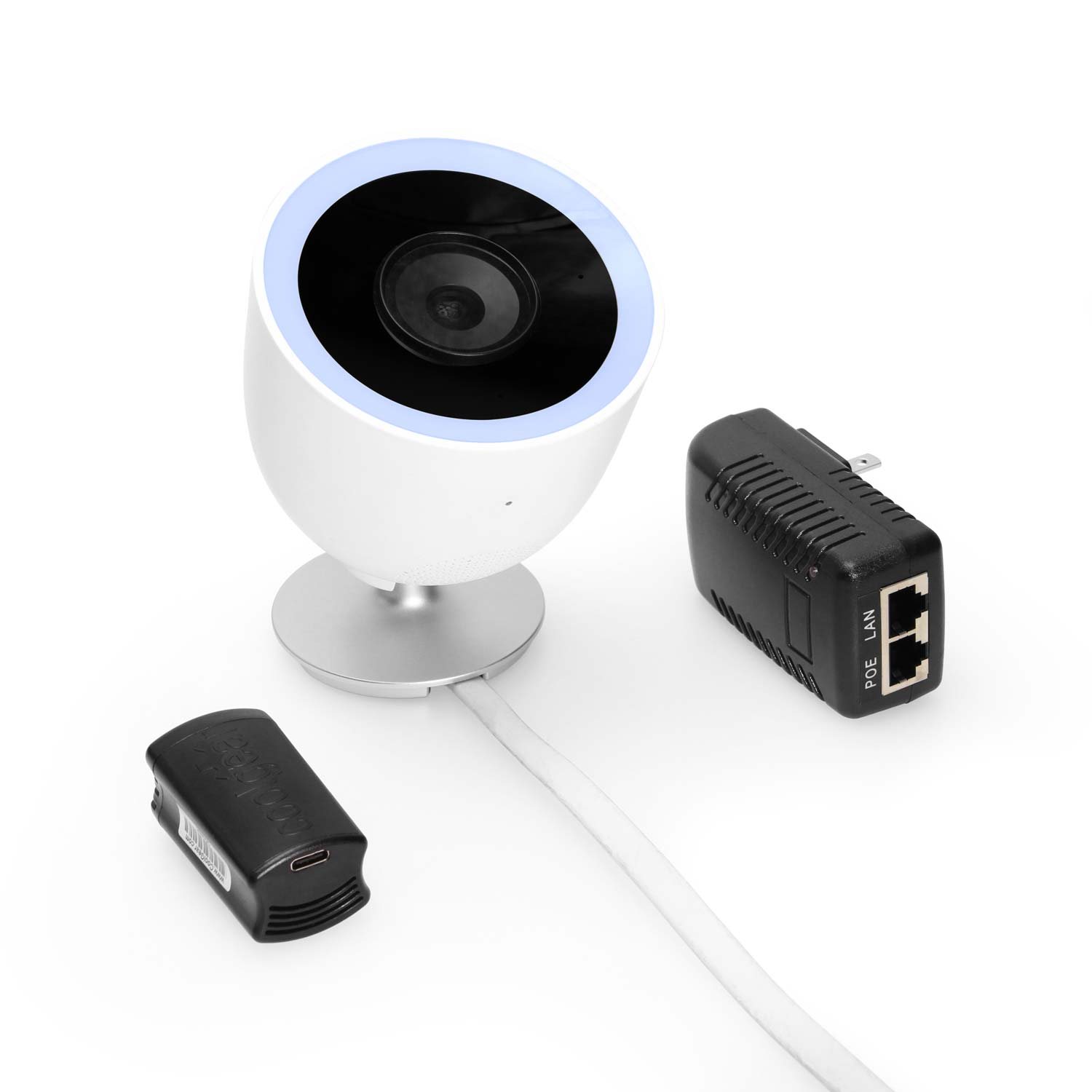

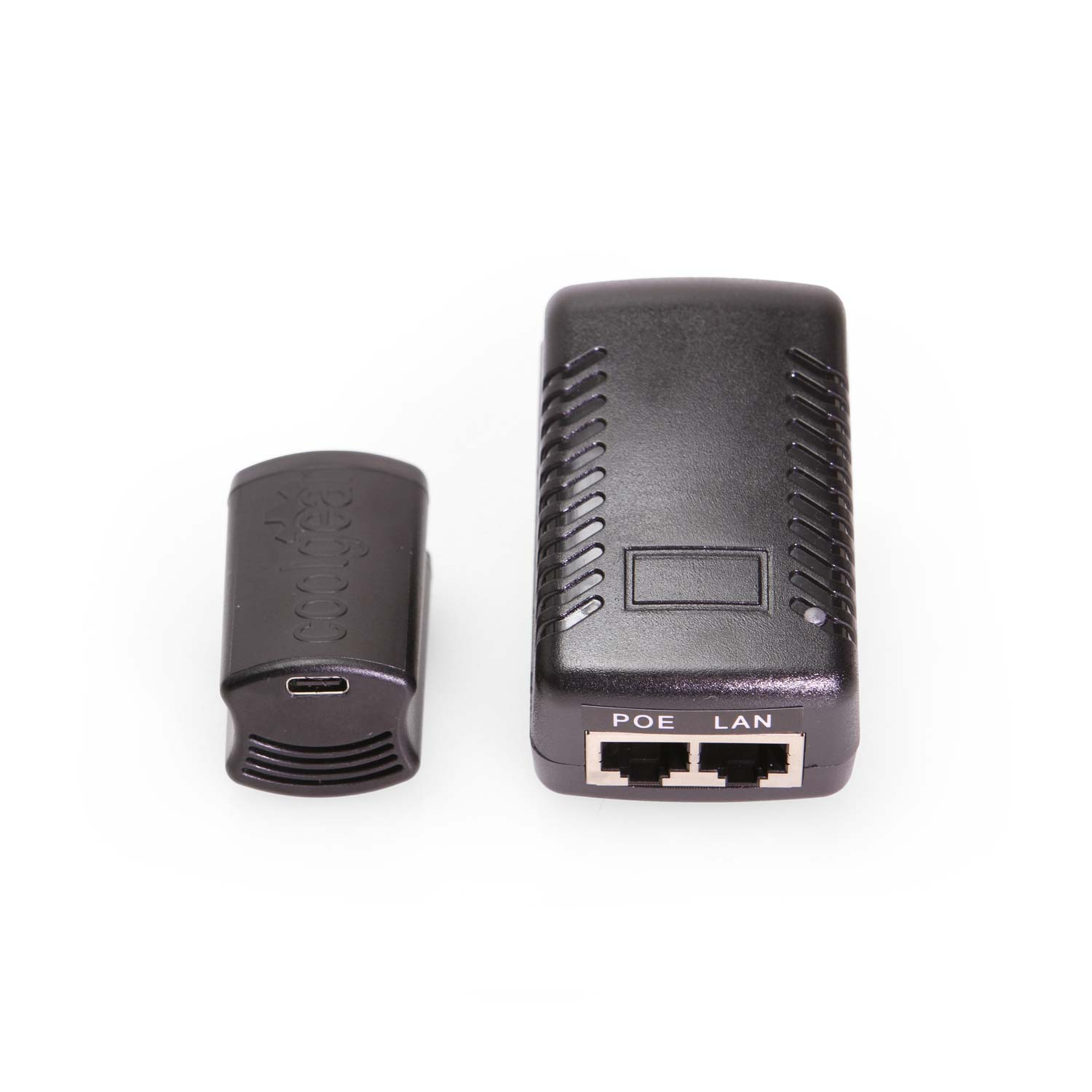

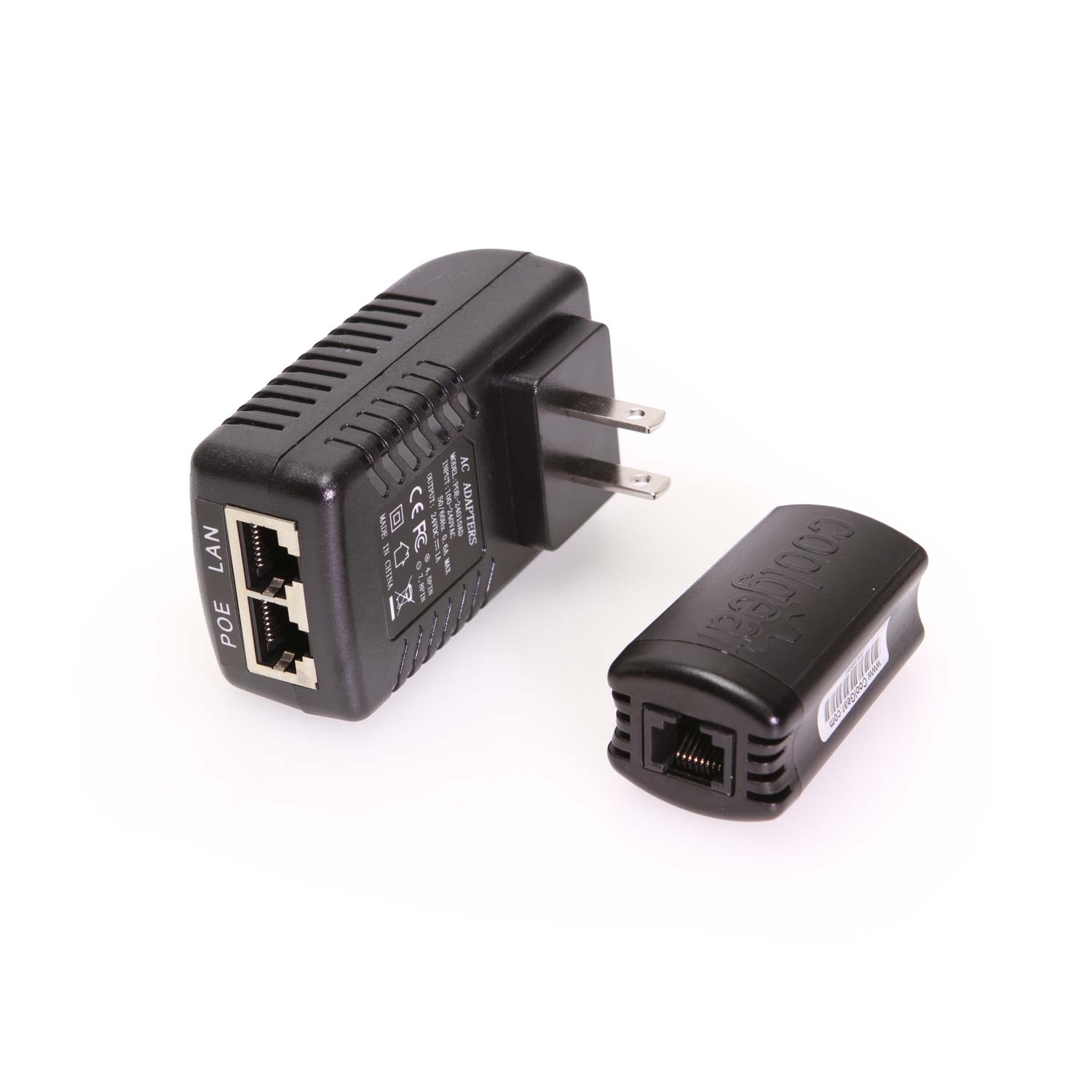

• 1x 22W DC to USB-PD Black Power Pod
• 1x Passive PoE Power Adapter *Power adapter must be used in conjunction with the POD

Not Included in the Kit:

• Nest Cam IQ Outdoor Gen 1
• Ethernet cable ( works with Cat 5e or Cat 6 )

NOTICE: DO NOT USE WITH ACTIVE POE INJECTOR OR SWITCH, it will cause severe damaged to the POD and possibly your nest, use all components included in Kit.

Looking for an active PoE Solution? Learn more about our: CG-POE15VPD
