7 Port USB 3.2 Gen 1 Mini Powered Hub w/ ESD Surge Protection & Power Adapter
Status: Low stock, please call or email for status
Volume Pricing
Qty: 1+
$52.99
Qty: 6+
$52.20
Qty: 12+
$51.80
Qty: 24+
$51.14
Qty: 48+
$50.74
Qty: 99+
$49.81
Industrial Grade | +5V DC Input | Surge Protection | Surface Mountable | 5 Gbps
- Protect Your Equipment: The 7-port hub features 15kV ESD surge protection to keep your connected peripherals safe from harm.
- Super Fast Speeds: This USB hub is 3.2 Gen 1 compliant, ensuring super-fast 5Gbps data transfer speeds. It supports super speed, high speed and full speed which enables it to be compatible with USB 2.0 / 1.1.
- Small-Scale Quality: Housed in a compact steel chassis, the 7-port hub is perfect for discreet installations in offices, labs, warehouses, heavy machinery, automation equipment, and other industrial applications.
- Upstream: 1 USB port, Type B connector
- Downstream: 7 USB ports, Type A connectors
- Power Connector: DC Barrel 2.5mm ID × 5.5mm OD, Center Pin Positive
- Mounting Options: Wall & Surface
Product Documentation & Drivers
7 Port USB 3.2 Gen 1 Mini Powered Hub w/ ESD Surge Protection & Power Adapter
Volume Pricing
Qty: 1+
$52.99
Qty: 6+
$52.20
Qty: 12+
$51.80
Qty: 24+
$51.14
Qty: 48+
$50.74
Qty: 99+
$49.81
Documentation
Introduction:
USB 3.2 Gen 1 powered hub with industrial-grade chassis and surface mounting flanges. The CG-U3MINI7PH is a 5V DC input, generation 1 USB 3.2 Gen 1 hub with ESD and Surge protection. This USB 3.2 Gen 1 Hub will support fast charging for Apple and Samsung Galaxy devices. Each port is protected individually to help keep your peripherals safe. The USB 3.2 Gen 1 Hub uses a GL 3510 chip, each port is on an individual circuit to maintain high current and protection. The GL3510 Hub controller chip features native fast-charging and complies with USB-IF battery charging specification rev1.2.
Features:
- Compliant with USB 3.2 Gen 1 Specification
- Upstream port supports Super-Speed (SS), High-Speed (HS) and Full-Speed (FS) traffic
- Downstream ports support SS, HS, FS, and Low-Speed (LS) traffic
- 1 control pipe and 1 interrupt pipe
- Backward compatible to USB specification Revision 2.0/1.1
- Compliant with USB Battery Charging Revision v1.2, supporting CDP, DCP, and ACA-Dock
- Downstream ports can be turned from a Standard Downstream Port (SDP) into Charging Downstream Port (CDP) or Dedicated Charging Port (DCP)
- Downstream devices can be charged while upstream VBUS is not present, which can be applied on wall charger applications
- Upstream port is capable of charging and data communicating simultaneously for portable devices supporting ACA-Dock or proprietary charging protocols
- Compatible with Windows 7, 8,10,11, Linux and Mac OS X
Specifications:
- Chip: GL3510
- USB 3.2 Gen 1 Gen Compliant
- Supports High Speed and Full Speed transmit and Receive
- Complies with USB-IF battery charging specification rev1.2
- Automatic switching between self-powered and bus-powered modes
- Item Dimensions: 4.61"(L 5.57" w/ears) x 1.85(W) x 1.16(H)
- Item Weight: .56 lbs. (5.2 oz)

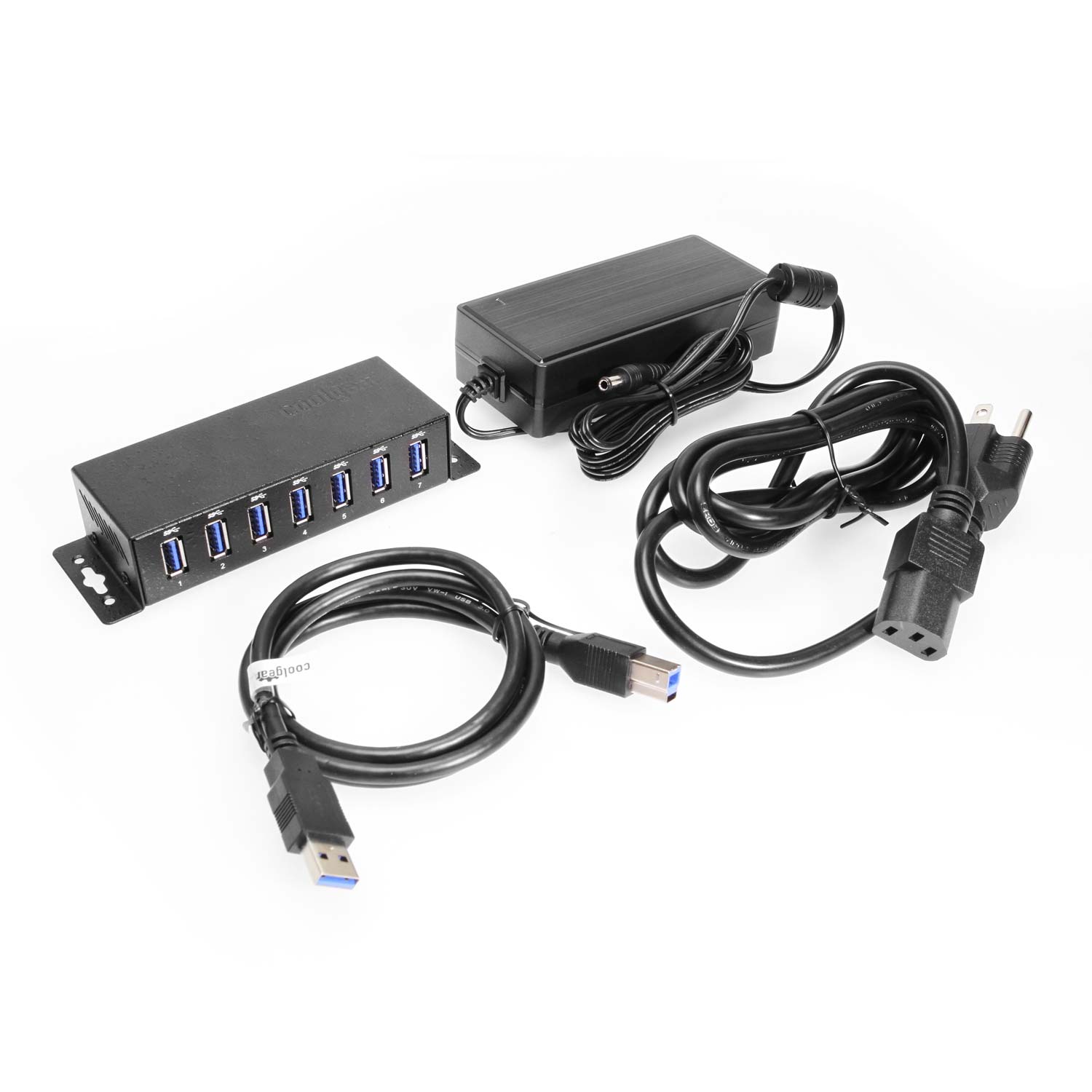

Package Contents:
- USB 3.2 Gen 1 7-Port Hub
- 6 Amp 5V DC Mini-Switching Power Adapter
- 3ft. USB A to B Cable for Hub
*Surface Mounting screws not included.
Sometimes you need a product in a flash and just want to verify an item is in stock. Other times you have a specific question regarding a product, shipping method, or your order. Use the form below and we will help. Please refrain from spam, we only log this information to our database for 24-hours and then it's gone.
Specifications
| Manufacturer: | Coolgear | Warranty: | 1 Year | Availability: | Limited Stock |
| Barcode: | 045079163706 | Ship Weight: | 0.95 | Condition: | New |
| Part Number: | CG-U3MINI7PH | Color: | Black | Length/Size: | -- |
| USB Spec: | USB 3.2 Gen 1 | Max Data Rate: | 5 Gbps | Input Voltage: | 5V DC |
| Upstream Port: | USB 3.2G1 / 3.0 Type-B Female | Downstream Port(s): | 7x Type A USB 3.2 G1 / 3.0 | Screw Lock Compatible: |
No |
Specifications
| Manufacturer: | Coolgear |
| Barcode: | 045079163706 |
| Part Number: | CG-U3MINI7PH |
| Warranty: | 1 Year |
| Ship Weight: | 0.95 |
| Color: | Black |
| Availability: | Limited Stock |
| Condition: | New |
| USB Spec: | USB 3.2 Gen 1 |
| Max Data Rate: | 5 Gbps |
| Input Voltage: | 5V DC |
| Upstream Port: | USB 3.2G1 / 3.0 Type-B Female |
| Downstream Port(s): | 7x Type A USB 3.2 G1 / 3.0 |
| Screw Lock Compatible: |
No |
