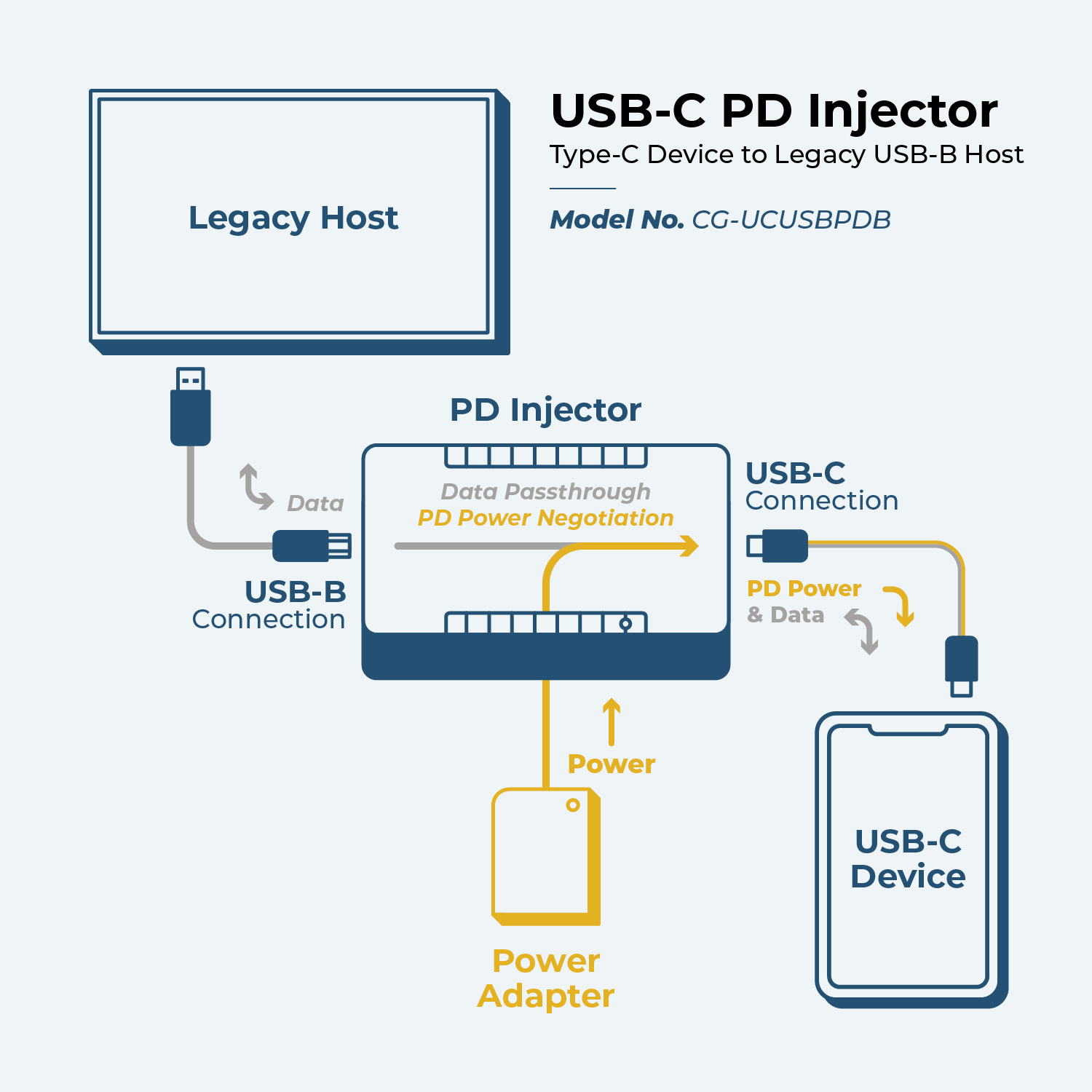

The new USB3.1 Type-C to Type-B Adapter is designed to add the Type-C featured devices for Type-B Host. It allows the new USB Type-C devices to be added to the legacy type-B Host.

The PD features provided by the USB-C to USB-B power delivery adapter can deliver power at up to 100 watts at 20 volts. This means that larger devices can now be charged from USB, including laptops and monitors.

With the fast growth of the Type-C standard, the USB-C to B PD adapter provides an ideal solution to expand your USB applications immediately and your investment.

USB-C to B PD adapter Features

• Compliant with USB3.1 Gen 1 and Gen 2
• One Type-C Connector Supports DFP Devices
• One Type-B USB3.1 Gen 1/Gen 2 UFP Connector for Host
• Supports USB PD (Power Delivery), work as a Source

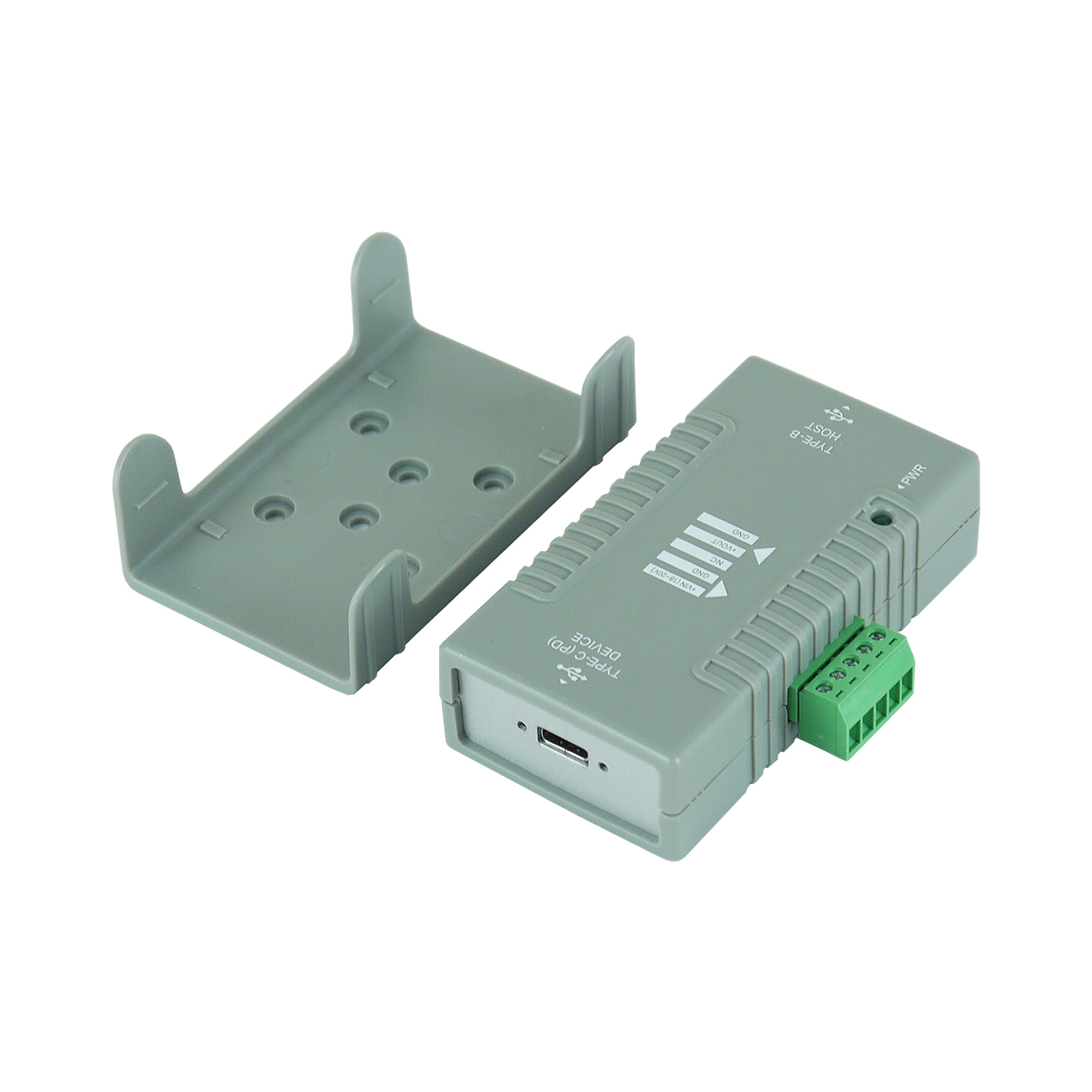

• Detachable Mounting Kit for Wall or DIN Rail Mounting Options
• Supports Type-C and Type-B Screw Lock Cables
• DC Power Input: 18~20V DC, from DC Jack or TB
• Provides Negotiated Power Output over TB
• Detect USB Cable Plug Attach
• Cable Orientation and Role Detection
• Assign CC and VCONN Pins
• Provides 4 Source PDOs (Power Data Object)

Specifications

System: For USB3.1 Type-C Devices and Type-B USB3.1 Gen 1, Gen 2, USB2.0 and USB1.1 Host Ports.

USB3.1 ports Provides 1 Type-C downstream and 1 Type-B upstream USB3.1 Gen 1/Gen 2 ports:

• Supports USB Type-C PD Features
• Supports Type-C Downstream Ports (Device)
• Supports reversible Type-C ends
• Supports USB3.1 Gen 1 and Gen 2 Data Rates

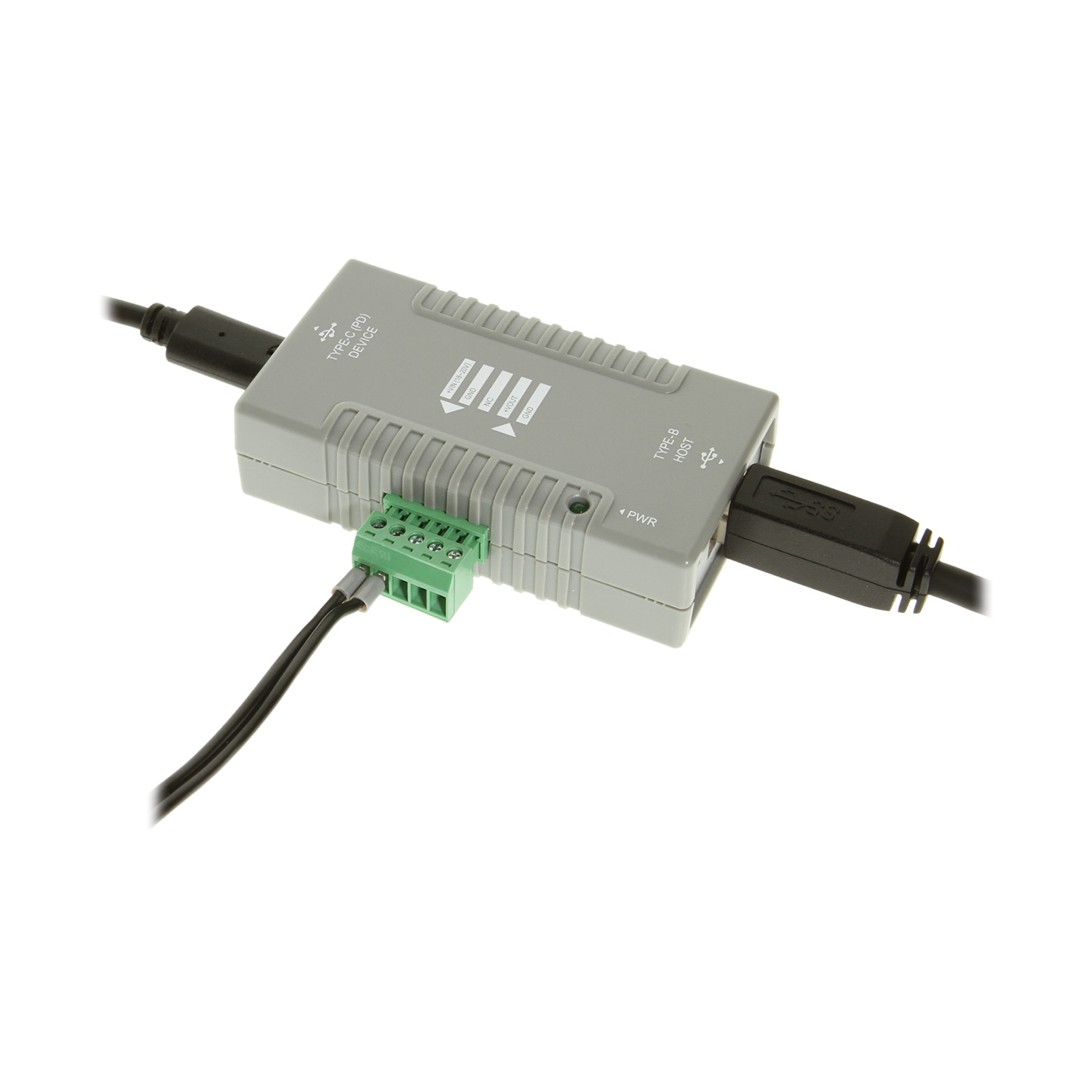

• Supports Screw Lock Type-C and Type-B USB cables
• Supports Default 4 Source PDOs: 20V/5A, 14.5V/2A, 12V/3A and 5V/3A
• Supports Type-B UFP Hosts
• Power Input: 18~20V DC From DC Jack or Terminal Blocks
• Output Negotiated Power over Terminal Blocks
• Detachable Mounting Kit for Wall or DIN Rail Mounting Applications

USB Devices Supports tablets, laptops, keyboards, mice, monitors, printers, scanners, PC Cameras, smartphones, hard drives, joysticks, virtual reality helmets, modems, PBX and many more USB devices

I/O Hardware

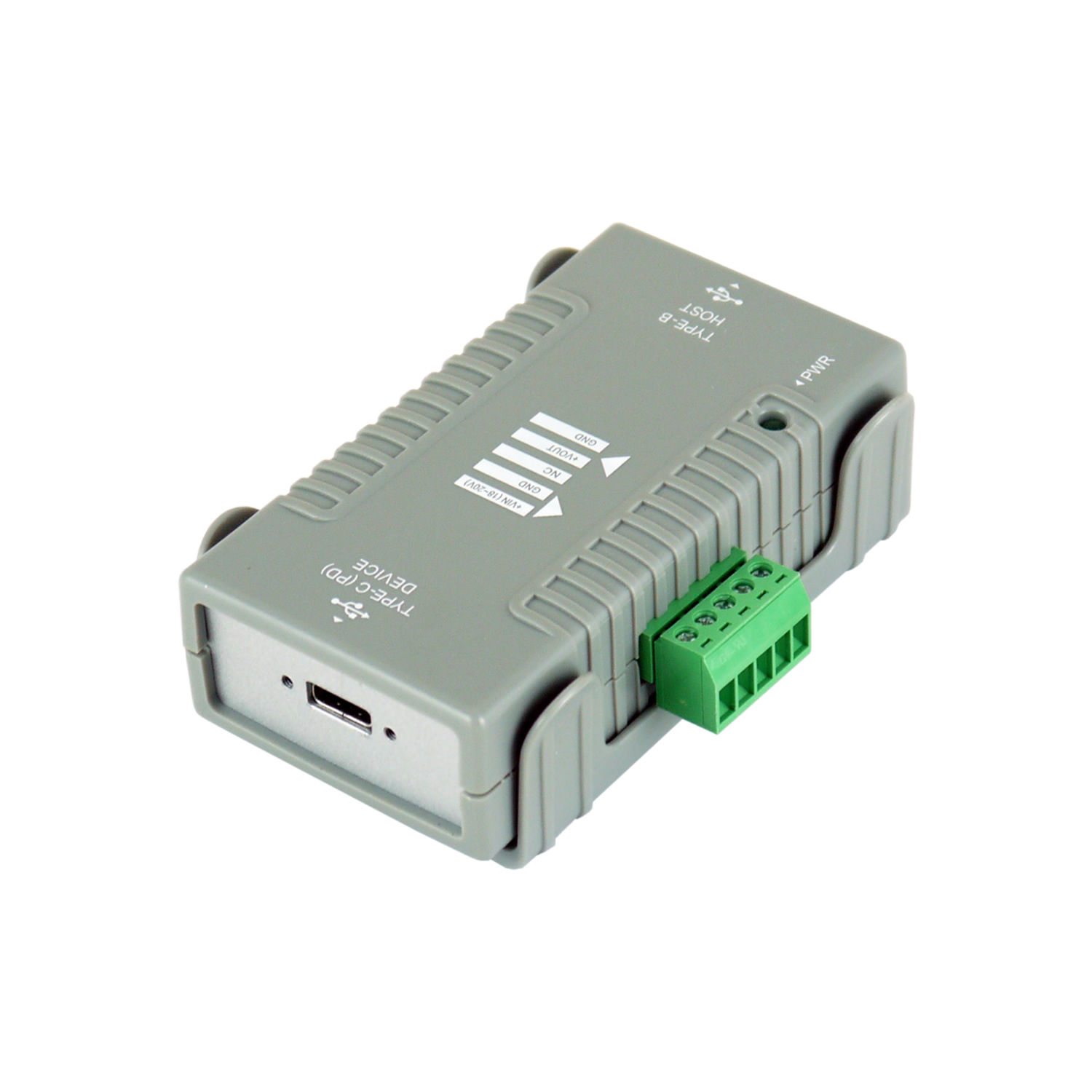

• Downstream: Type-C connector x 1 (supports PD)
• Upstream: Type-B connector x 1

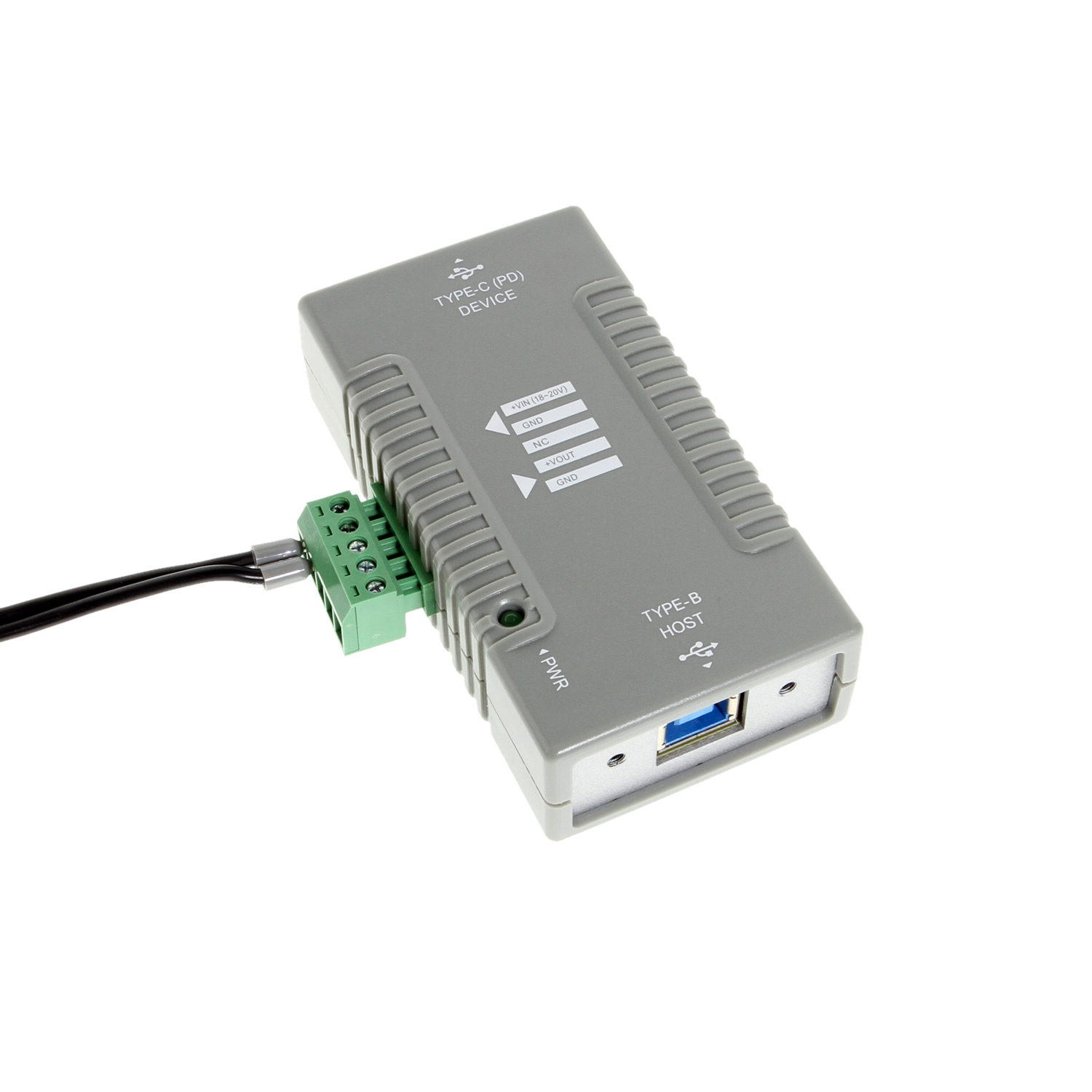

• 5-pin Terminal Blocks: Power input and negotiated power output

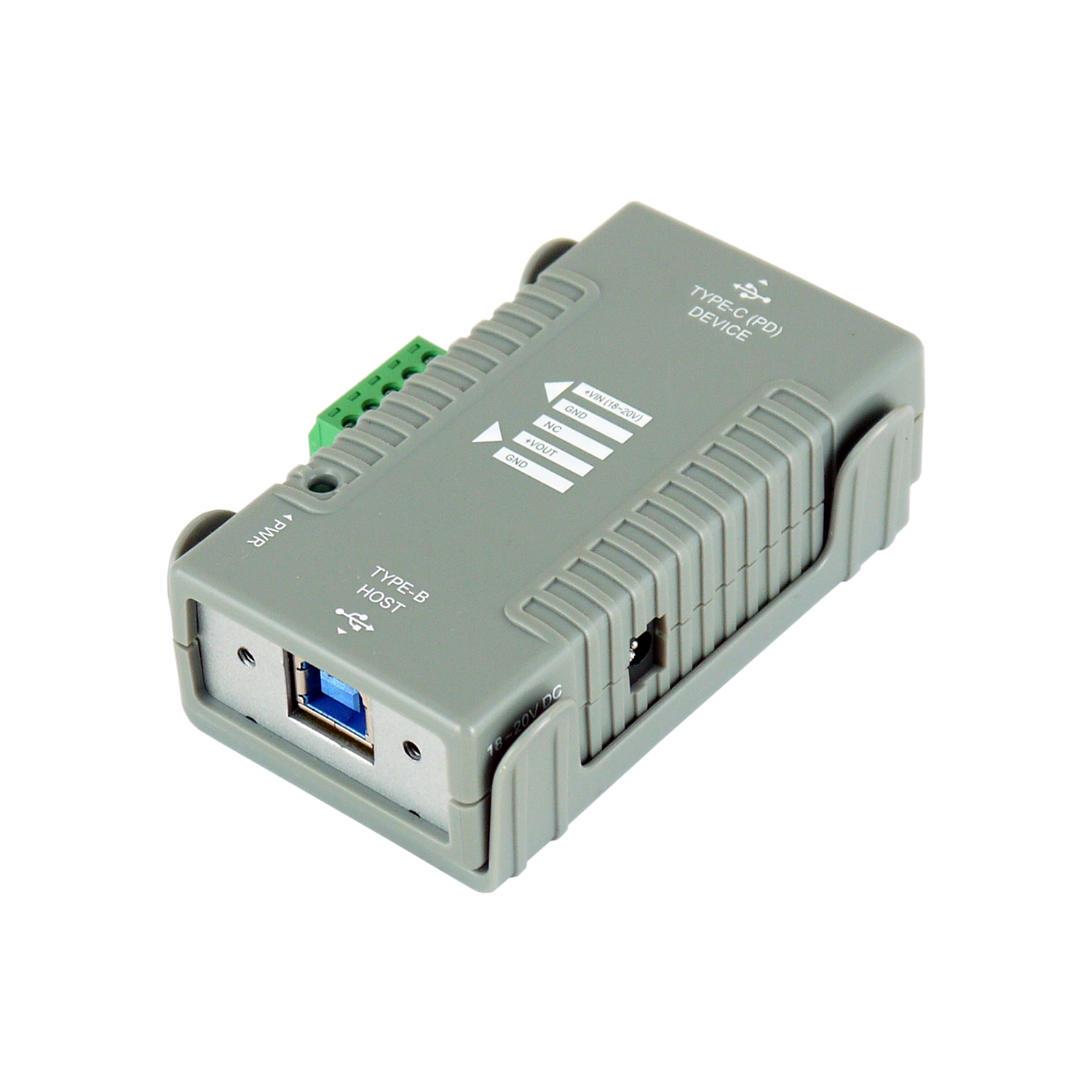

• DC Jack: Power input connector

Environmental:

• Operating Temp.: 0 to 55°C (32 to 131°F)
• Storage Temp: -20 to 85°C (-4 to 185°F)
• Operating Humidity: 5 to 95% RH

Form Factor

3.24in(L)x1.74in(W)x0.87in(H) (8.23 x 4.42 x 2.22 cm)
