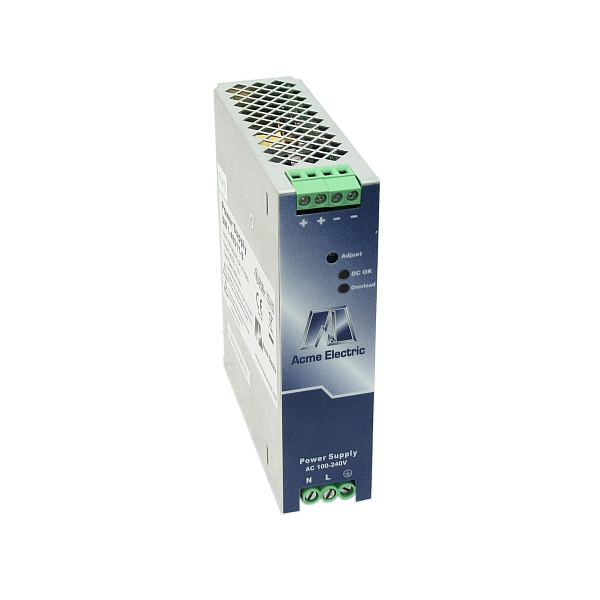

The 72 Watt Din Rail power supply has a narrow profile similar to its 80 Watt counterpart minimizing mounting space needed when on the Din Rail. This power supply is a quality single phase power supply boasts space efficiency in control cabinet powered systems. The small and powerful power supply is encased in a rugged metal enclosure with a quick tool-less clip on mount for an easy install on the rail. The Din Rail power supply operates via terminal connections and features a wide range of working temperatures benefiting high demand applications.

Din Rail 72W Power Supply Features

• Narrow width conserves valuable space on the DIN Rail
• Meets SEMI F47-200
• Industrial design with easy, snap-on mounting to Din Rail
• High peak power eliminates the need to oversize your power supply
• 20ºC to +60ºC operation without degrading
• Universal input 90-264 VAC, 50/60 Hz without voltage gaps for full product application versatility
• UL508 listed for use at full-rated power
• Adjustable output voltage compensates for voltage drop
• Power Factor Correction – meets EN61000-3-2
• Power boosting circuitry
• Fully enclosed touch-safe enclosure and terminals
• Certified to UL, TUV and CE safety standards for use worldwide
• “DC OK” LED indicator identifies local output status
• Most models capable of parallel connection to provide redundancy for critical load applications
• Overload and short circuit protection
• Rugged metal case
• RoHS compliant

Specifications

• Total power: 72 Watts
• Input current: 2.7 - 1.0 Amp
• Inrush current: < 25 Amp
• Efficiency: 87%
• Output voltage: 12 VDC
• Output voltage Adj: 12-15 VDC
• Output current: 6.0 - 4.8 Amp
• Output peak power: 150% of rated power for 4 sec max.
• Overvoltage protection: Continuous Protection & Auto Recovery (125% - 135%)
• Operating Temp: -20˚C to +60˚C
• Safety approvals: UL508, CE, EN60950-1
• Status indicators: “DC OK” LED
• Connectors: Screw terminal, Input AWG 10-16, Output AWG 12-20
• Product Dimensions: 4.88(H) x 1.26(W) x 4.02(D)
