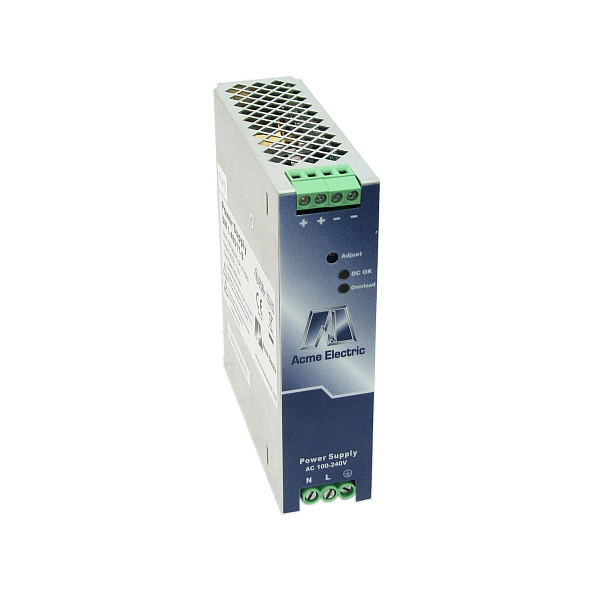

With a narrow profile that minimizes space consumption when mounted to the Din Rail, this single phase power supply boasts space efficiency in control cabinet powered systems. The small, powerful power supply is encased in a rugged metal enclosure with a quick tool-less clip mount for an easy install on the rail. The Din Rail power supply operates within a wide range of temperatures benefiting high demand applications and a long life span.

Industrial 80 Watt Power Supply Features

• Narrow width conserves valuable space on the DIN Rail
• Industrial design with easy, snap-on mounting to Din Rail
• High peak power eliminates the need to oversize your power supply
• 20ºC to +60ºC operation without degrading
• Universal input 90-264 VAC, 50/60 Hz without voltage gaps for full product application versatility
• Adjustable output voltage compensates for voltage drop
• Power Factor Correction – meets EN61000-3-2
• "DC OK" LED indicator identifies local output status
• Power boosting circuitry
• Fully enclosed touch-safe enclosure and terminals
• Certified to UL, TUV and CE safety standards for use worldwide
• UL508 listed for use at full-rated power
• Most models capable of parallel connection to provide redundancy
• For critical load applications
• Overload and short circuit protection
• Rugged metal case
• Meets SEMI F47-200
• RoHS compliant

Specifications

• Power: 80 Watts
• Nominal Input VAC: 120/208/240 Volts AC
• Input VAC: 90 to 264 Volts AC
• Phase (Input): 1 (single phase)
• Nominal Output VDC: 24
• Output VDC: 24~28
• Output Current: 3.4A
• Number of outputs: 1
• Input Volts-Auto ranging
• Output Voltage Adj: Yes
• Includes short circuit protection
• Includes power factor correction
• Efficiency: 90%
• Operating temperature: -4 to 140 degrees F
• Safety approvals: UL, CUL, CE
• Product Dimensions: 4.88(H) x 1.26(W) x 4.02(D)
