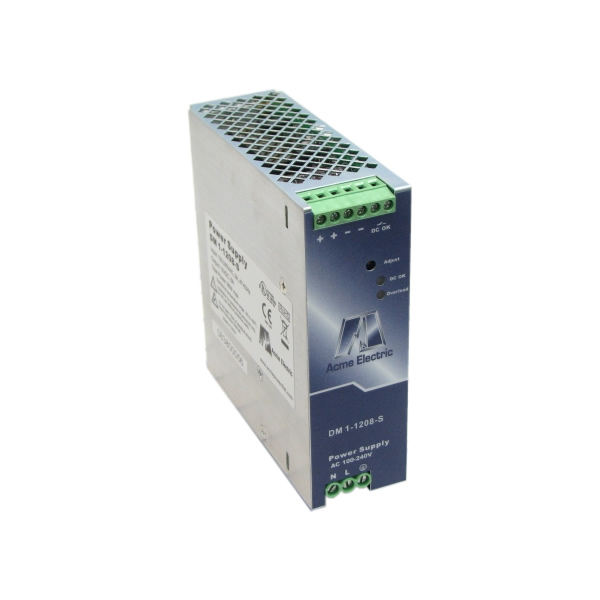

Giving rugged performance in a small package profile (40 mm wide enclosure) that minimizes space consumption when mounted to the Din Rail. No need for a large power source, this single phase 96 watt switching power supply boasts space efficiency in a control cabinet environment for powered systems. The powerful switching power supply is encased in a rugged metal enclosure with a quick tool-less clip mount for an easy install on the rail. The Din Rail power supply operates within a wide range of temperatures from -4 to 140 degrees F, benefiting high demand applications.

96 Watt Switching Power Supply Features

• Narrow width conserves valuable space on the DIN Rail
• High peak power eliminates the need to oversize you power supply
• Industrial design with easy, snap-on mounting to Din Rail
• 20ºC to +60ºC operation without degrading
• Power boosting circuitry
• Universal input 90-264 VAC, 50/60 Hz without voltage gaps for full product application versatility
• Adjustable output voltage compensates for voltage drop
• Power Factor Correction – meets EN61000-3-2
• “DC OK” LED indicator identifies local output status
• Power boosting circuitry
• Fully enclosed touch-safe enclosure and terminals
• Certified to UL, TUV and CE safety standards for use worldwide
• UL508 listed for use at full-rated power
• Most models capable of parallel connection to provide redundancy
• for critical load applications
• Overload and short circuit protection
• Rugged metal case
• Meets SEMI F47-200
• RoHS compliant

Specifications

• Power: 96 Watts
• Input current: 2.0 – 0.7 Amp
• Inrush current: < 15 Amp
• Efficiency: 89%
• Output voltage: 12 VDC
• Output voltage Adj.: 12-15 VDC
• Output current: 8.0 – 6.4 Amp
• Overvoltage protection: Continuous Protection & Auto Recovery (110% - 130%)
• Reverse Volt Protection: < 16 V
• Operating temperature: -20°C to + 60°C
• Safety Standards: UL508, CE, EN60950-1
• Status Indicators: “DC OK” LED
• Connectors: Screw terminal, Input AWG 10-16, Output AWG 12-20
• Dimensions: 4.88 (H) x 1.57 (W) x 4.45 (D) / 124mm x 40mm x 113mm
