10-Port USB Type-A 3.2 Gen 1 Hub - 15kV ESD Protection
Status: Available
Features
- Extensive Connections: Expand your host system’s peripheral capabilities with 10 USB Type-A ports.
- Reliable Protection: Keep your connections and peripherals safe with extensive ESD surge protection. Housed in a steel metal chassis, this hub is ready to tackle harsh industrial environments.
- Flexible Power: Power your way with a wide input voltage range of 9 ~24V DC. Power either via the included DC Barrel power supply or through a 3-Pin Terminal Block.
- Fast Data Transfers: Experience fast data transfer rates with USB Type-A ports offering 5Gbps.
- Upstream: USB Type-B
- Downstream:10 USB Type-A

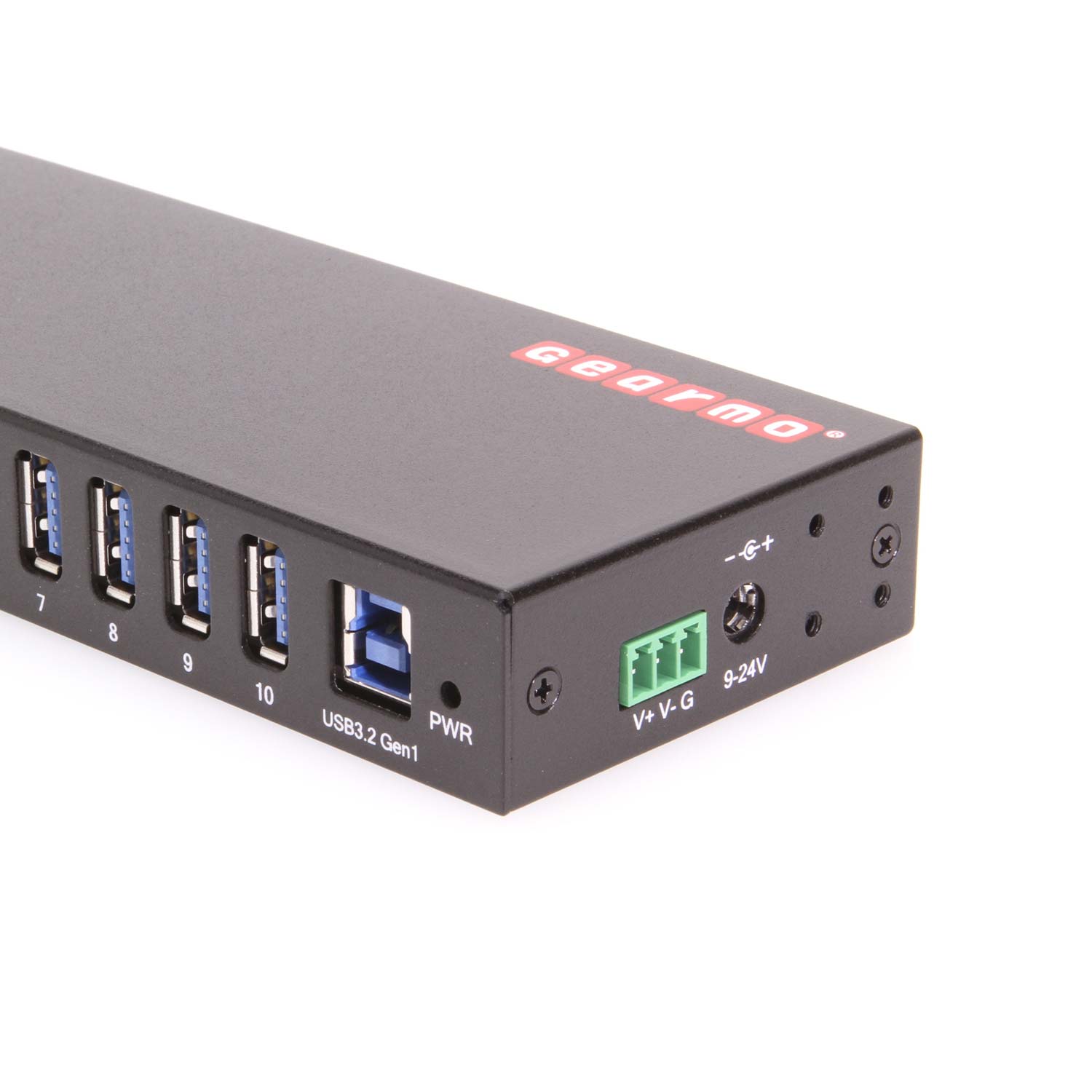

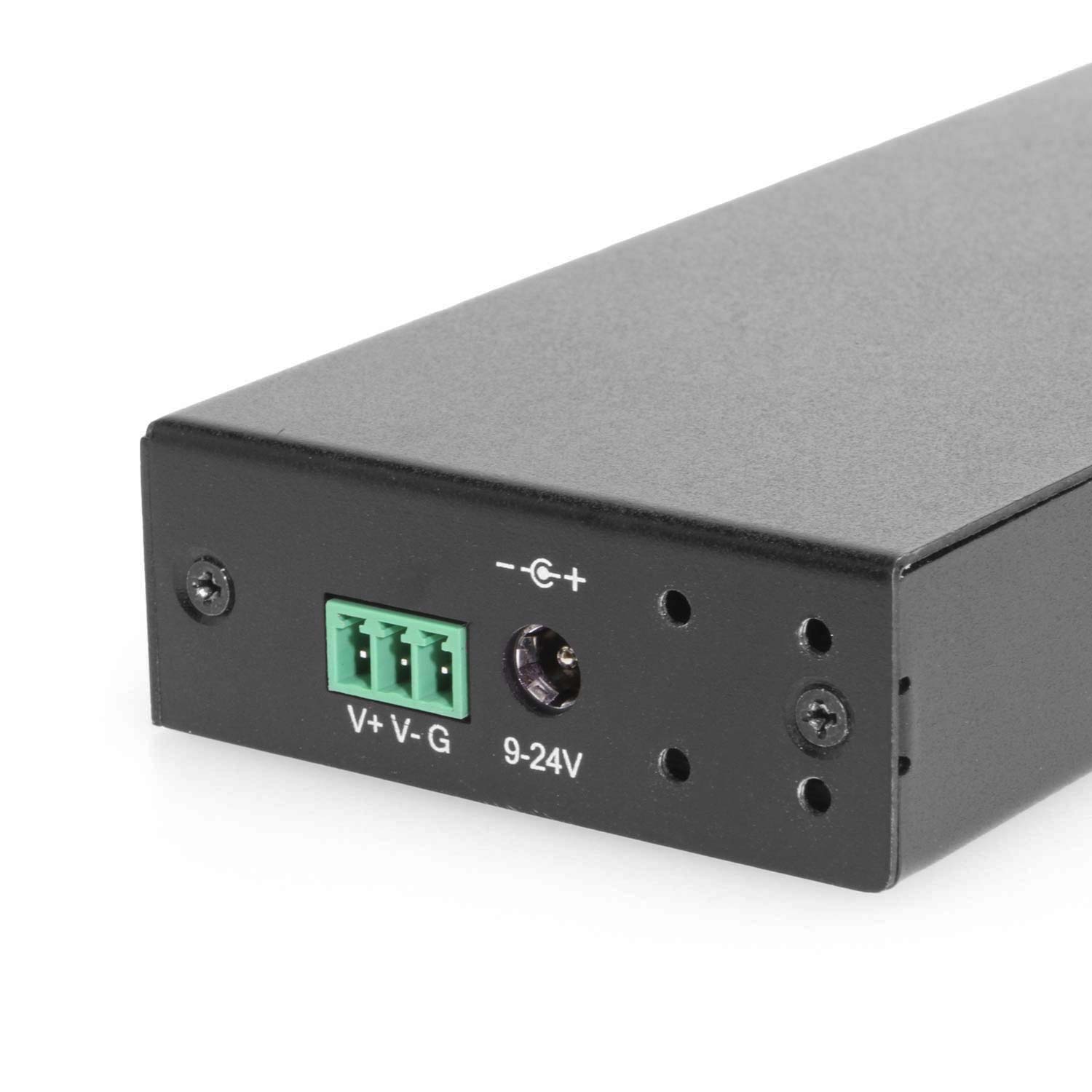

- Power Input: 3-Pin Terminal Block, DC Barrel

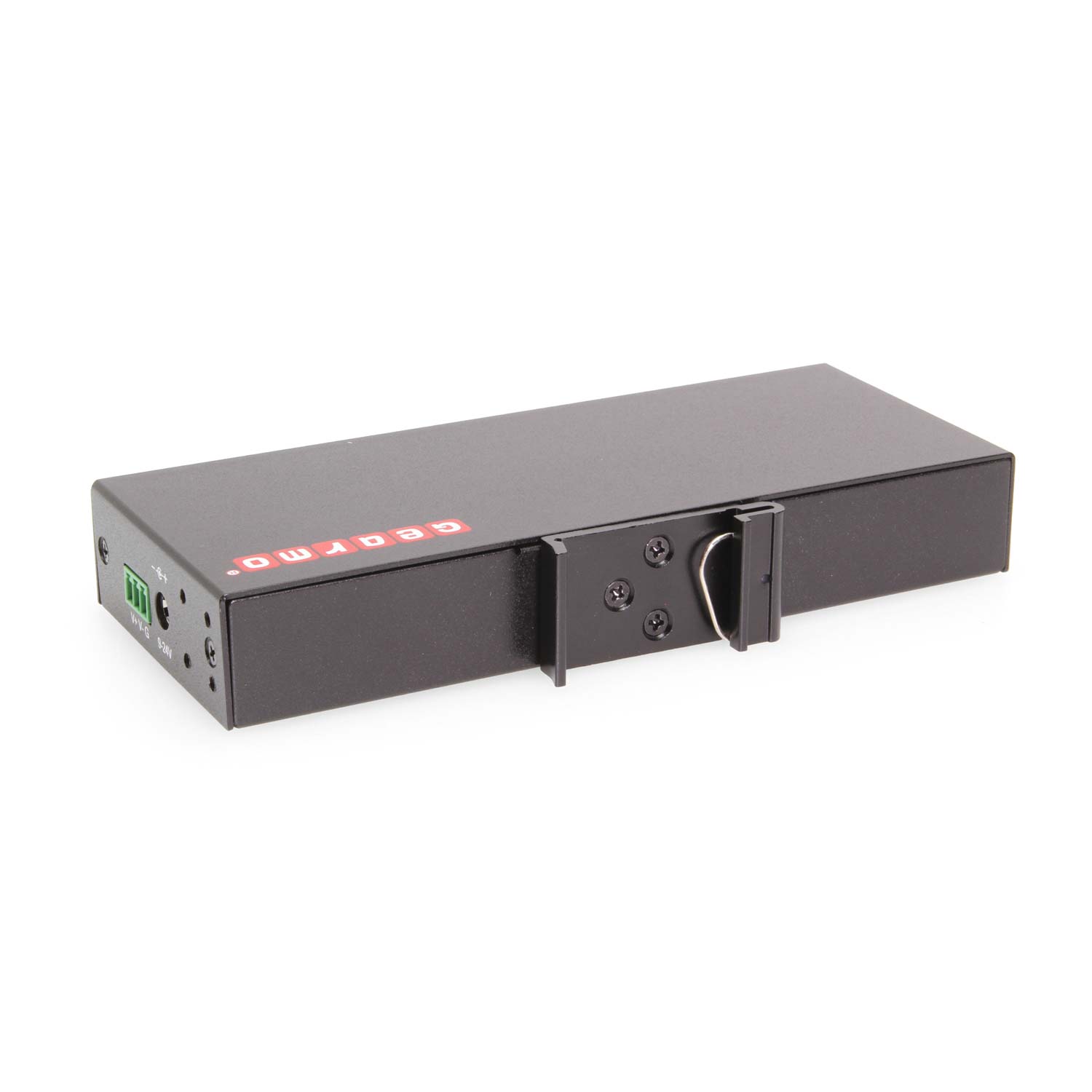

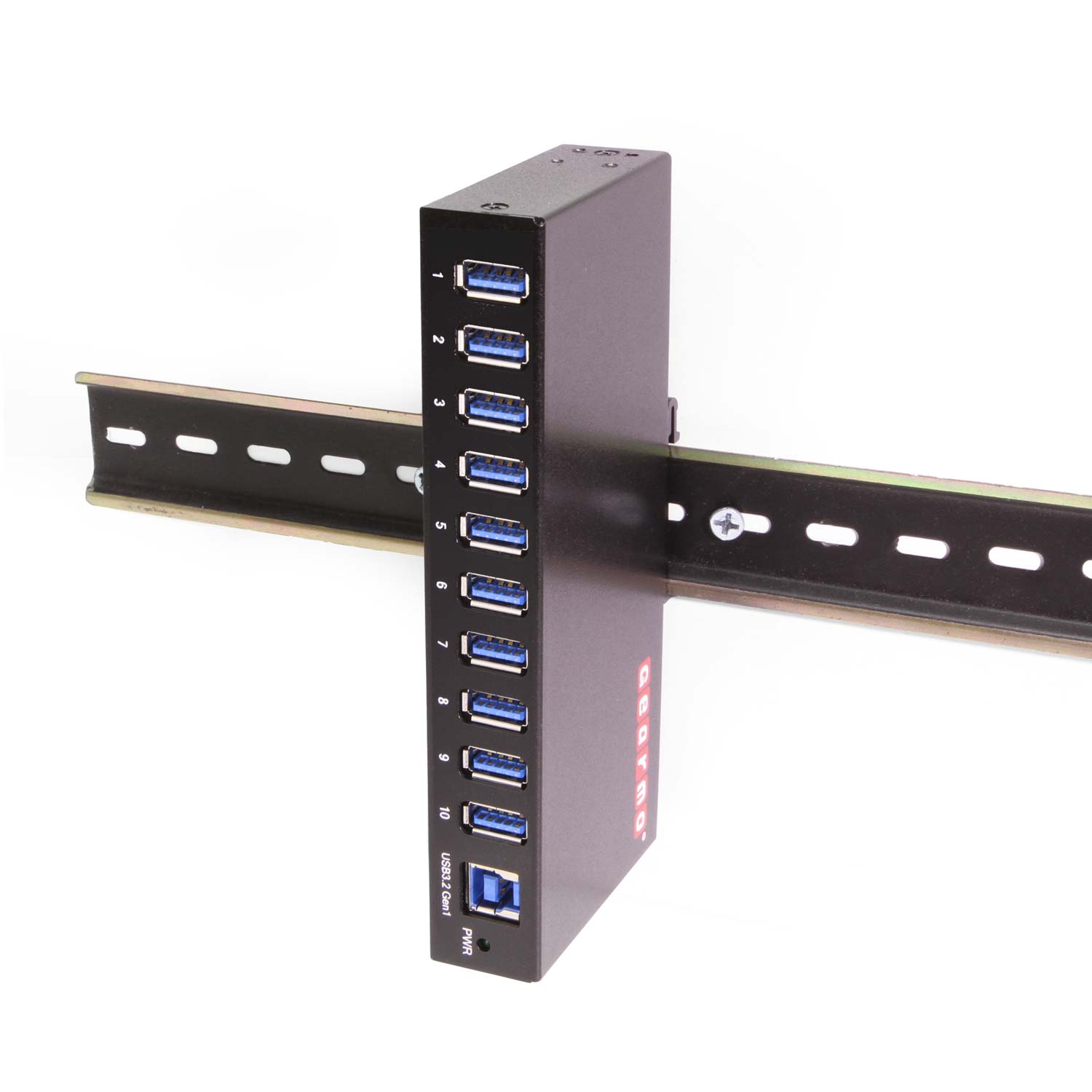

- Mounting Styles: Surface, Wall, and DIN-Rail
Compatibility
Product Documentation & Drivers
10-Port USB Type-A 3.2 Gen 1 Hub - 15kV ESD Protection
Compatibility
Documentation

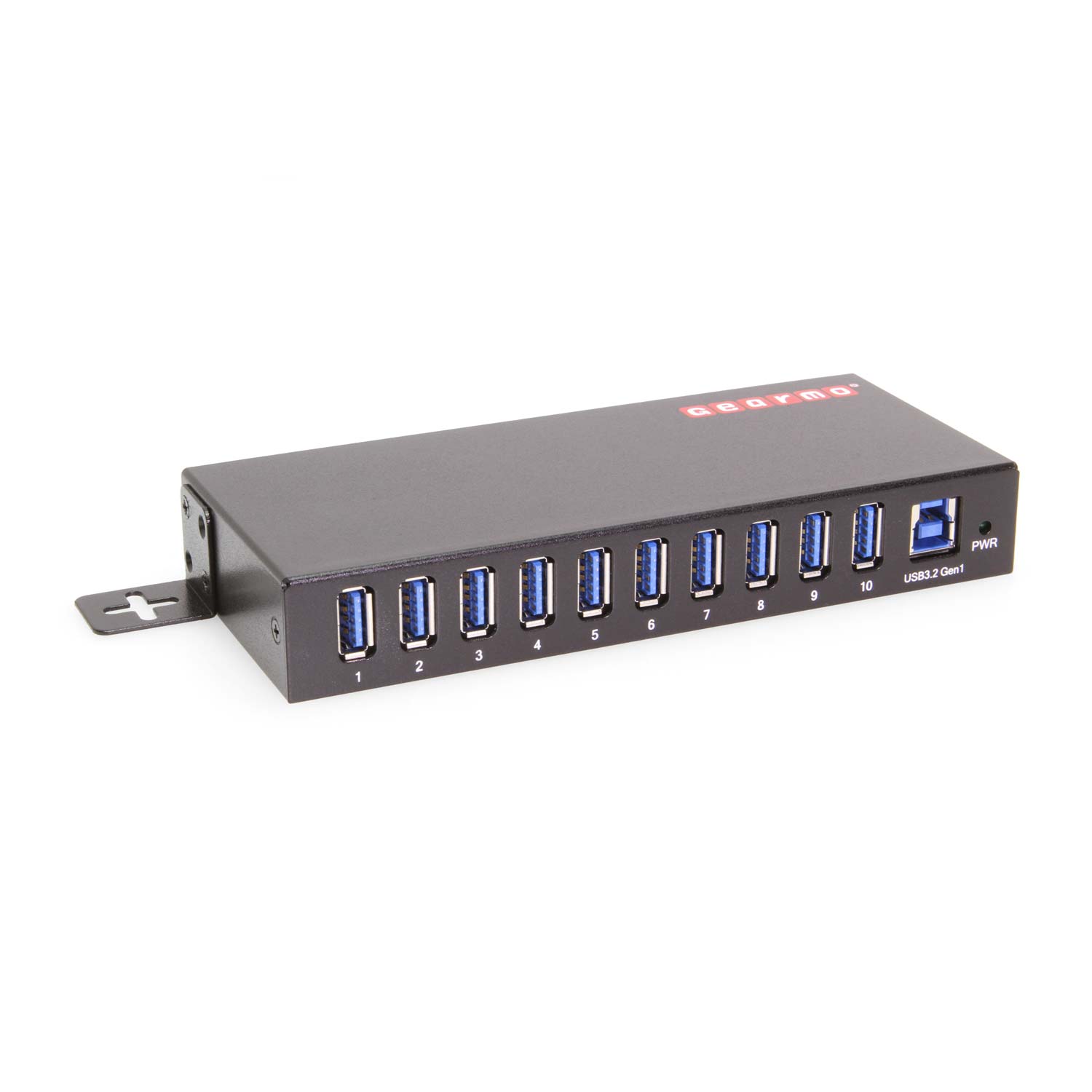

The GM-HU310A Gearmo USB 3.2 Gen 1 hub is an industrial metal hub with 10 downstream USB Type-A port. All ports, both downstream and upstream are conveniently located on the front facing panel. The GM-HU310A USB 3.2 Gen 2 hub includes mounting option hardware for both surface and DIN-Rail mounting. Compliant with USB 3.2 Gen 1 standards, data speeds up to 5Gbps can be achieved and is backward compatible with USB 2.0 and 1.1.
Features:
- Adds 10 3.2 Gen 1 compliant USB Type-A ports
- USB Type-A ports offer 5Gbps data transfer rate
- Rugged metal chassis with surface & DIN Rail mount support
- 9~24V DC power input with an included DC Barrel power supply
- LED indicators for each port to show connection confirmation
- Upstream USB Type-B port
- 15kV ESD protection for all USB ports

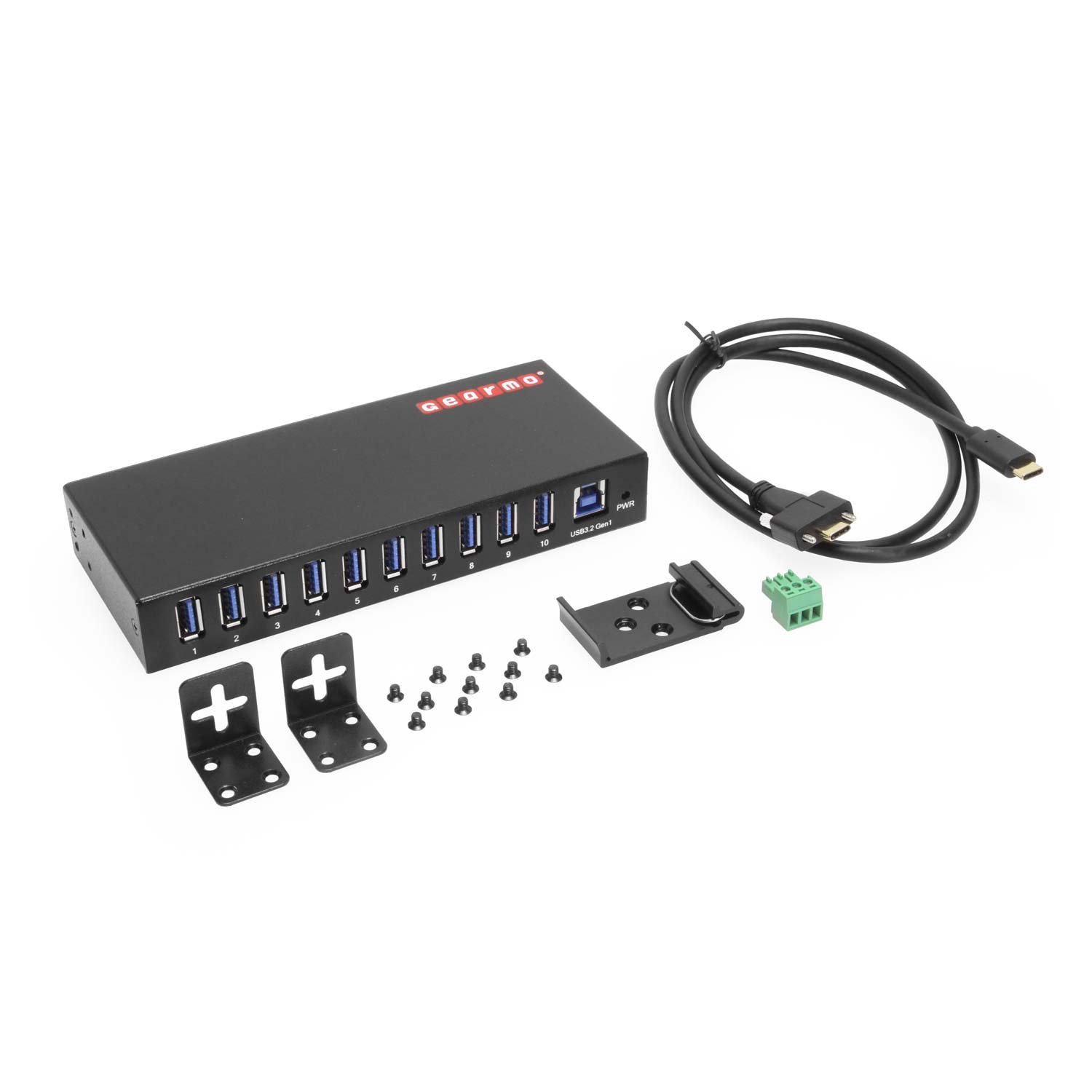

Package Contents:
- Industrial 10-Port USB 3.2 Gen Type A Industrial Hub
- User Manual
- USB Type-A to Type-B Cable
- DIN-Rail & Wall Mounting Kit
- 3-Pin Terminal Block
- Screw Package
Sometimes you need a product in a flash and just want to verify an item is in stock. Other times you have a specific question regarding a product, shipping method, or your order. Use the form below and we will help. Please refrain from spam, we only log this information to our database for 24-hours and then it's gone.
Specifications
| Manufacturer: | Gearmo | Warranty: | 1 Year | Availability: | Available |
| Barcode: | 045079164390 | Ship Weight: | 1.10 | Condition: | New |
| Part Number: | GM-HU310A | Color: | Black | Length/Size: | -- |
| USB Spec: | USB 3.2 Gen 1 | Max Data Rate: | 5 Gbps | Input Voltage: | 9 ~ 24V DC |
| Upstream Port: | USB 3.2G1 / 3.0 Type-B Female | Downstream Port(s): | 10x Type A USB 3.2 G1 / 3.0 | Screw Lock Compatible: |
No |
Specifications
| Manufacturer: | Gearmo |
| Barcode: | 045079164390 |
| Part Number: | GM-HU310A |
| Warranty: | 1 Year |
| Ship Weight: | 1.10 |
| Color: | Black |
| Availability: | Available |
| Condition: | New |
| USB Spec: | USB 3.2 Gen 1 |
| Max Data Rate: | 5 Gbps |
| Input Voltage: | 9 ~ 24V DC |
| Upstream Port: | USB 3.2G1 / 3.0 Type-B Female |
| Downstream Port(s): | 10x Type A USB 3.2 G1 / 3.0 |
| Screw Lock Compatible: |
No |
