USB 3.0 7 Port Rugged Hub with Power Adapter

High Speed 7-Port USB 3.0 Hub is designed as a Super-Speed, rugged, industrial style hub with power adapter. Its mounting brackets and DIN-Rail mount hardware are included. GearMo’s USB 3.0 7 Port Super-Speed metal hub supports 7 USB 3.0 upstream port connections and 1 USB 2.0 Type “A” to “B” Downstream from the host computer. The GM-HU37-PS supports UASP function (with Windows 8 native USB 3.0 Host driver only)

UASP is an acronym for “USB Attached SCSI Protocol”, this protocol is used to move data to and from USB storage devices including HDD, Thumb Drives, and Solid-State drives, and it uses the standard SCSI command set.

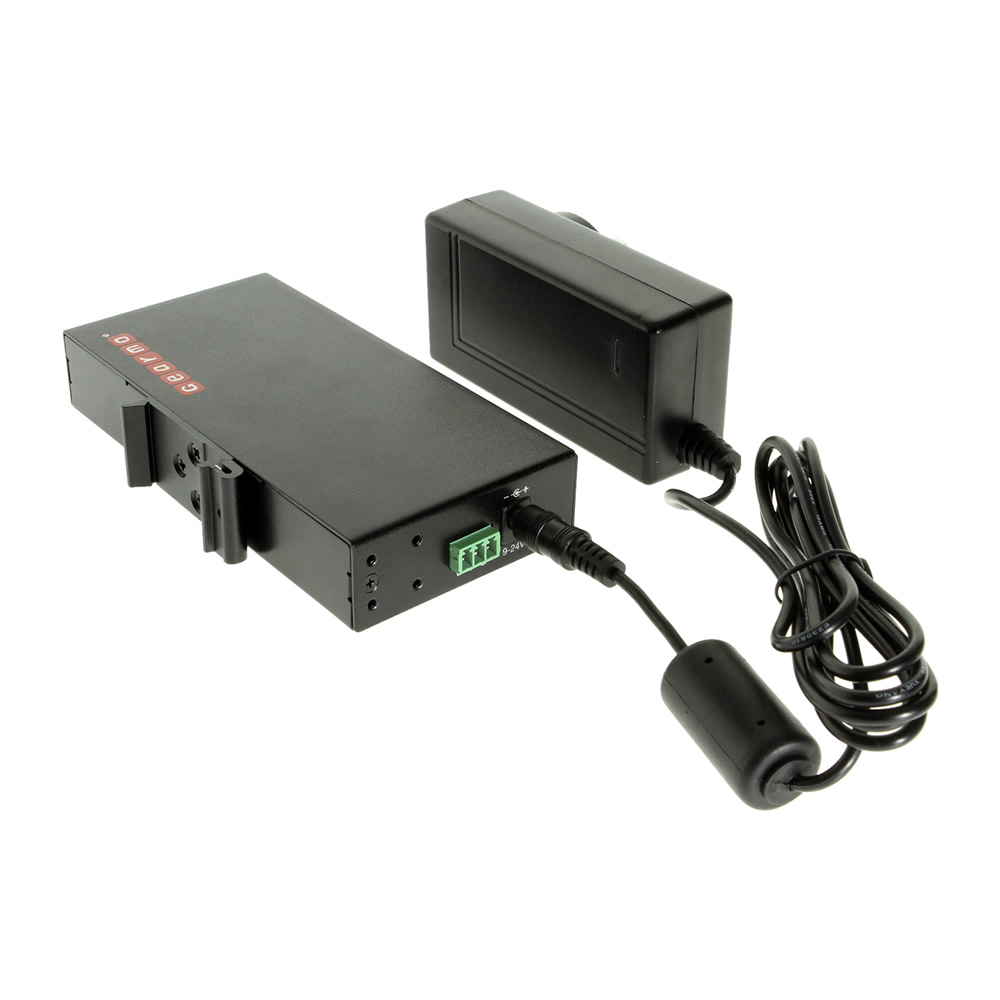

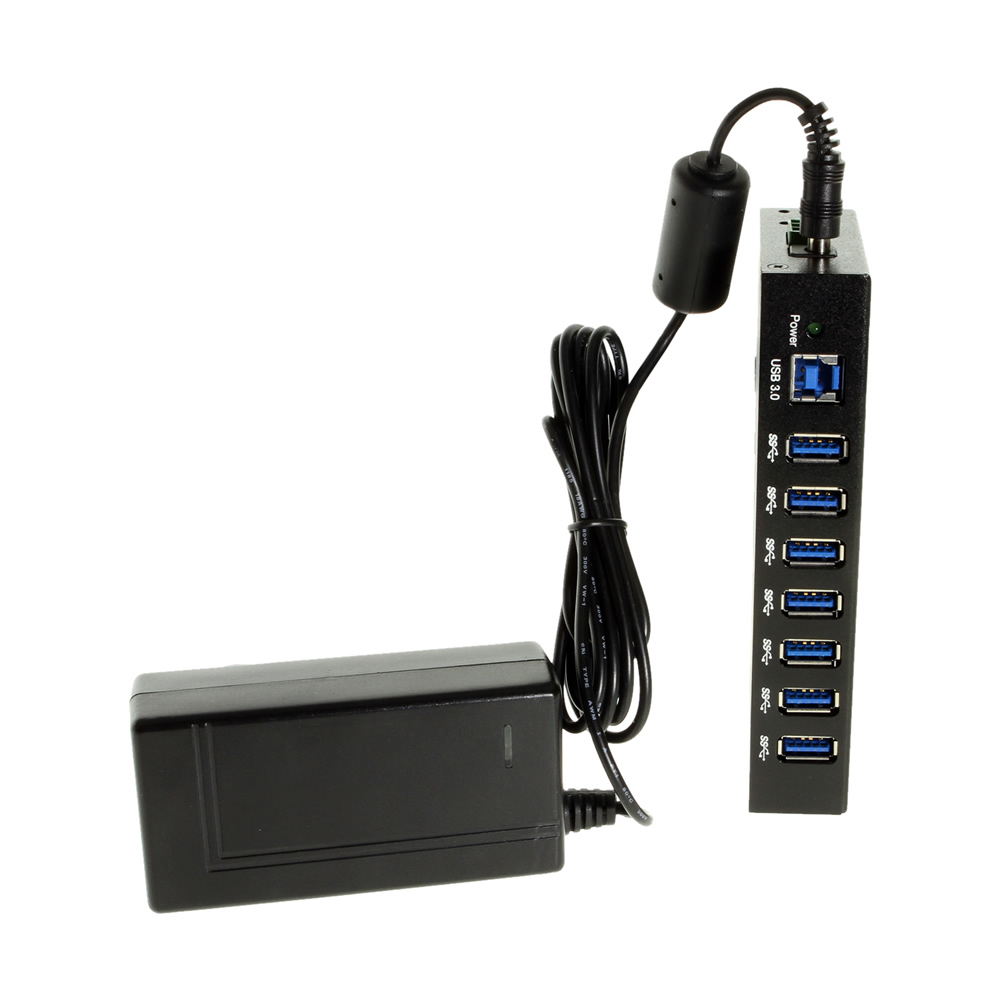

The USB 3.0 7-Port hub includes an optional 9-24V power jack receptacle for power consuming devices. It uses a separate 3-wire power connector for use with DIN-Rail mounted operations. The GearMo 7 port USB 3.0 industrial Hub includes independent over-current detection and, circuit protection, and Power input surge protection of 600W each port.

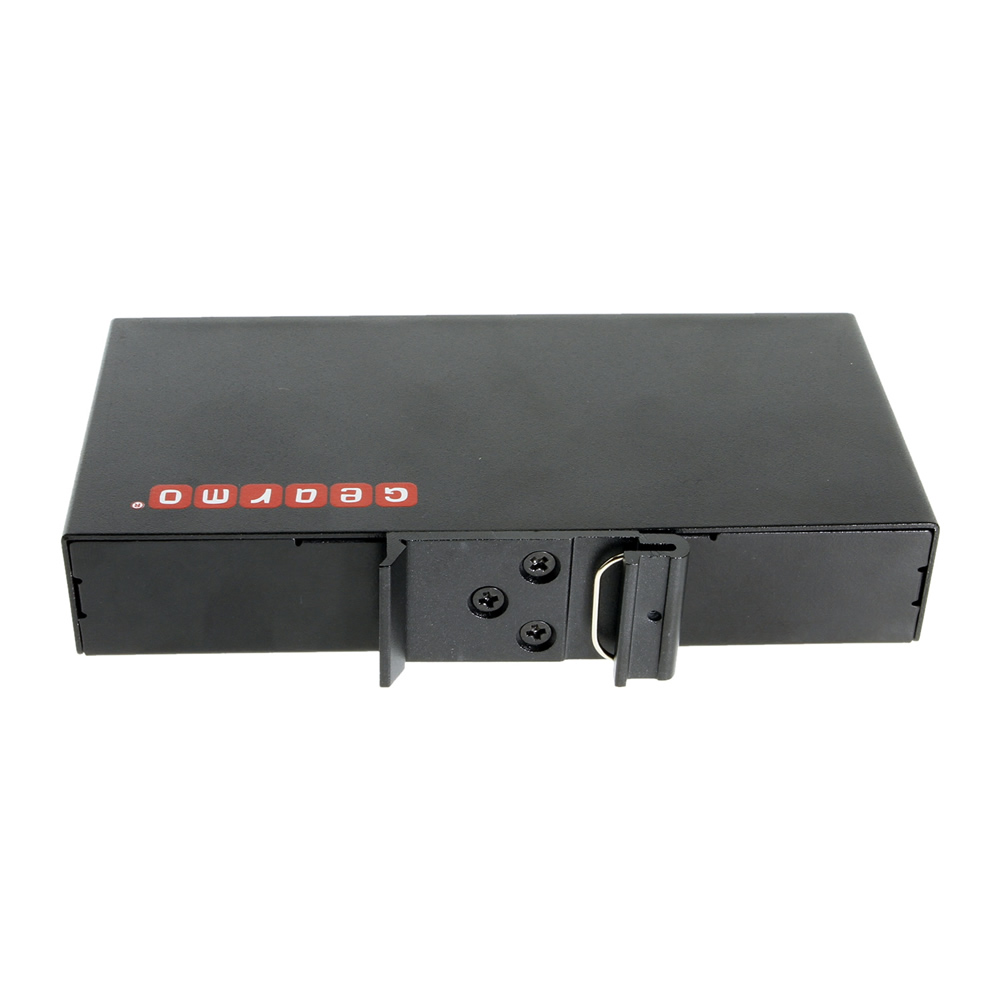

USB 3.0 7 Port Hub Mounting

The USB 3.0 7 port Hub has multiple mounting options available depending on its usage and can be mounted via mounting brackets or Din Rail clip included. The GM-HU37-PS USB 3.0 hub includes all necessary hardware to securely mount it where its applications are needed.

Hub Features

• Compliant with USB 3.0 Standards
• Adds 7 additional USB High Speed ports
• Industrial grade rugged metal enclosure design
• Redundant 9VDC to 24VDC power input
• 15KV ESD USB interface protection
• Power input surge protection (600W) for each port
• Over-current detection and protection circuit design
• Wall and DIN rail mount support
• Supports UASP function (with Windows 8 native USB 3.0 Host driver only)
• Item Dimensions: 257.9 (W) x 170.2 (D) x 60.6mm (H)

Technical Specifications

• Chipset: VL811 + B2 chipset
• Supports UASP function (with Windows 8 native USB 3.0 Host driver only)
• Compliant with Universal Serial Bus 3.0 Specification
• Maximum data transfer rate: 5Gbps
• Surge Protection: 600W (max)
• Metal housing with mounting mechanism
• Interfaces/Ports:
  • Input: 1, 9-pin, USB 3.0, Type B, Female
  • Input: 1, Terminal block (3-Wire), Power
  • Input: 1, DC power adapter jack (power adapter not included)
  • Output: 7, 9-pin, USB 3.0, Type A, Female

Operating system support

• Windows 7, 8, Windows 10
• Mac OS X and Linux

Power Requirements

• Input voltage: 9VDC~24VDC
• Output current: 900mA per port (max)
• Power consumption: 3.6W
