SuperSpeed USB 3.2 Gen 1

Industrial 7-Port USB 3.2 Gen 1 Metal Hub Variable 7-24Volt AC/DC Power Input Din Rail Mountable Compact Size Steel Chasis
Fast GL 3520 Chip Inside and Maximum Power per port of 1.5Amp (great for charging Ipads/Phones/Etc.)

• Compliant with USB 3.2 Gen 1 Specification Revision 1.0
• Built-in Single Chip USB 3.2 Gen 1 Hub Controller
• Metal Case, Ideal for Critical Applications
• Supports Screw Lock Features for both Upstream and Downstream USB Ports
• One Up-stream Port (Type-B) Support Super-speed, High-speed and Full-Speed
• 7 Down-stream Ports (Type-A) Support Super-Speed,  High-speed , Full-speed and Low-speed Traffic
• Supports 7 Concurrent Non-periodic Transactions
• Supports Self-powered and Bus- powered Mode
• Supports Downstream Port Status with LED

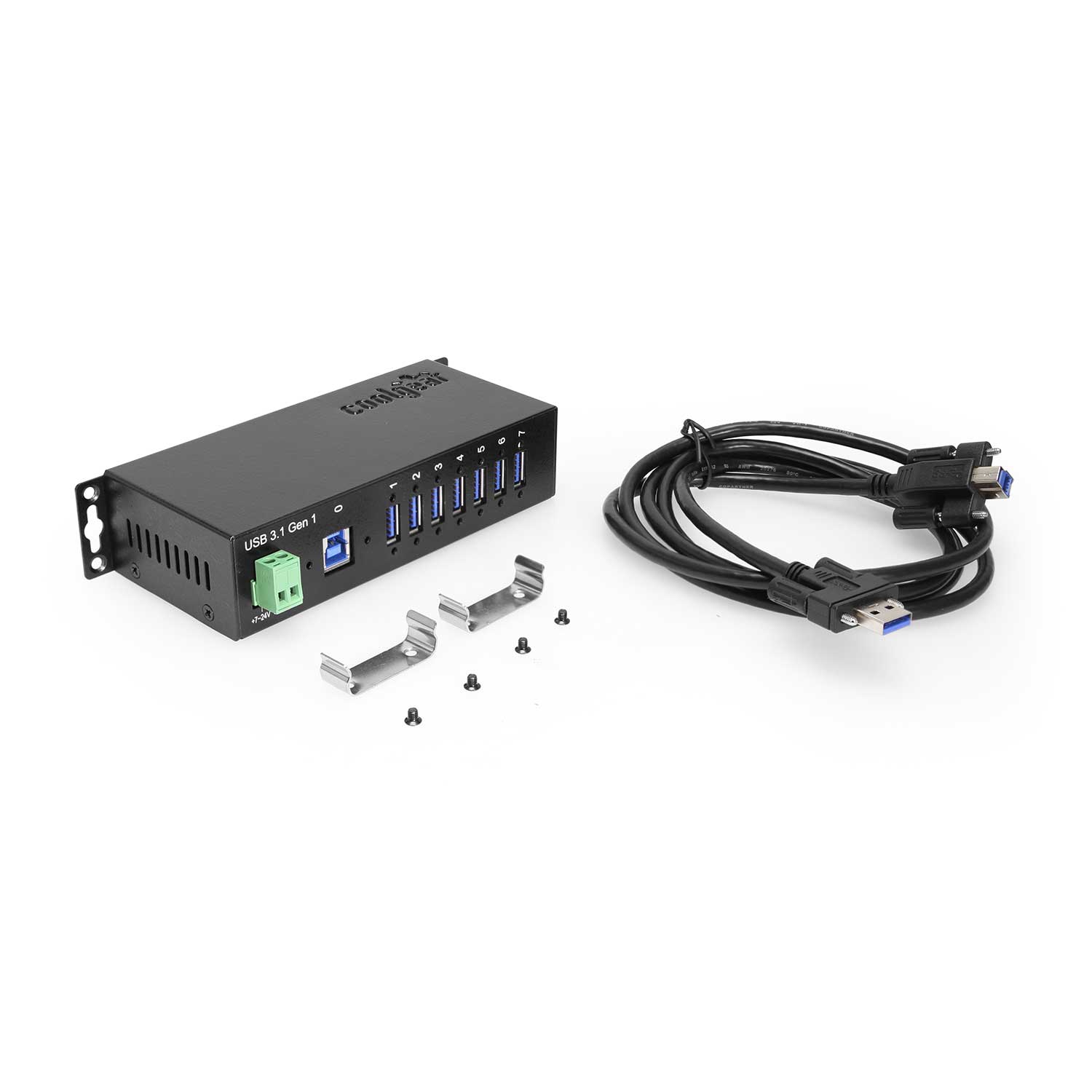

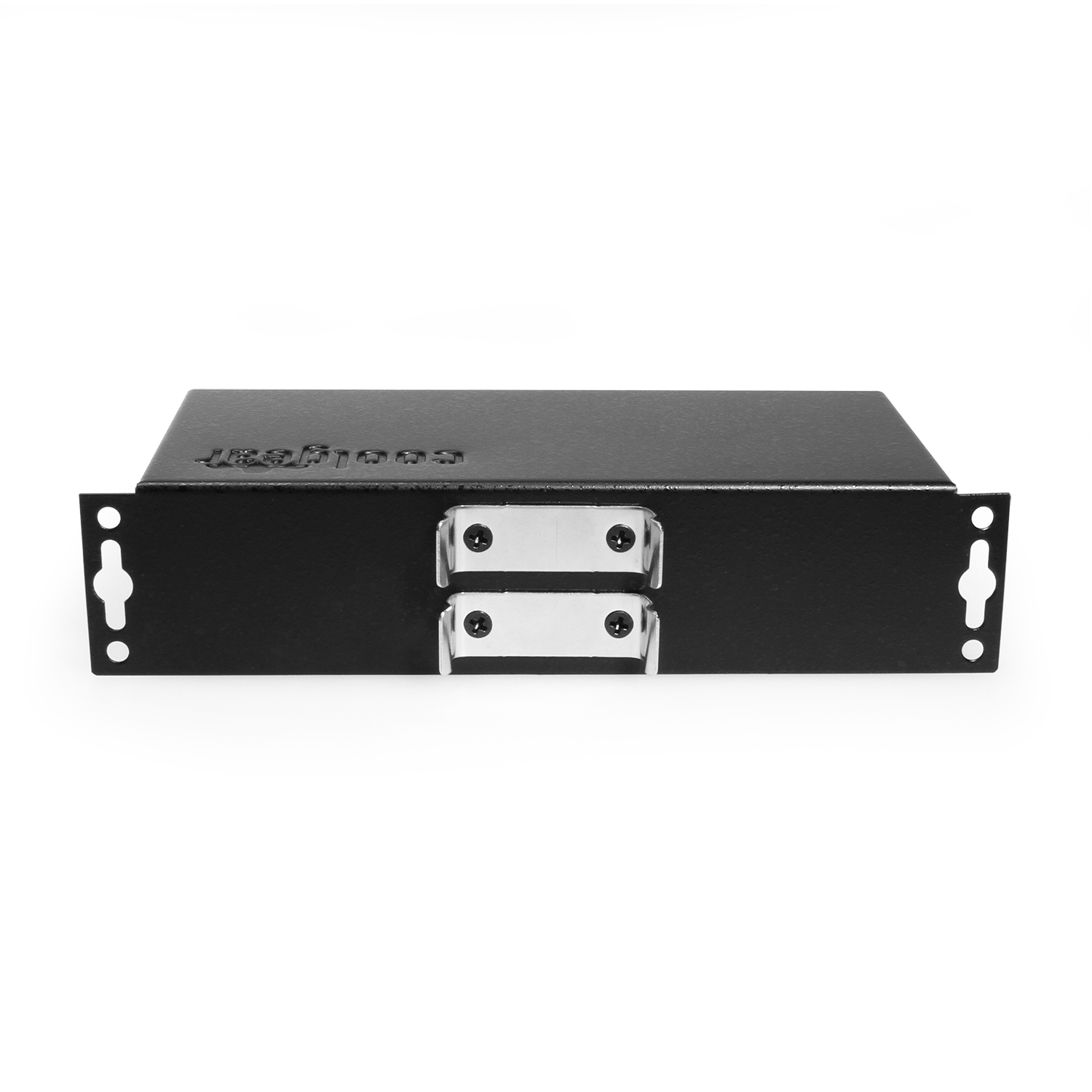

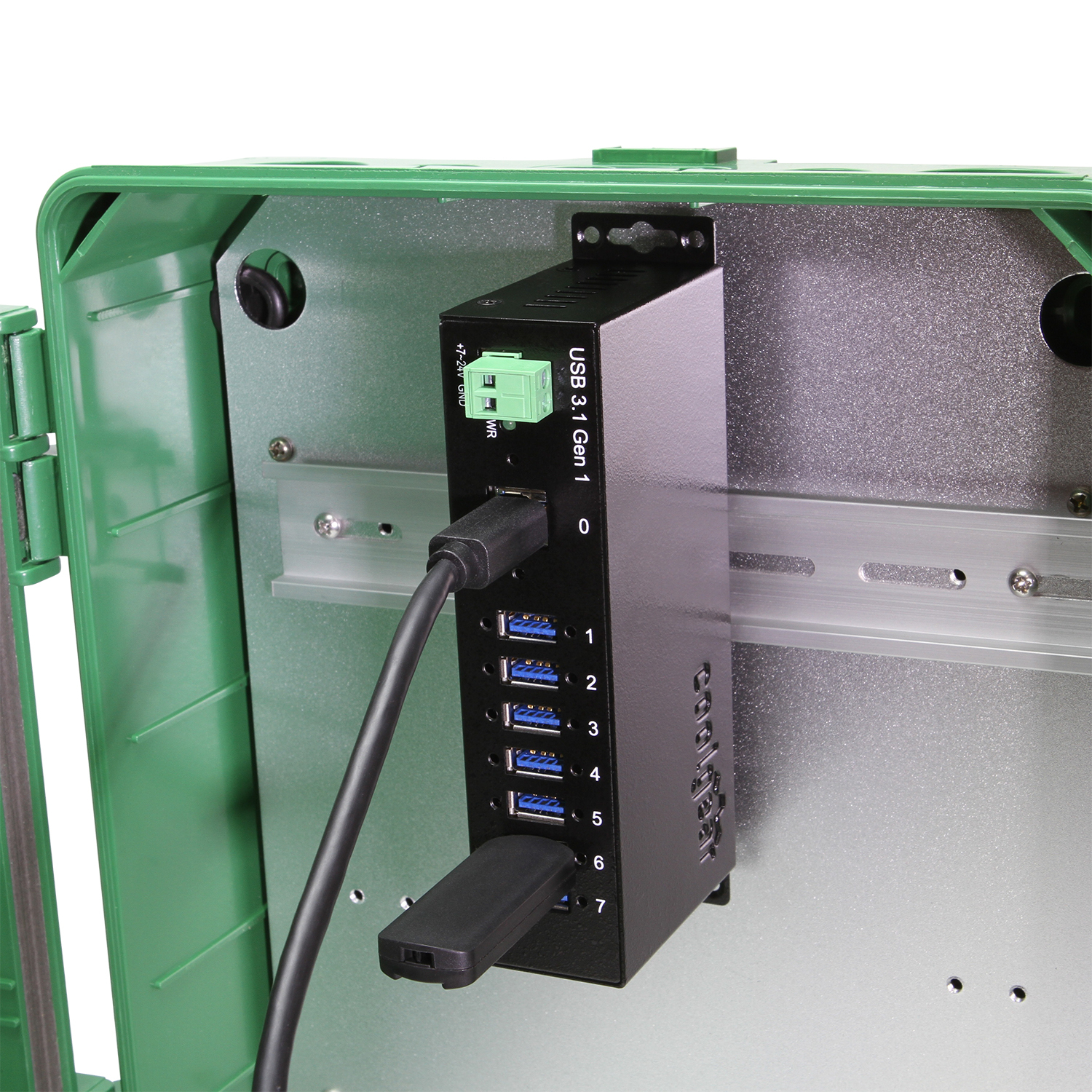

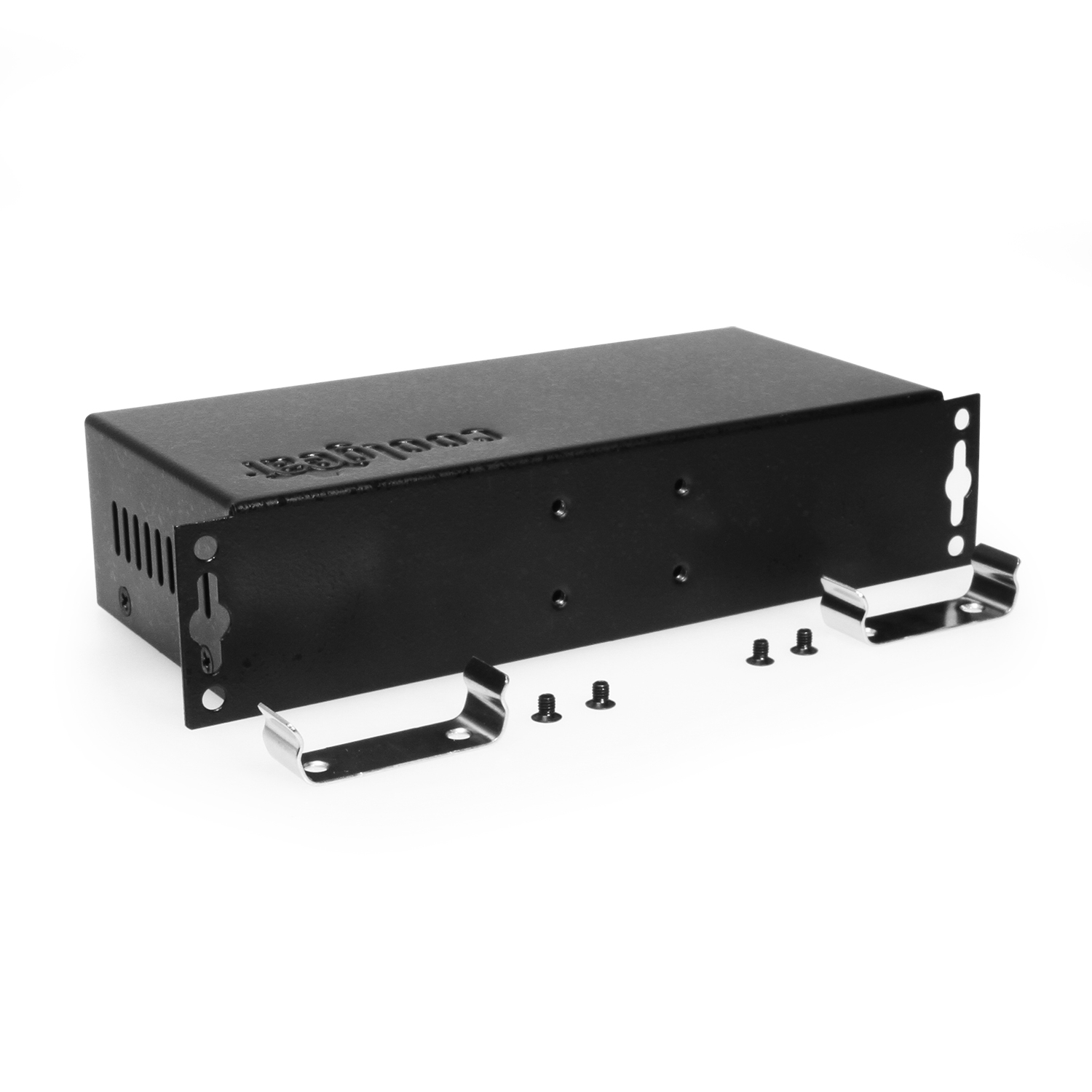

• Optional DIN RAIL Mounting Kit

Intoduction

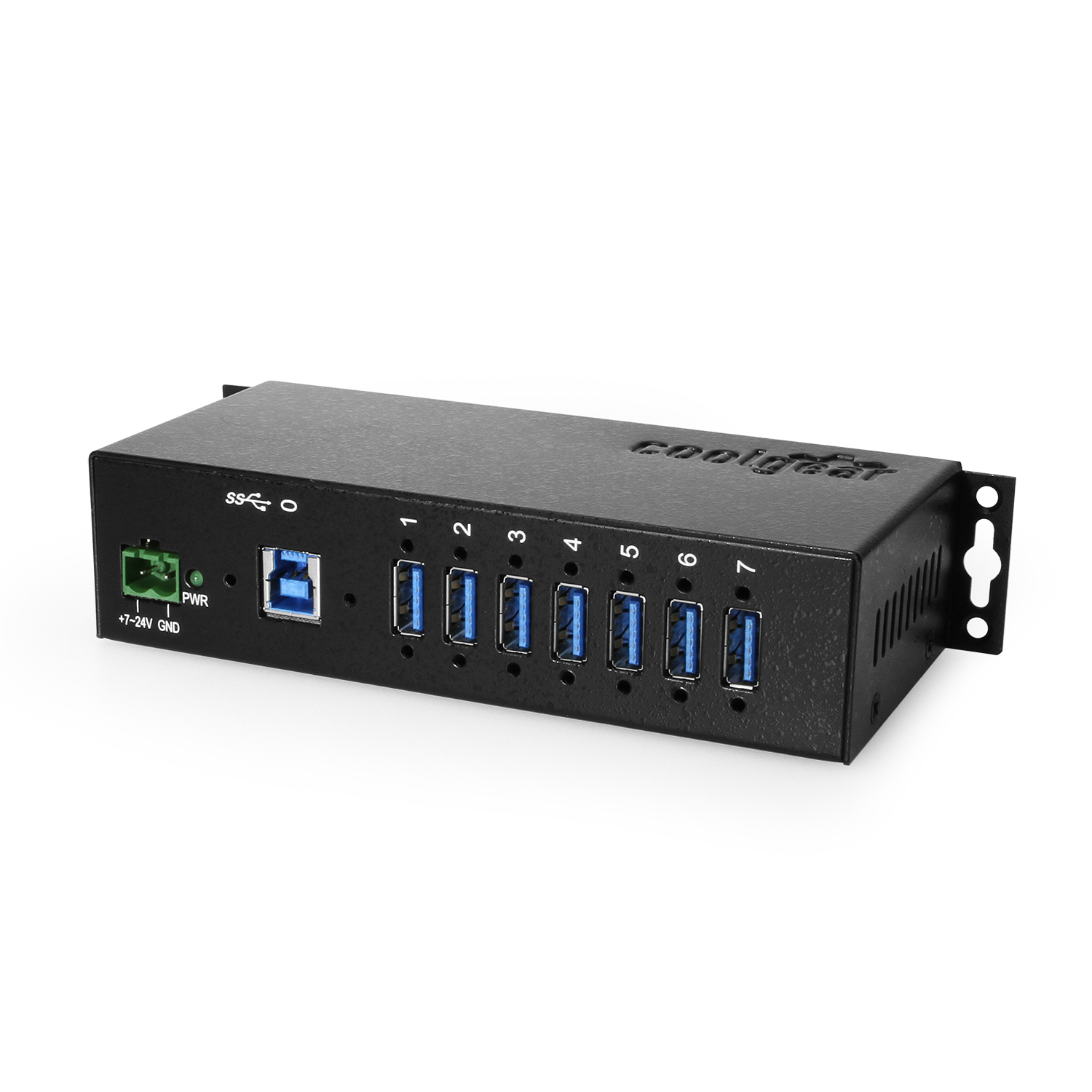

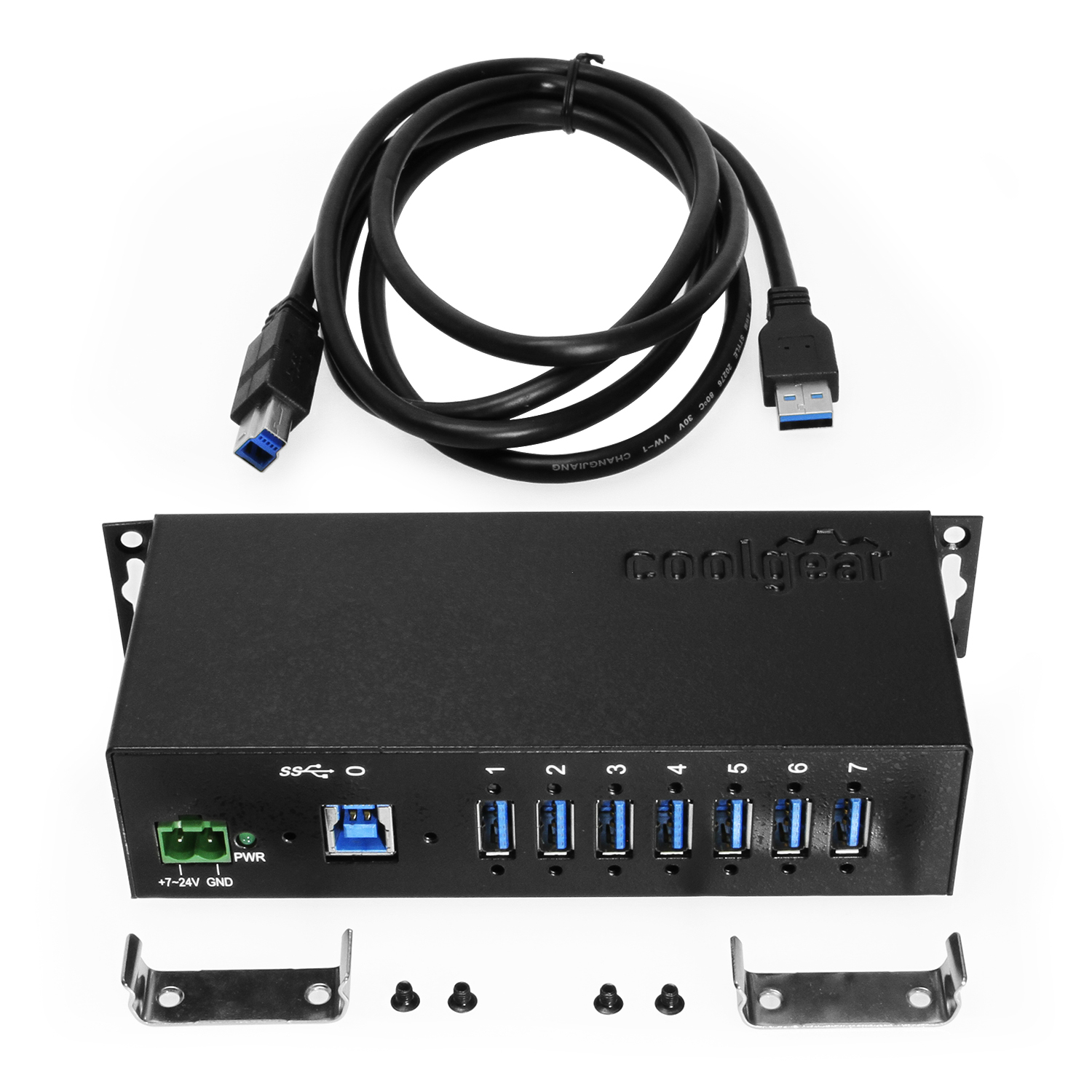

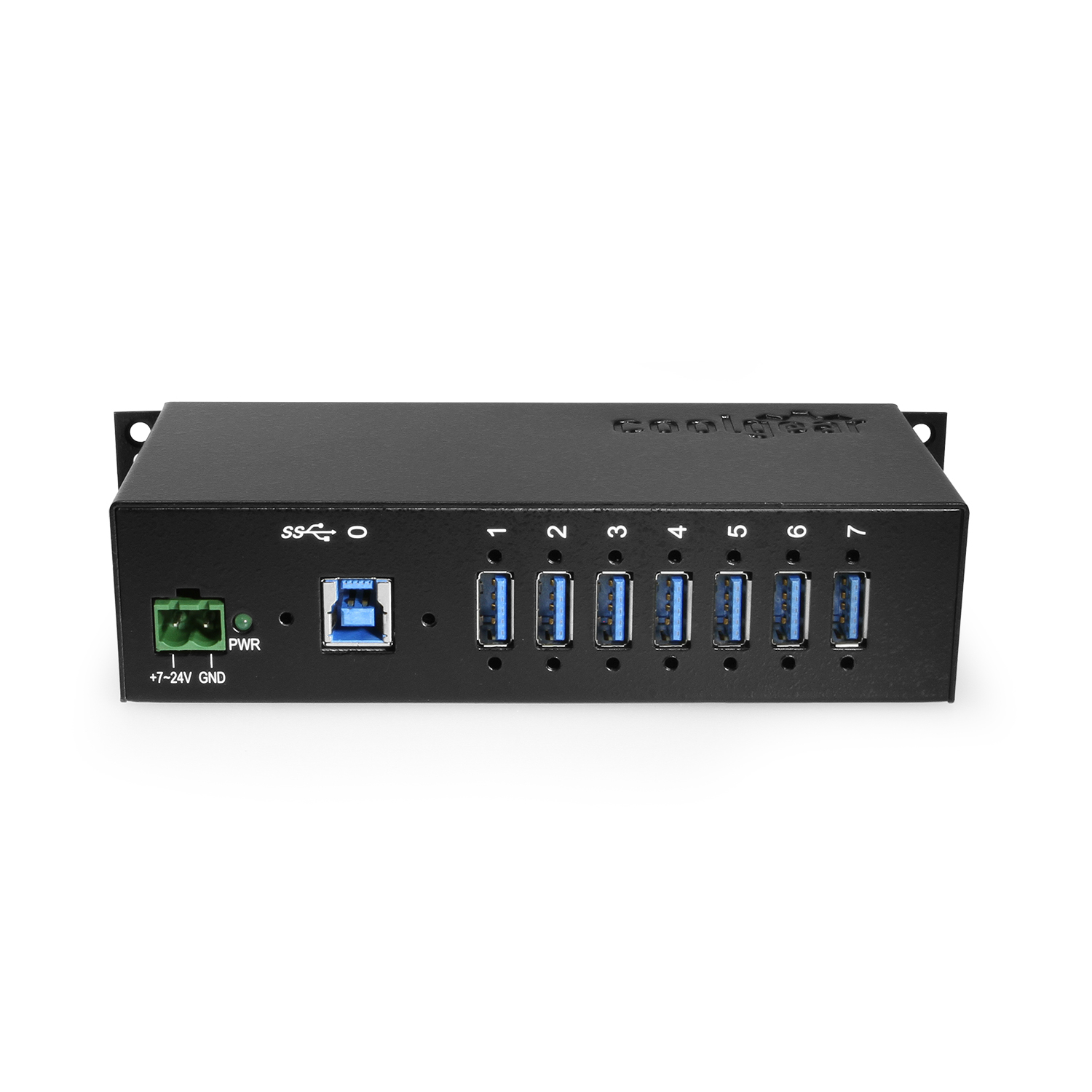

The USBG-7U3ML is an USB 3.2 Gen 1 Hub that complies with the Universal Serial Bus 3.2 Gen 1 (USB 3.2 Gen 1) Specifications Revision 1.0 and work up to 5Gbps. It provides 7 downstream facing ports with standard Type-A USB 3.2 Gen 1 connectors. It supports screw lock features for both upstream (USB type B) and downstream (USB type A) connectors with the screw lock USB cables. It prevents from disconnecting the USB cables accidently.

With built-in single chip USB 3.2 Gen 1 controller, it works backward compatible either when any one of downstream port is connected to an USB1.1 or USB2.0 compliant device, or when the upstream port is connected to a USB1.1 or USB 3.2 Gen 1 compliant host.

The USBG-7U3ML also provides an unique feature to work in the bus-powered mode without an external AC power adapter. It’s very convenient for light power consumption USB devices to work in this mode without an extra power supply. Only plug then go ahead. Besides, the external DC jack is used for self-powered mode if you need more power on the 7 downstream ports.

Since the USB is the most popular external port for the devices to connect to PCs, the USBG-7u3ml provides an ideal solution to expand your USB ports immediately and save your investment.

Specifications

System: For Systems with USB 3.2 Gen 1, USB 2.0 or USB1.1 Ports

• USB 3.2 Gen 1 ports
• Provides 7 USB 3.2 Gen 1 downstream ports which managing up to 5Gbps
• Compliant with USB 3.2 Gen 1 Specifications Revision 1.0
• Provides 7 Downstream Facing Ports for Super-speed, High-speed, Full-speed and Low-speed traffic
• 1 Upstream Port for Super-speed, High-speed and Full-speed traffic
• Supports 5Gbps, 480Mbps, 12Mbps and 1.5Mbps Speed
• Supports USB Screw-lock Mechanism for Secure Cable Connection
• Supports Self-powered and Bus-powered Mode
• Supports up to 1.5A USB Bus Power for Each Down-stream Port
• Supports Downstream Port Status with LED

USB Devices

Supports keyboard, mouse, monitor, scanner, printer, PC Camera, telephone, CD-ROM drive, Pen-drives, SATA enclosures, joystick, virtual reality helmet, modem, PBX and many more

I/O Hardware

• Supports 7 external USB 3.2 Gen 1 Type-A connectors and 1 Type-B Upstream connector, supports screw lock features with screw lock type cables
• Supports 1 DC Jack and 1 2-pin Terminal Blocks for external power input

*Surface Mounting screws not included

Form Factor

5.68"(L)x2.55"(W)x1.43"(H)

NOTE: CABLES NOT INCLUDED, please see our cable category for Screw Lock USB Cables
