USB 2.0 Audio Adapter Box with Line Input and Mic Input

Part # USBG-AUD3

Product Rating:

(8 reviews)

$43.98

Status: Available

Just Plug-and-Play, no drivers are necessary and the device is self-powered.
Connect recording microphones, gaming headsets, speakers, and more!
Save the costs required to replace a failed sound card.
The device is fully compatible with Windows 10, 8, and 7.
3ft. Cable length.

Compatibility

USB 2.0 Audio Adapter Box with Line Input and Mic Input

Part # USBG-AUD3

Product Rating:

4.5 out of 5 stars

Compatibility

Overview Help Support

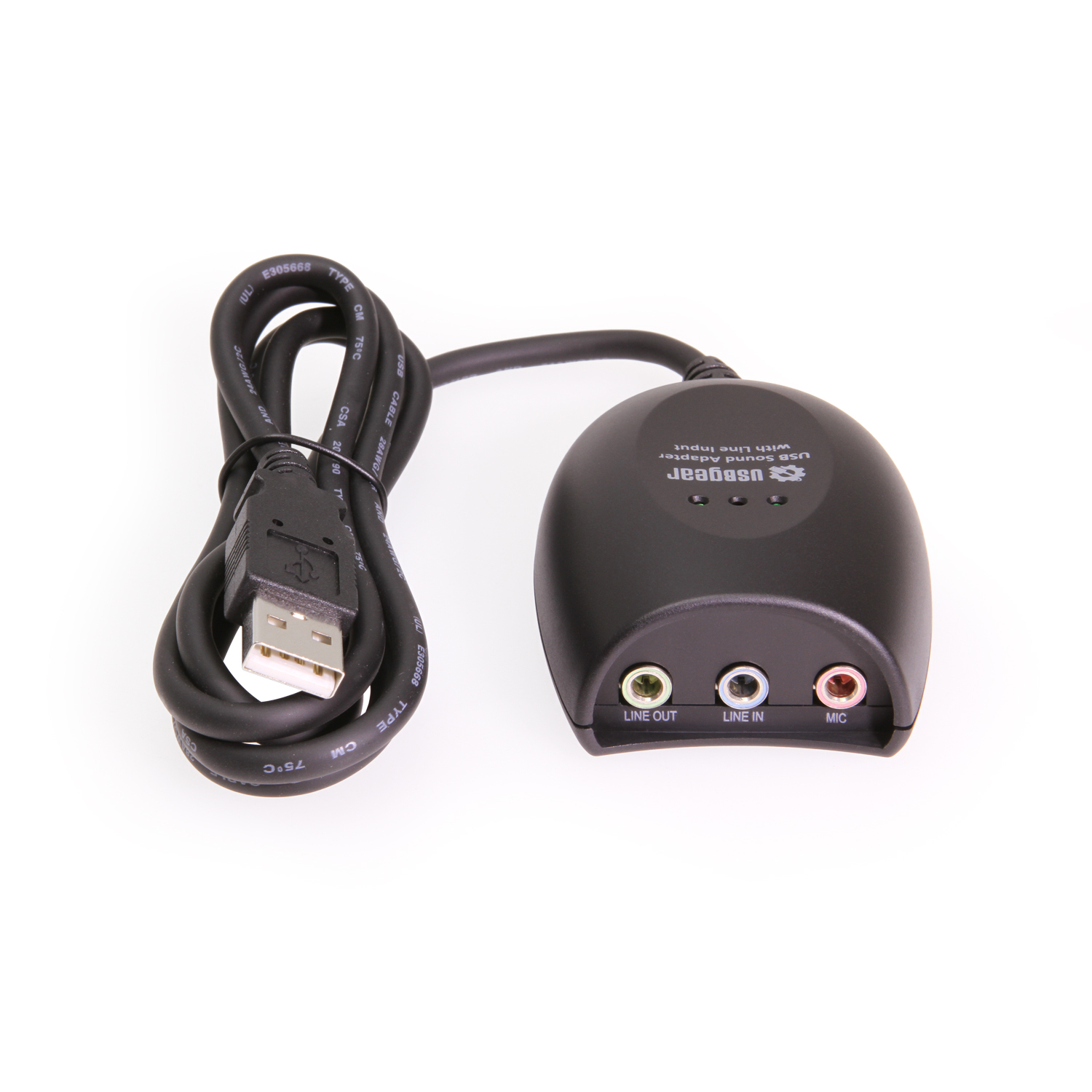

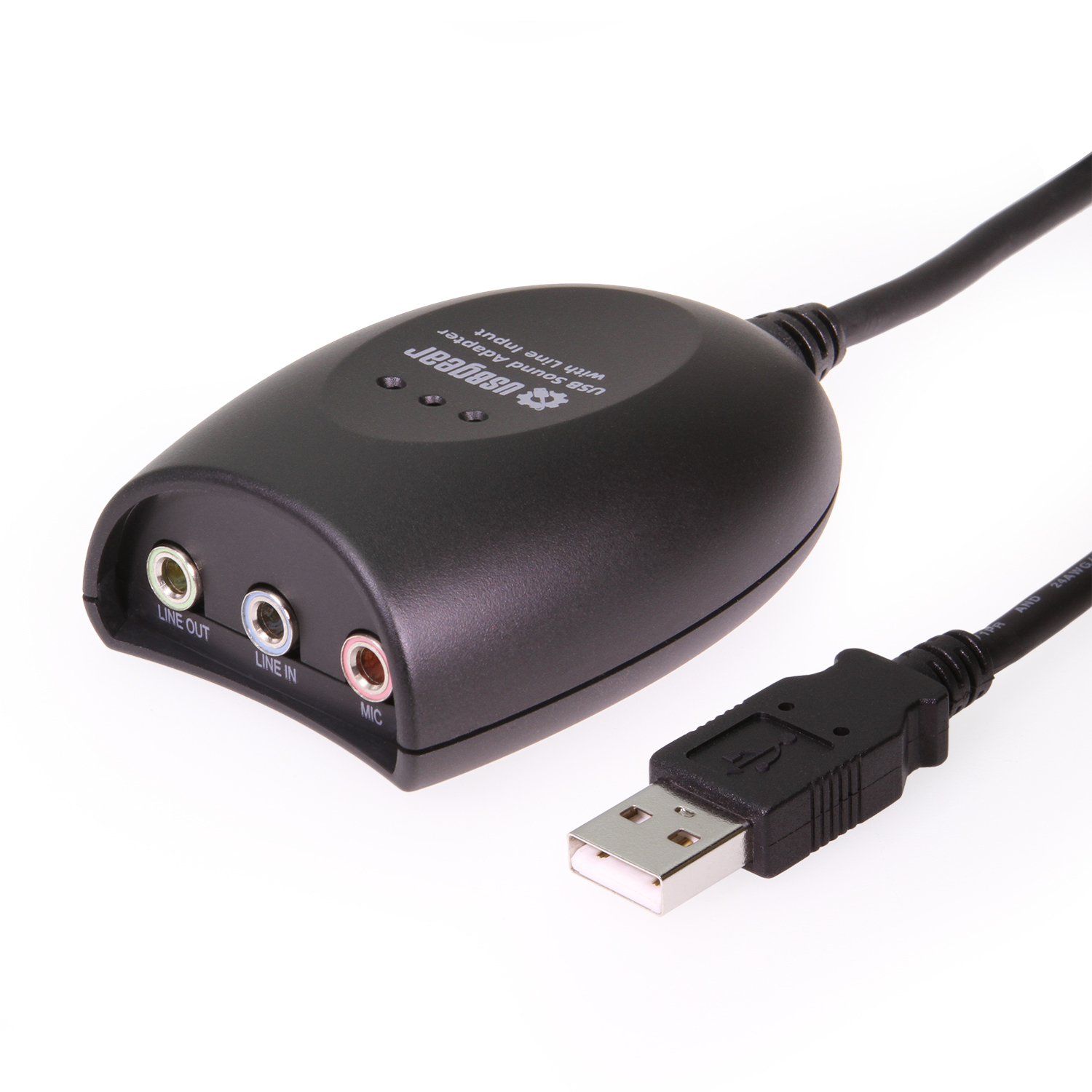

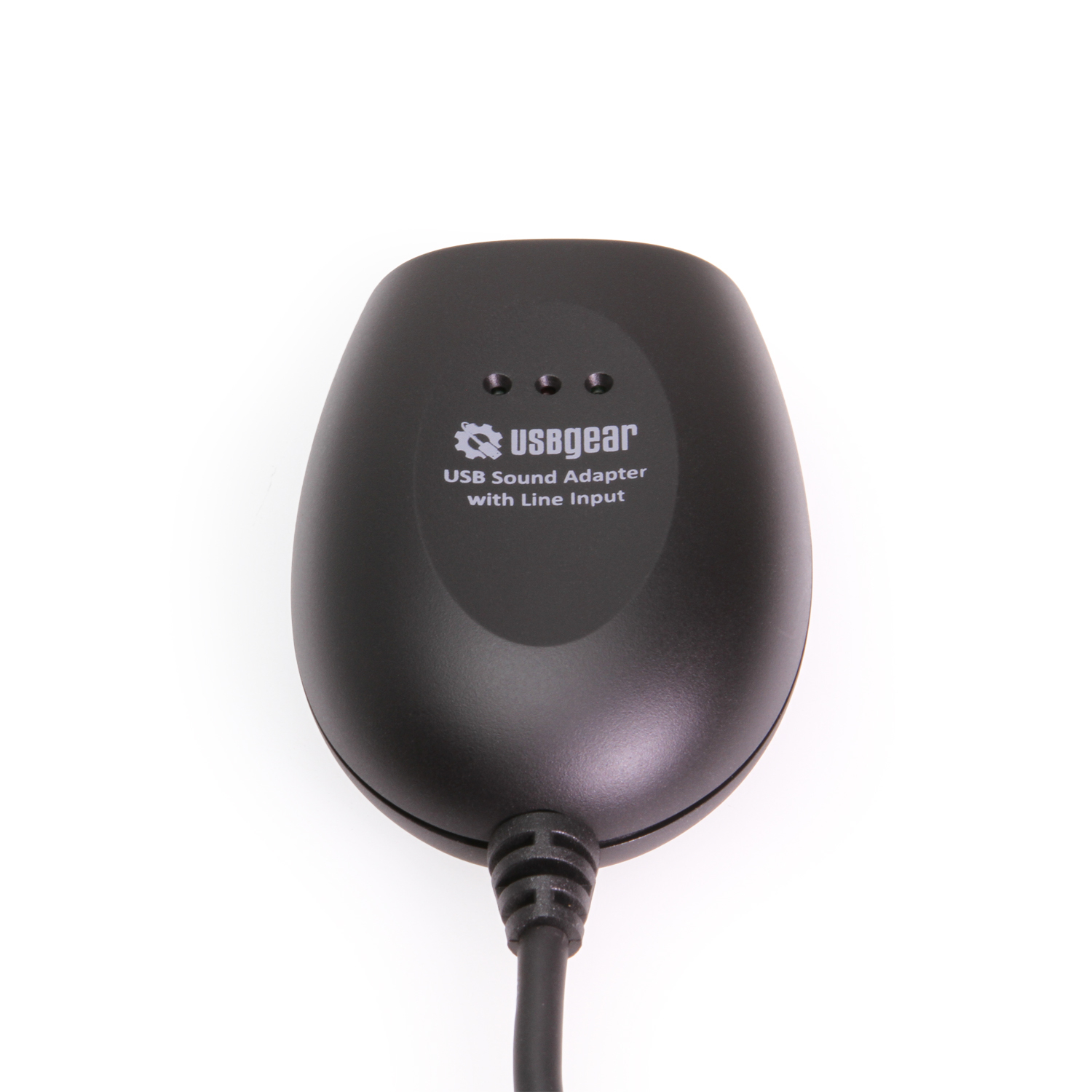

USBGear USB 2.0 Audio Adapter Box with Line Input and Mic Input

USBGear's USB Sound Adapter External USB Sound Card includes a Line-Input, Speaker Output, and Mic Input. Compliant with USB audio device class Specification 1.1, the adapter provides full-duplex playback/recording audio stream, no need for a sound card in your laptop or PC. Save the costs required to replace a failed sound card.

Features:

Just Plug-and-Play, no drivers are necessary and the device is self-powered.

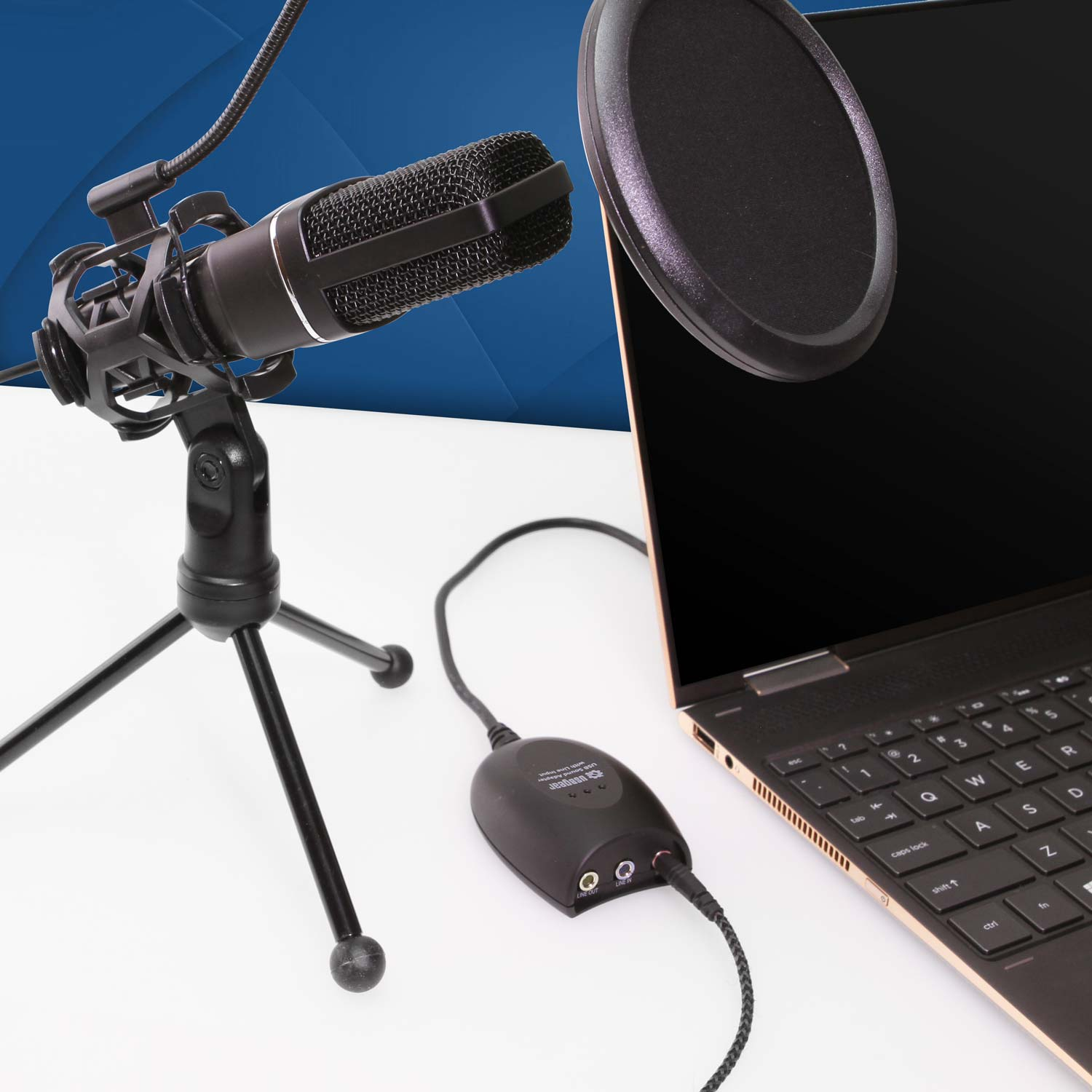

Connect recording microphones, gaming headsets, speakers, and more!
The device is fully compatible with Windows 10, 8, and 7.

Specifications:

Fully compliant with USB 2.0 and 1.1 specification
Adaptive mode for isochronous transfer
16-bit stereo and monaural USB Audio Data stream Acceptable
Analog Performance (at VCC = 5 V):
DYR: 100dB (TYP)
THD+N: 0.004 %
Sampling rate (fs): 32, 44.1, 48 kHz
On chip USB Interface with 12Mbps full- speed transceiver & clock generator with single 12MHz clock source
Soft Mute & Suspend Flag
With SP , MIC , Line / in I/O
Full-duplex playback/ recording audio stream without sound card in PC

Sometimes you need a product in a flash and just want to verify an item is in stock. Other times you have a specific question regarding a product, shipping method, or your order. Use the form below and we will help. Please refrain from spam, we only log this information to our database for 24-hours and then it's gone.

Specifications

Manufacturer:	USBGear	Warranty:	ONE YEAR	Availability:	Available
Barcode:	736983900470	Ship Weight:	0.21	Condition:	New
Part Number:	USBG-AUD3	Color:	Silver	Length/Size:	3ft

Specifications

Manufacturer:	USBGear
Barcode:	736983900470
Part Number:	USBG-AUD3
Warranty:	ONE YEAR
Ship Weight:	0.21
Color:	Silver
Availability:	Available
Condition:	New

User Reviews

Product Rating:

(8 reviews)

4.5 out of 5 stars

LAST 4 REVIEWS

VIEW ALL REVIEWS

Product Rating:

4.3 out of 5 stars

Thumbs up.

By: Chick on 12/03/2022

I had to search for new drivers to make this work with Audacity.

Product Rating:

3 out of 5 stars

High Hopes, but unstable and muddy

By: Mel on 07/06/2022

I wish I liked this, but it really didn't work well. The computer frequently wouldn't have audio input or output available. I tried multiple USB ports on the computer, and it made no difference. I'd have to go through the process of rebooting, troubleshooting audio issues, or reinstalling the drivers every 3-4 days (if not more frequently). When I did have audio it was very thin and there was a bit of "digital mud" present in all audio that went through this device.I swapped this with the Sabrent USB External Sound Adapter (item # B00IRVQ0F8) and the audio input/output is clear, stable, and I have had no need to troubleshoot audio issues or reinstall audio drivers. The one downside is that means I only have mono input, but for my use, it's not going to be an issue.

Product Rating:

4.3 out of 5 stars

Needs Documentation!!

By: Bill on 03/28/2022

Although connection is simple, the documentation is lacking. It would be great to know what the LEDs mean and what the USB power requirements are. The unit did not work when connected to a new laptop. It did work when connected to the laptop via a powered USB hub. It seems that the unit required more power than the laptop USB port was able to supply. It was able to work with a desktop PC without a separate powered USB hub. This is not the fault of the adapter unit but, again, should have been addressed in documentation or specifications. Once we got that sorted, the unit worked very well.

Product Rating:

5 out of 5 stars

Not good for MACS!!!

By: Carl Rosenberg on 03/13/2022

If you plan on using this for a MAC, you have another thing comin'! This works best on Windows. For some reasons, Windows recognizes the line input as a 2nd mic input for some reasons but still functions fine. There are other solutions out there but this one is ok for Windows.
